$1.96

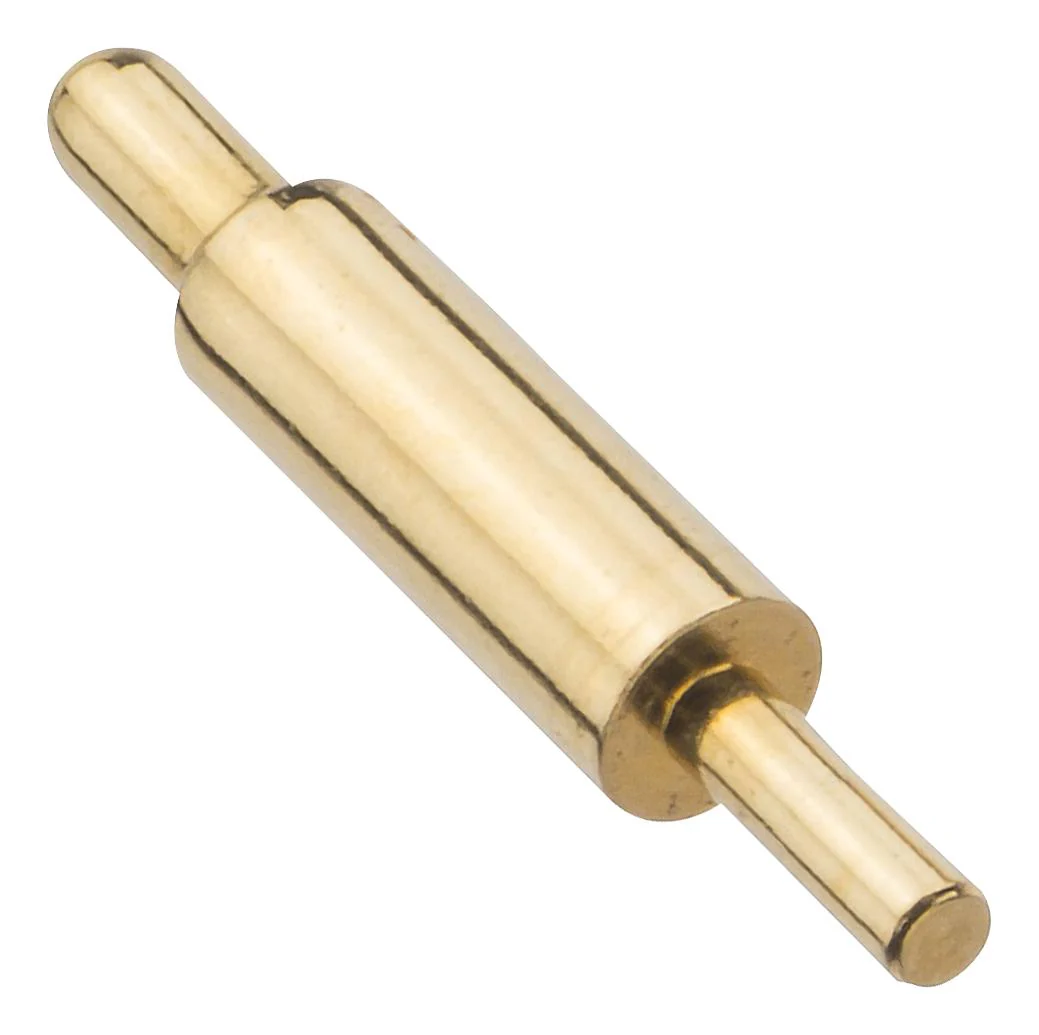

Harwin P70-2300045R P70-2300045R Contact Connector Peg SMT Spring Loaded Pin Point 2 A 6.2 mm—
$1.96
The Story
P70-2300045R is an individual SMT spring loaded Pogo pin with peg. It mates with any contact surface, or surface mount contact pads S70 series.
- Surface mount with location peg or PC tail mounting
- 6.2mm free height and 4.9mm working height
- Gold finish on contact area and termination
- Operating temperature range from -40 to 85°C
- 2A current rating
- 30mohm maximum contact resistance
- Brass body
Product details
| Connector Type | Spring Loaded Pin |
| Centreline Spacing | - |
| Connector Tip Style | Point |
| Current Rating | 2A |
| Overall Length | 6.2mm |
| Spring Force Initial | - |
| Spring Force Working Travel | - |
| Product Range | - |
Other details
| Brand | HARWIN |
| Part Number | P70-2300045R |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
