$1.29

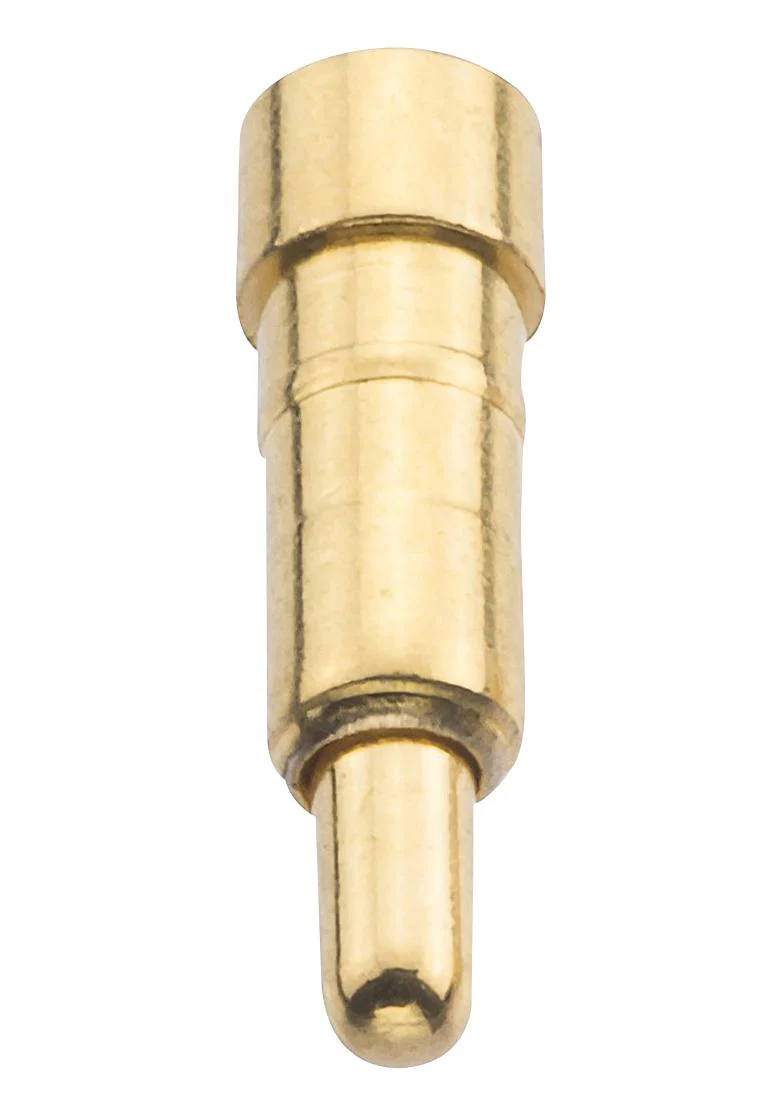

Harwin P70-1100045R P70-1100045R Contact Connector SMT Spring Loaded Pin Point 2 A 6.3 mm—
$1.29
The Story
The P70-1100045R from Harwin is a surface mount single spring loaded contact. It can also refer as pogo pins and it is used for individual contacts or irregular layout requirements. This spring loaded contact mates with any contact surface or S70 series SMT contact pads. It has gold finish for improved wear resistance.
- 6.3mm free height
- Contact gender is female/spring contact
- Vertical connector orientation
- Spring force of 1.23N ±0.34N at 5mm working height
- Current rating of 2A
- Operating temperature range from -40°C to +85°C
- Maximum soldering temperature of 260°C for 10seconds
Product details
| Connector Type | Spring Loaded Pin |
| Centreline Spacing | - |
| Connector Tip Style | Point |
| Current Rating | 2A |
| Overall Length | 6.3mm |
| Spring Force Initial | - |
| Spring Force Working Travel | - |
| Product Range | - |
Other details
| Brand | HARWIN |
| Part Number | P70-1100045R |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
