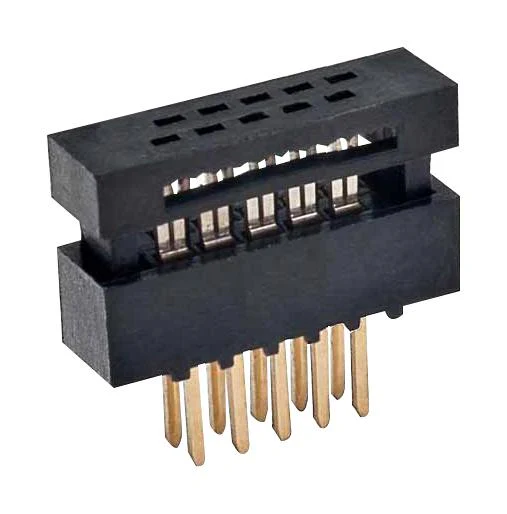

Harwin M50-3800542 M50-3800542 IDC Connector Transition Board In 1.27 mm 2 Row 10 Contacts—
$5.89
The Story
The M50-3800542 is a 10-contact 2-row 1.27mm male Wire-to-board IDC Connector with gold plated phosphor bronze contacts, 100% tin over nickel plated termination and black UL94V-0 PBT housing. The M50 series plug has angled connector orientation and cable connector connection type. It is suitable for use with 0.4mm square mating pin size, 0.635mm pitch ribbon cable, 30AWG ribbon cable.
- 0.5A Current rating
- 20mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 1000VACrms for one minute Withstanding voltage
Commercial, Industrial
Other details
| Brand | HARWIN |
| Part Number | M50-3800542 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
