-70%HARWIN M50-3302542 Wire-To-Board Connector, 1.27 mm, 50 Contacts, Receptacle, M50 Series, IDC / IDT, 2 Rows—
$7.83
$2.35The Story

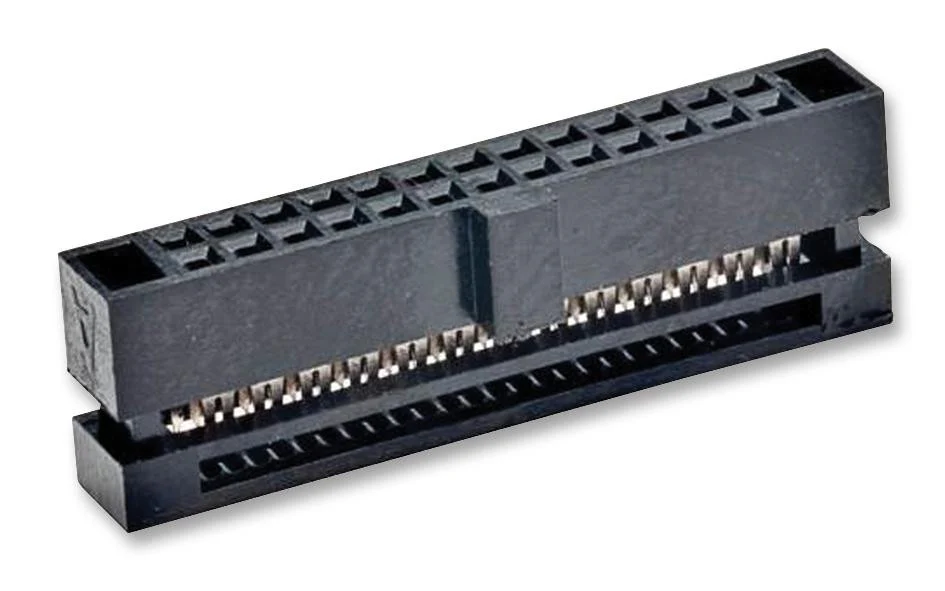

The M50-3302542 is a 50-contact 2-row 1.27mm female Wire-to-board IDC Receptacle with gold plated phosphor bronze contacts, 100% tin over nickel plated termination and black UL94V-0 PBT housing. The M50 series connector has angled connector orientation and cable connector connection type. It is suitable for use with 0.4mm square mating pin size and 0.635mm pitch ribbon cable.
- 1A Current rating
- 20mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 1000VACrms for one minute Withstanding voltage
Applications
Commercial, Industrial
Product details
| No. of Contacts | 50Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | M50 Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | IDC / IDT |
| Pitch Spacing | 1.27mm |
| No. of Rows | 2Rows |
Other details
| Brand | HARWIN |
| Part Number | M50-3302542 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
