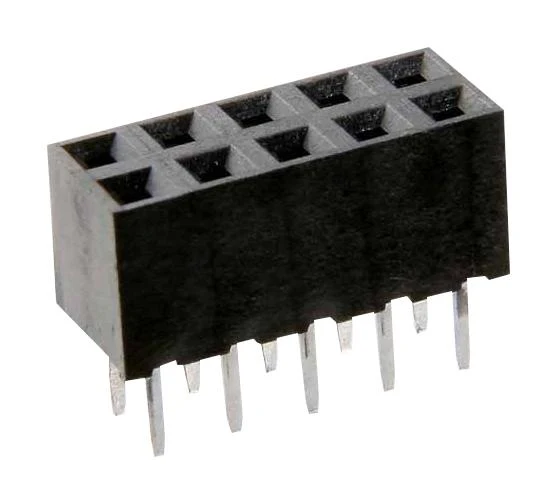

-70%Harwin M22-7140542 M22-7140542 PCB Receptacle Board-to-Board 2 mm Rows 10 Contacts Through Hole Mount M22—
$2.61
$0.78The Story
The M22-7140542 is a 10-contact 2mm female DIL Board-to-board Socket with gold plated phosphor bronze contacts, 100% tin over nickel plated termination and black UL94V-0 LCP housing. The M22 series receptacle has solder tails, vertical connector orientation, PC tail/through board connection type and top entry style. It is suitable for use with 0.5mm square mating pin size. Suitable for interconnecting board to board.
- 2A AC/DC Current rating
- 20mR Maximum contact resistance
- 5000MR Minimum insulation resistance
- 500V AC for one minute Dielectric withstand
Commercial, Industrial
Other details
| Brand | HARWIN |
| Part Number | M22-7140542 |
| Quantity | Each |
| 3D Product Image EN |  |
| Manufacturer Catalogue EN | |
| Product Change Notice EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The M22-7140542 is a 10-contact 2mm female DIL Board-to-board Socket with gold plated phosphor bronze contacts, 100% tin over nickel plated termination and black UL94V-0 LCP housing. The M22 series receptacle has solder tails, vertical connector orientation, PC tail/through board connection type and top entry style. It is suitable for use with 0.5mm square mating pin size. Suitable for interconnecting board to board.
- 2A AC/DC Current rating
- 20mR Maximum contact resistance
- 5000MR Minimum insulation resistance
- 500V AC for one minute Dielectric withstand
Commercial, Industrial
Other details
| Brand | HARWIN |
| Part Number | M22-7140542 |
| Quantity | Each |
| 3D Product Image EN | |
| Manufacturer Catalogue EN | |
| Product Change Notice EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
