Hanwha Techwin PNB-A6001 Overview
Monitor a room or hallway with the black PNB-A6001 2MP Network Box Camera (No Lens) from Hanwha Techwin. Featuring a C/CS lens mount, this unit has a 1/2" CMOS sensor to capture 1080p resolution video at up to 120 fps. Two-way audio is possible thanks to a built-in microphone, an audio input, and an audio output. Dual memory card slots support microSD/SDHC/SDXC cards for a total storage capacity of 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This NDAA-certified box camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
IR cut filter for day and night functionality
C/CS lens mount
H.265, H.264, and MJPEG video compressions
WiseStream II and WiseStream III support
Unicast and multicast streaming
Up to six users in unicast mode
CBR and VBR
Electronic shutter speed
Simple focus
Lens distortion correction
Digital image stabilization with built-in gyro sensor
BLC, 120 dB WDR, and SSDR
Digital noise reduction (SSNR, WiseNR ?)
Gain control
Adjustable white balance
Privacy masking for up to six rectangular zones
Flip, mirror, and hallway view (90/270°) video rotation
1000M Ethernet port
Built-in microphone, audio input, and audio output
Analytics include; object detection & classification (person, face, vehicle, license plate), face mask detection, directional detection, digital auto tracking, enter/exit, loitering, virtual line, social distancing detection, defocus detection, motion detection (8 polygonal zones), appear/disappear, tampering, audio detection, sound classification, shock detection, people counting, queue management, and heat mapping
Alarm triggers include; analytics, network disconnect, and alarm input
Alarm events include; file upload via FTP and email, notification via email, microSD or NAS recording at event triggers, alarm output, handover, and audio playback
Compatible with Wisenet SSM v2.10.8 or later, Genetec plugin v1.0 or later, Milestone plugin v1.0.2 or later, and select NVRs (XRN-6410DB4, XRN-3210B4)
NDAA, FCC, cUL, CE, and EAC certified
In the Box
- Hanwha Techwin PNB-A6001 2MP Network Box Camera (No Lens)
- Mounting Hardware
Hanwha Techwin PNB-A6001 Specs
Camera
| Sensor | 2 MP 1/2" CMOS |
| Lens Mount | C |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.006 Lux B&W: 0.0006 Lux |
| Shutter Speed | 1/12000 to 1/5 Seconds |
Video
| Streaming Resolution | 1920 x 1080 at 120 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 5 Streams |
| Video Output Connectors | 1 x BNC (Composite) |
Audio
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC-LC, G.711, G.726 |
| Built-In Mic | Yes |
Pan & Tilt
| Supported Control Protocols | Pelco-D Pelco-P RS-485 Panasonic Bosch Honeywell Vicon GE |
| Pan/Tilt | None |
Networking
| Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T, SUNAPI (HTTP API), Wisenet Open Platform |
| Analytics | Object Detection & Classification (Person, Face, Vehicle, License Plate), Face Mask Detection, Directional Detection, Digital Auto Tracking, Enter/Exit, Loitering, Virtual Line, Social Distancing Detection, Defocus Detection, Motion Detection (8 Polygonal Zones), Appear/Disappear, Tampering, Audio Detection, Sound Classification, Shock Detection, People Counting, Queue Management, Heat Map |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
Hardware
| Memory | 4096 MB RAM / 512 MB Flash |
| Media/Memory Card Slot | Dual Slot: microSD/microSDHC/microSDXC [512 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
Power
| Power Source | DC, PoE 802.3at (30 W) |
| Power Consumption | DC: 14 W PoE+: 17.5 W |
Environmental
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Storage Temperature | -58 to 140°F / -50 to 60°C |
| Operating Humidity | 0 to 90% |
General

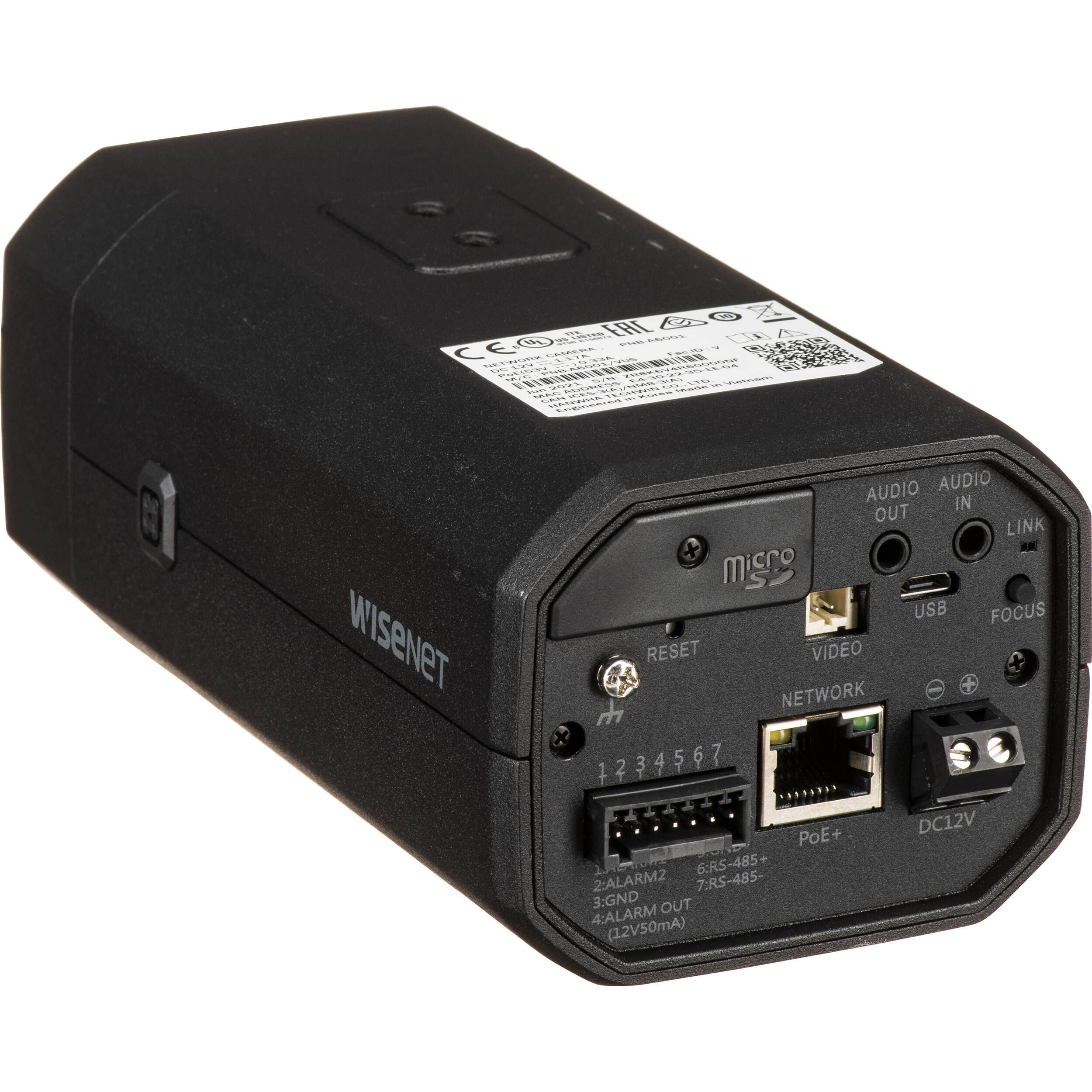

| Inputs/Outputs | 1 x RJ45 1 x Power 1 x BNC 1 x Micro-USB 1 x Serial 9-Pin (RS-485) |
| Video Management Software | Wisenet SSM (v2.10.8 or Later) |
| Supported Languages | Czech Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Turkish |
| Material of Construction | Aluminum |
| Dimensions | H: 2.6 x W: 3.2 x L: 6.5" / H: 67.0 x W: 81.0 x L: 165.0 mm |
| Weight | 1.94 lb / 0.88 kg |
Packaging Info
| Package Weight | 2.35 lb |
| Box Dimensions (LxWxH) | 9.8 x 5.7 x 4" |
