Grace Design m303 Active Direct Box
HomeStore

Grace Design m303 Active Direct Box

Grace Design m303 Active Direct Box

$159.82

Original: $532.72

-70%
Grace Design m303 Active Direct Box—

$532.72

$159.82

The Story

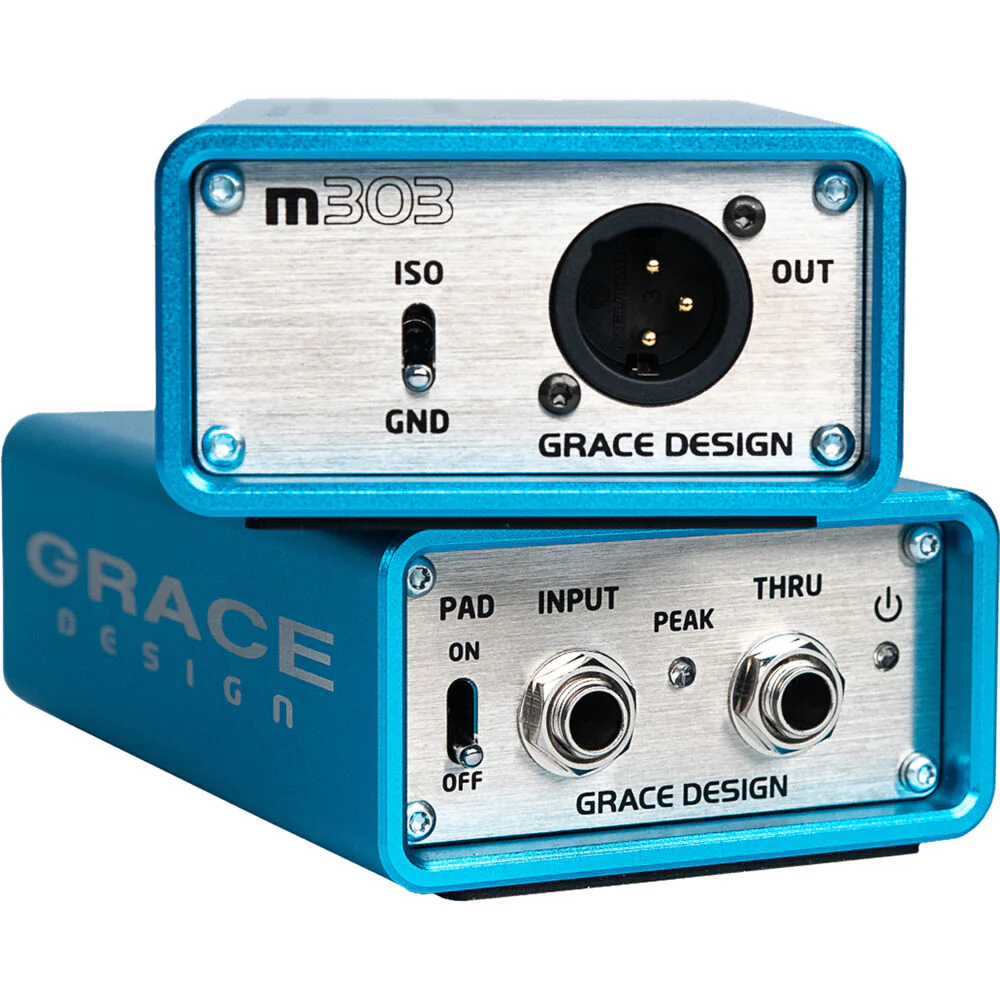

Grace Design m303 Overview

Deliver ultraquiet, interference-free DI performance for musicians in studios or on stage with the m303 from Grace Design, an active, phantom-powered DI box with true galvanic isolation for complete ESD and RFI protection. Featuring a custom-wound Lundahl transformer, the m303 offers pro-quality audio with superior bass response.

The m303 provides ultralow distortion and noise with a wide frequency bandwidth (20 Hz to 80 kHz) and dynamic range. The high-impedance 1/4" input supports any line-level source as well as instruments with passive pickups. The DI box features a balanced XLR output and a 1/4" thru connector for diverting your signal to an amp or other destination. The m303 sports a switchable -13 dB input pad for overly hot signals and LED indicators for peak and power. And with a durable extruded aluminum chassis made in the USA, the m303 is built to stand the test of time.

Custom Lundahl Transformer
The custom-wound Lundahl transformer is a unique feature that gives the m303 an edge against many competing DI boxes. The transformer is magnetically shielded and features a high-nickel core. This high level of nickel content increases magnetic permeability, resulting in higher primary inductance, and therefore, better low-frequency response. The unit also draws phantom power very efficiently, drawing only 4mA of current.
Superior Audio Performance
Along with excellent low-end clarity and high-frequency detail, the m303 also features very low distortion, ultralow noise, and an exceptionally wide spectral bandwidth. The wide dynamic range of 124 dB and low-frequency headroom also ensure that every ounce of your signal makes it to its destination intact.
Built to Last
The m303 is built in the USA and constructed from extruded aluminum with a 1/4" wall. This design is very rugged and will resist impacts, temperature, and EM interference. The connectors are recessed for extra safety, and the toggle switches use high-quality gold contacts for resistance to corrosion.
UPC: 823821003032

Items Included

  • Grace Design m303 Active Direct Box
  • Limited 5-Year Manufacturer Warranty

Additional Resources

No additional resources available

Grace Design m303 Specs

General
Item Type
Standard DI
Number of Channels
Single-Channel
Active/Passive
Active
Circuitry
Solid-State
Pad
-13 dB
Ground Lift
Yes
Polarity Reverse
No
Low-Cut/High-Pass Filter
No
Connectivity
Audio I/O
1x 1/4" TS Unbalanced Instrument Input
1x 1/4" TS Unbalanced Instrument Thru
1x XLR 3-Pin Balanced Line Output
Performance
Frequency Response
20 Hz to 80 kHz
Input Impedance
1 Megohm
Total Harmonic Distortion/Noise
0.007% (at 50 Hz)
Signal-to-Noise Ratio
-118 dBu (A-Weighted)
Power
Operating Voltage
48 V
Packaging Info
Package Weight
1.31 lb
Box Dimensions (LxWxH)
7.3 x 4.95 x 2.9"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

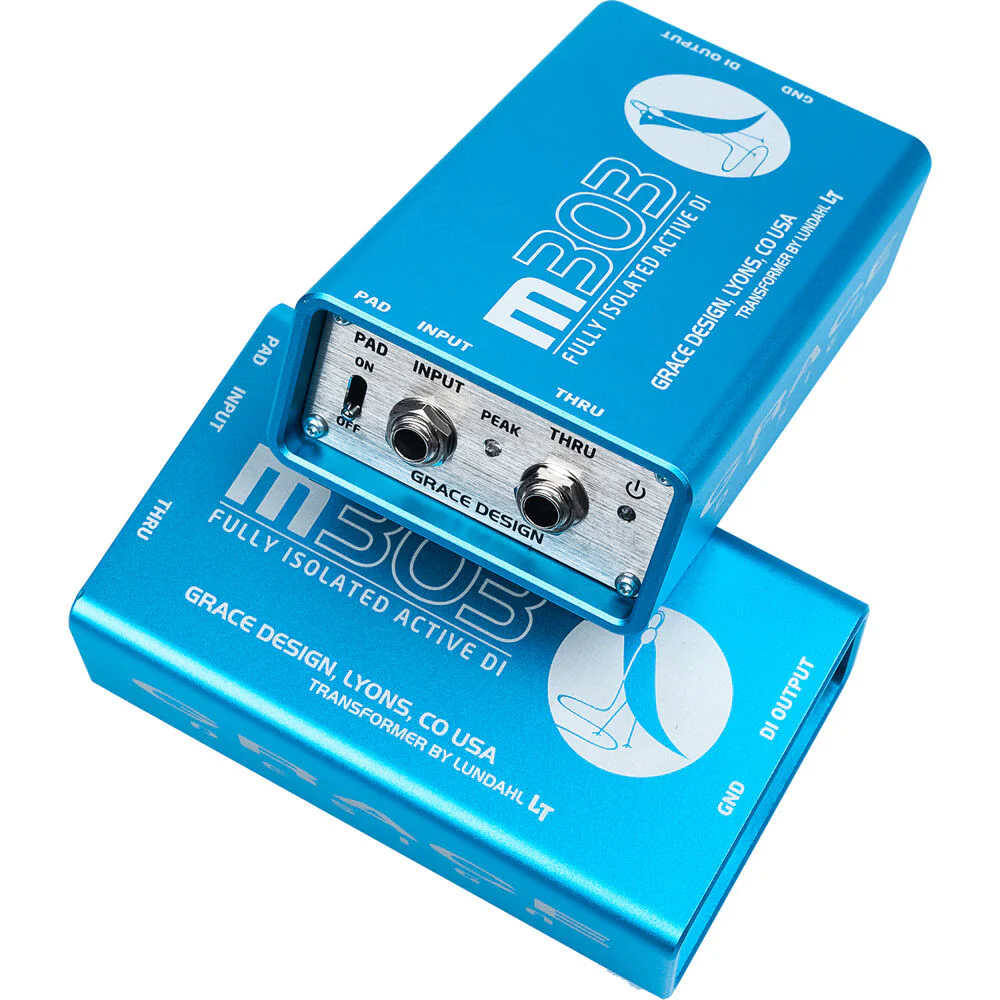

Grace Design m303 Active Direct Box - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

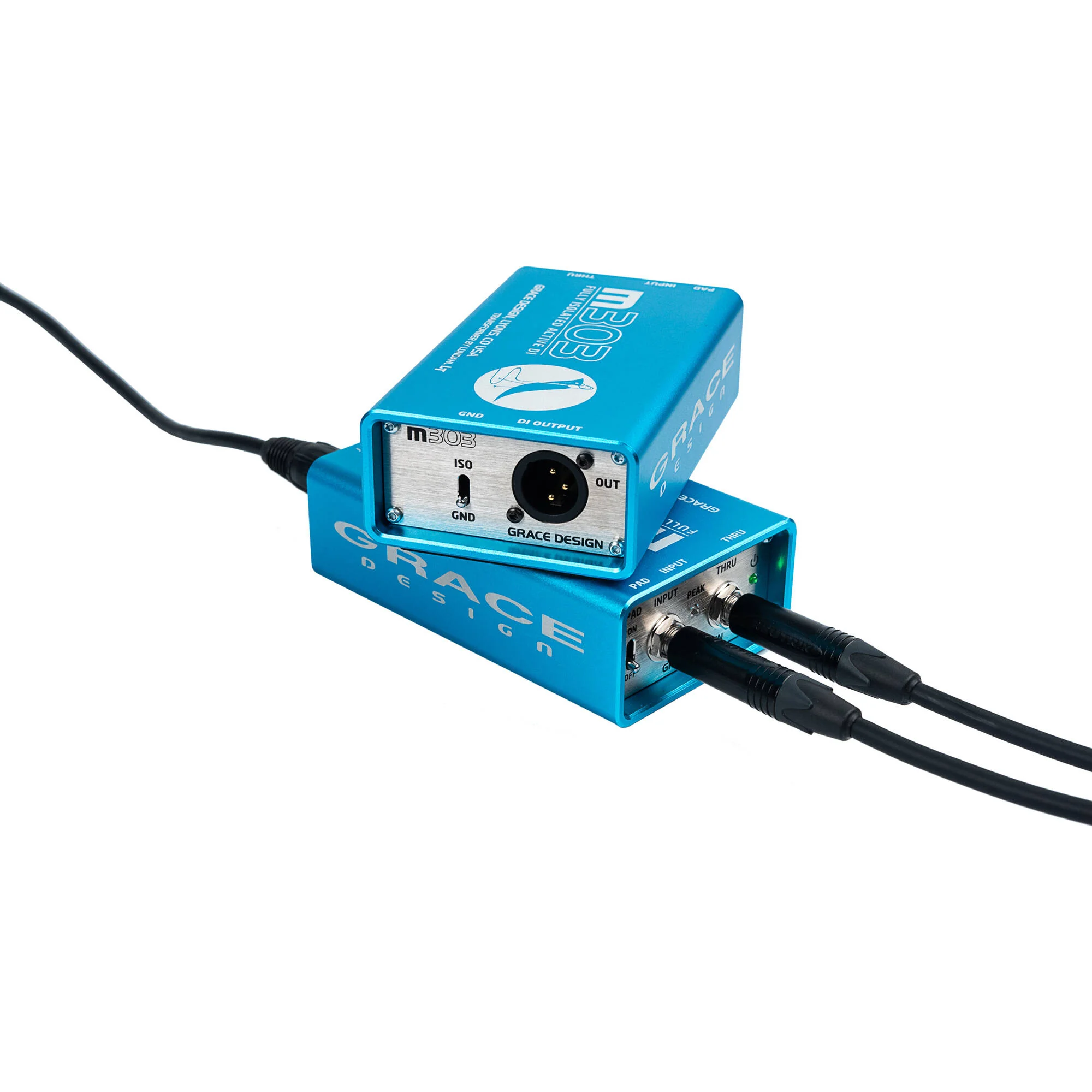

Grace Design m303 Active Direct Box - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

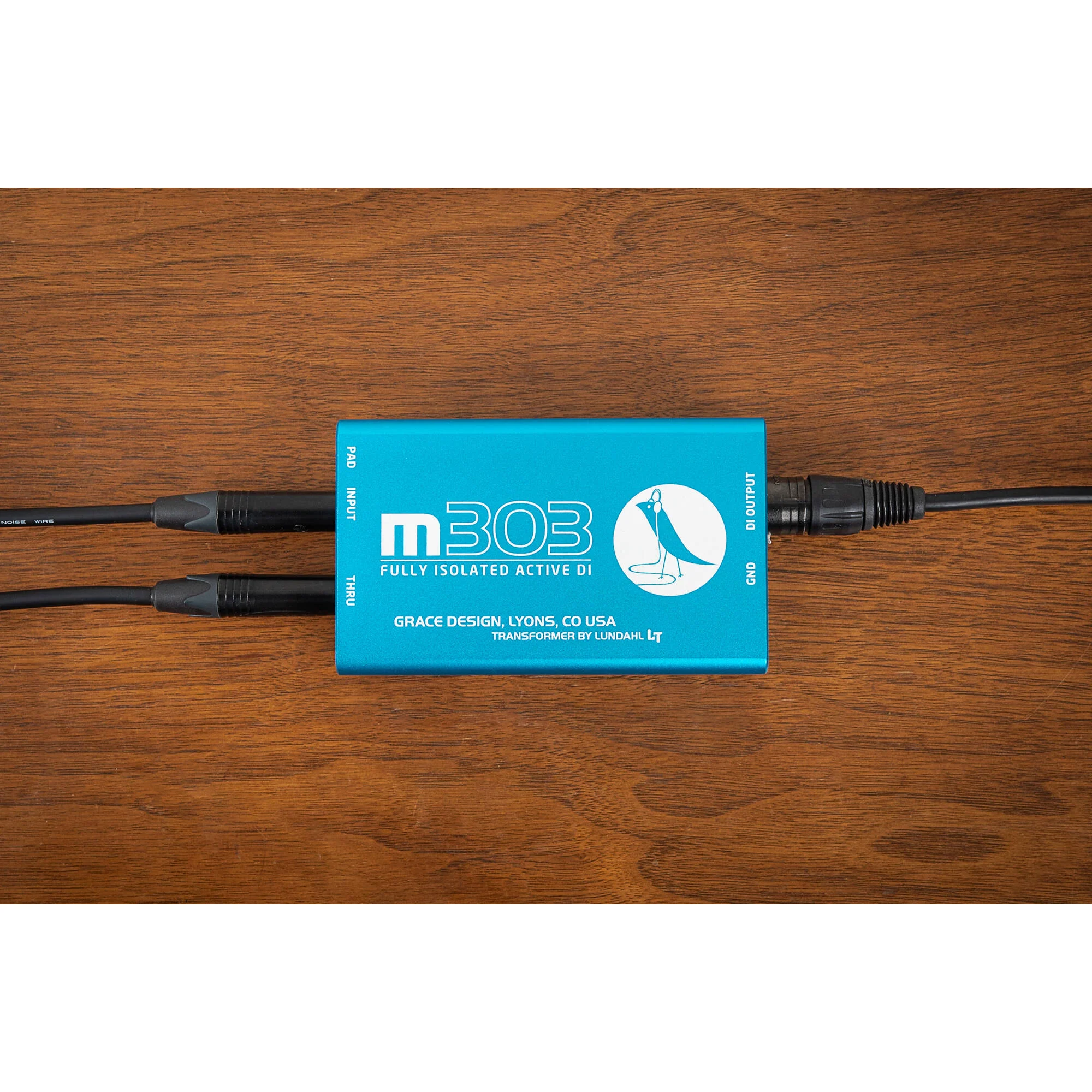

Grace Design m303 Active Direct Box - Image 4
