$300.31
Original: $1,001.03

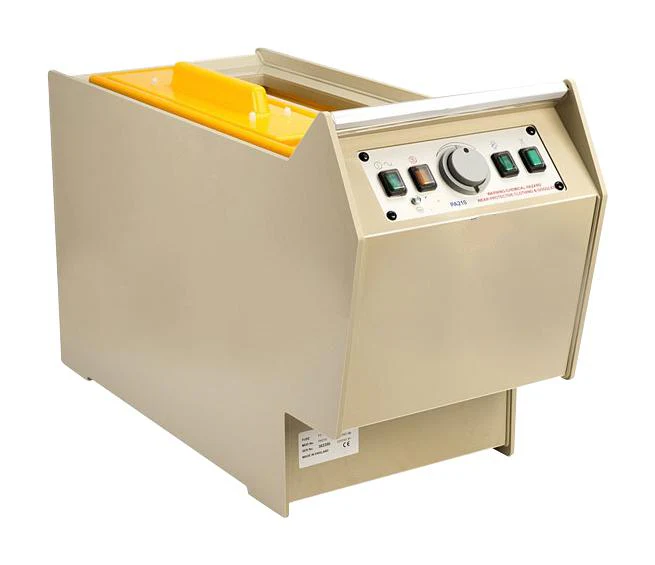

-70%FORTEX PA210 Bubble Etch Tank, 2.25 L, 230 VAC, 150 W, 36 °C to 45 °C, 320 mm x 105 mm x 445 mm—
$1,001.03
$300.31The Story
- Heated bubble etch single tank unit
- Slim acrylic glass tank
- Diaphragm pump and air curtain tube for providing tiny air bubble
- 150W glass heater, continuous adjustment of temperature, temperature range +36 to +45°C
- Adjustable PCB holder for mounting circuit boards of various size
- Glass thermometer to display temperature of liquid, plastic trip tray
- Suitable for use with fine etch crystals (sodium persulphate) cannot be used with ferric chloride
- Maximum circuit board or panel size PA204 (235mm x 330mm)
Product details
| Tank Type: Processing Tank |
| Operating Temperature Min: 36°C |
| Operating Temperature Max: 45°C |
| Power Rating: 150W |
| Voltage Rating: 230VAC |
| Capacity: 2.25l |
| External Height: 320mm |
| External Width: 105mm |
| External Depth: 445mm |
| Plug Type: - |
Other details
| Brand | FORTEX |
| Part Number | PA210 |
| Quantity | Each |
| Technical Data Sheet EN |  |
