-70%FINDER 56.34.9.024.0000 General Purpose Relay, 56 Series, Power, 4PDT, 24 VDC, 12 A—
$36.51
$10.95The Story

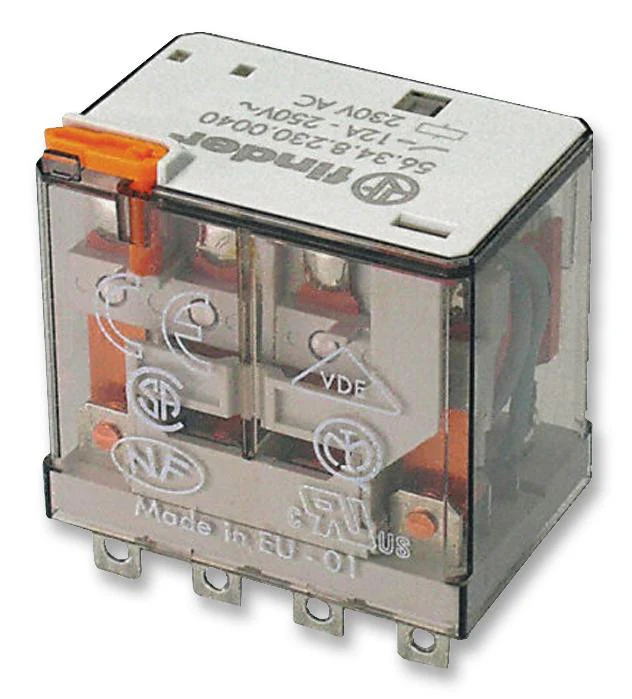

The 56.34.9.024.0000 is a 4-pole Miniature Power Relay with DC coil, 56.34 series. 4CO (4PDT) contact configuration, coil EMC suppression. 96 series sockets, plug-in mount. Lockable test button and mechanical indicator. AgNi, cadmium-free contact. European patent.
- 5kV (1.2/50µs) Isolation, coil contacts
- RT I Environmental protection rating
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Socket |
| Coil Type | - |
| Coil Resistance | 490ohm |
| Product Range | 56 Series |
| Relay Terminals | Quick Connect |
| Contact Current | 12A |
| Approvals & Standards | CE, CSA, UL, VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VDC |
| Contact Configuration | 4PDT |
| Contact Voltage VDC | - |
Other details
| Brand | FINDER |
| Part Number | 56.34.9.024.0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
