$8.35
Original: $27.83
-70%FINDER 56.32.8.024.0000 General Purpose Relay, 56 Series, Power, DPDT, 24 VAC, 12 A—
$27.83
$8.35The Story

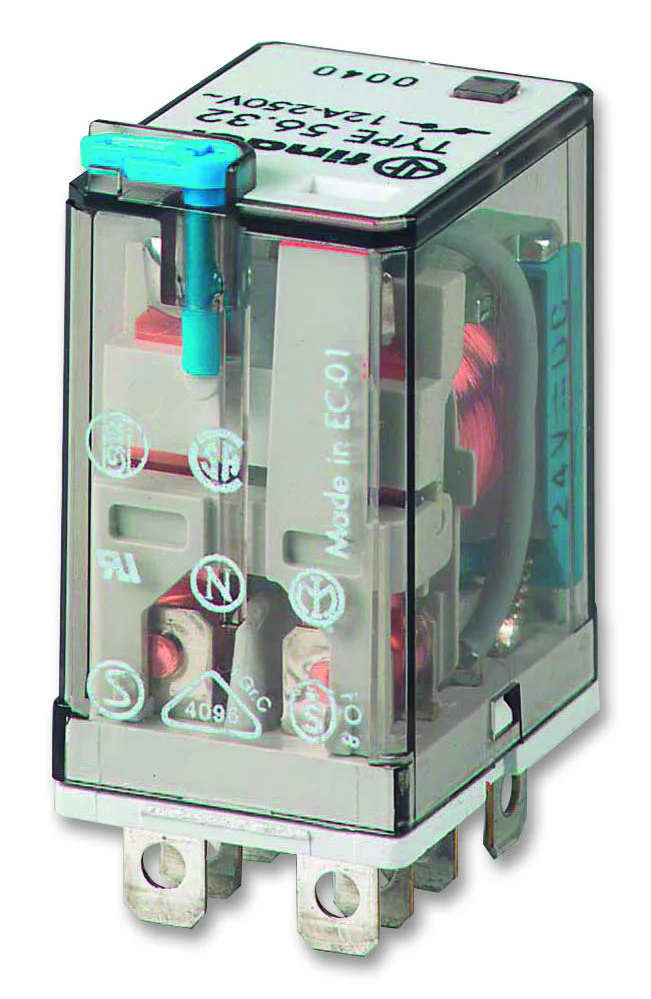

The 56.32.8.024.0000 is a Plug-in mount Miniature Power Relay with AC coil. This 56 series relay has 2CO (DPDT) cadmium-free standard AgNi contacts. Suitable for 96-series sockets and comes with European patent.
- Coil EMC suppression
- Dust-proof RT I standard protection rating
- -40 to 70°C Operating temperature range
Applications
Industrial
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Socket |
| Coil Type | AC |
| Coil Resistance | 190ohm |
| Product Range | 56 Series |
| Relay Terminals | Quick Connect |
| Contact Current | 12A |
| Approvals & Standards | CE, CSA, UL, VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VAC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | 30V |
Other details
| Brand | FINDER |
| Part Number | 56.32.8.024.0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The 56.32.8.024.0000 is a Plug-in mount Miniature Power Relay with AC coil. This 56 series relay has 2CO (DPDT) cadmium-free standard AgNi contacts. Suitable for 96-series sockets and comes with European patent.
- Coil EMC suppression
- Dust-proof RT I standard protection rating
- -40 to 70°C Operating temperature range
Applications
Industrial
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Socket |
| Coil Type | AC |
| Coil Resistance | 190ohm |
| Product Range | 56 Series |
| Relay Terminals | Quick Connect |
| Contact Current | 12A |
| Approvals & Standards | CE, CSA, UL, VDE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VAC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | 30V |
Other details
| Brand | FINDER |
| Part Number | 56.32.8.024.0000 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
