$2.94
Original: $9.79

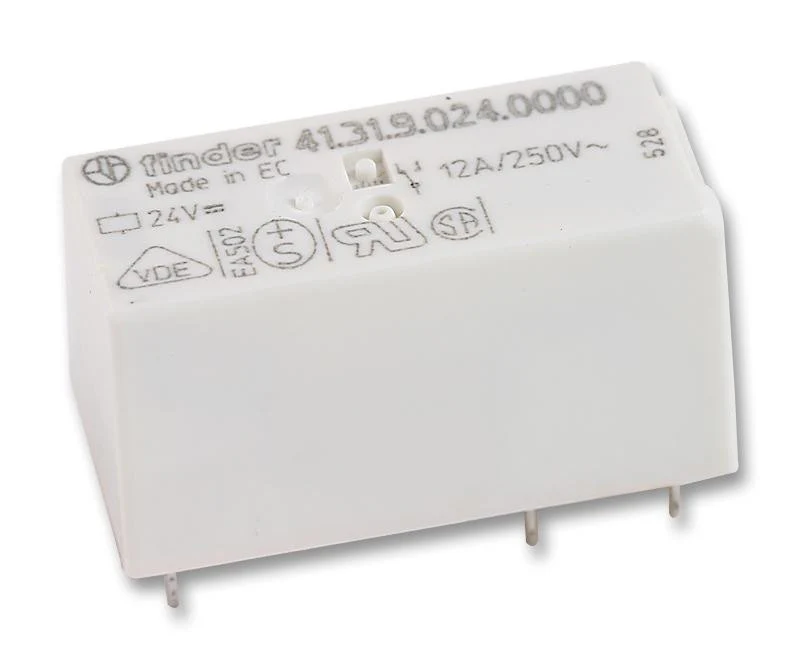

-70%FINDER 41.31.9.024.0010 General Purpose Relay, 41 Series, Power, SPDT, 24 VDC, 12 A—
$9.79
$2.94The Story
The Finder 41 series electromechanical relays are low profile PCB relays. These electromechanical power relays have maximum height of 15.7mm and can be incorporated in miniature equipments. It offers high isolation of 6KV, 8mm creepage and clearance distances between coil and contacts.
- Single pole relays except 41.52 series are available in double pole
- 3.5mm or 5mm contact pin pitch
- SPDT, DPDT contact configuration
- Available in flux proof RT II standard and wash tight RT III version
- Switching capacity of 12A, 16A, 8A at 250VAC
- AC and DC coils available based on ordering
- Cadmium free contact materials
- 35mm rail mount via screw or screwless sockets
- DC coil power of 400mW
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Through Hole |
| Coil Type | - |
| Coil Resistance | 1.44kohm |
| Product Range | 41 Series |
| Relay Terminals | Solder |
| Contact Current | 12A |
| Approvals & Standards | - |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VDC |
| Contact Configuration | SPDT |
| Contact Voltage VDC | - |
Other details
| Brand | FINDER |
| Part Number | 41.31.9.024.0010 |
| Quantity | Each |
| Technical Data Sheet EN |  |
