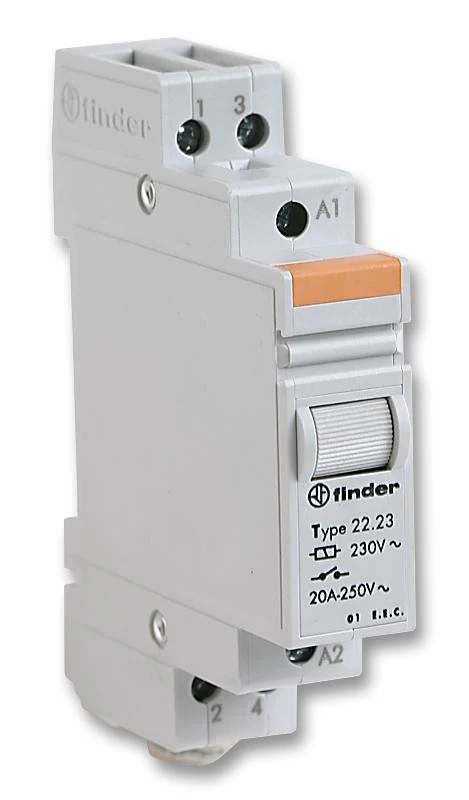

-70%FINDER 22.23.8.024.4000 General Purpose Relay, 22 Series, Power, SPST-NO, SPST-NC, 24 VAC, 20 A—
$54.25
$16.27The Story
The Finder 22 series are modular contactors. The contactors are two or four pole relays with AgNi and AgSnO2 contact material. These AgNi contacts are specifically intended for resistive and inductive loads. AgSnO2 contacts are for lamp and high inrush current loads.
- 35mm wide and 17.5mm wide size relays
- Switching capacity of 25A at 250VAC
- AC and DC coils available based on ordering
- NO contact gap >= 3mm, double break
- Continuous duty for the coil and contacts
- AC/DC silent coil (with varistor protection)
- Protective separation (reinforced insulation) between coil and contacts
- Mechanical and LED indicators as standard
- Auto-on-off selector version available
- AgNi and AgSnO2 contact versions available
Applications
Industrial, Power Management, Automation & Process Control, Motor Drive & Control
Product details
| Contact Material | Silver Tin Oxide |
| Relay Mounting | DIN Rail |
| Coil Type | - |
| Coil Resistance | 41ohm |
| Product Range | 22 Series |
| Relay Terminals | Screw |
| Contact Current | 20A |
| Approvals & Standards | CE |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VAC |
| Contact Configuration | SPST-NO, SPST-NC |
| Contact Voltage VDC | - |
Other details
| Brand | FINDER |
| Part Number | 22.23.8.024.4000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
