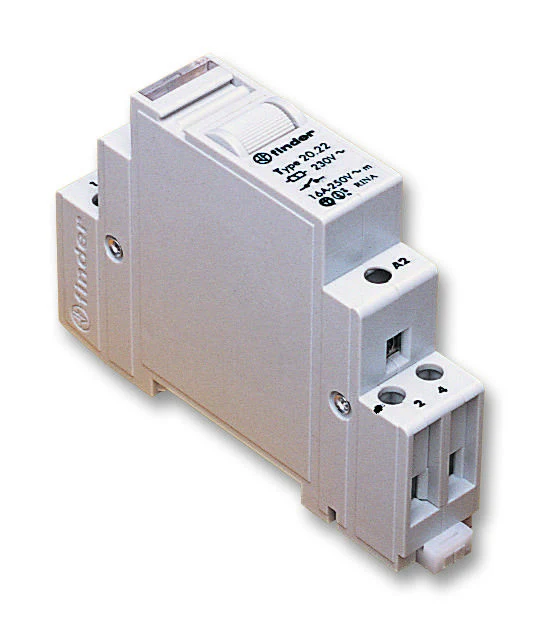

-70%FINDER 20.22.8.230.0000 General Purpose Relay, 20 Series, Power, DPST-NO, 230 VAC, 16 A—
$53.19
$15.96The Story
The Finder 20 series are modular step relays. These electromechanical relays are single or double pole 16A step relays with din rail mounting feature.
- SPST-NO, DPST-NO, SPST-NO+SPST-NC contact configuration
- Switching capacity of 6A at 250VAC
- AC and DC coils available based on ordering
- Test button with mechanical indicators
- 17.4mm wide
- Cadmium free contact material
- DC rated power of 5W
- IP20 Protection category
- 4kV insulation between coil and contacts
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | DIN Rail |
| Coil Type | AC |
| Coil Resistance | 2.5kohm |
| Product Range | 20 Series |
| Relay Terminals | Screw |
| Contact Current | 16A |
| Approvals & Standards | - |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 230VAC |
| Contact Configuration | DPST-NO |
| Contact Voltage VDC | 30V |
Other details
| Brand | FINDER |
| Part Number | 20.22.8.230.0000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
