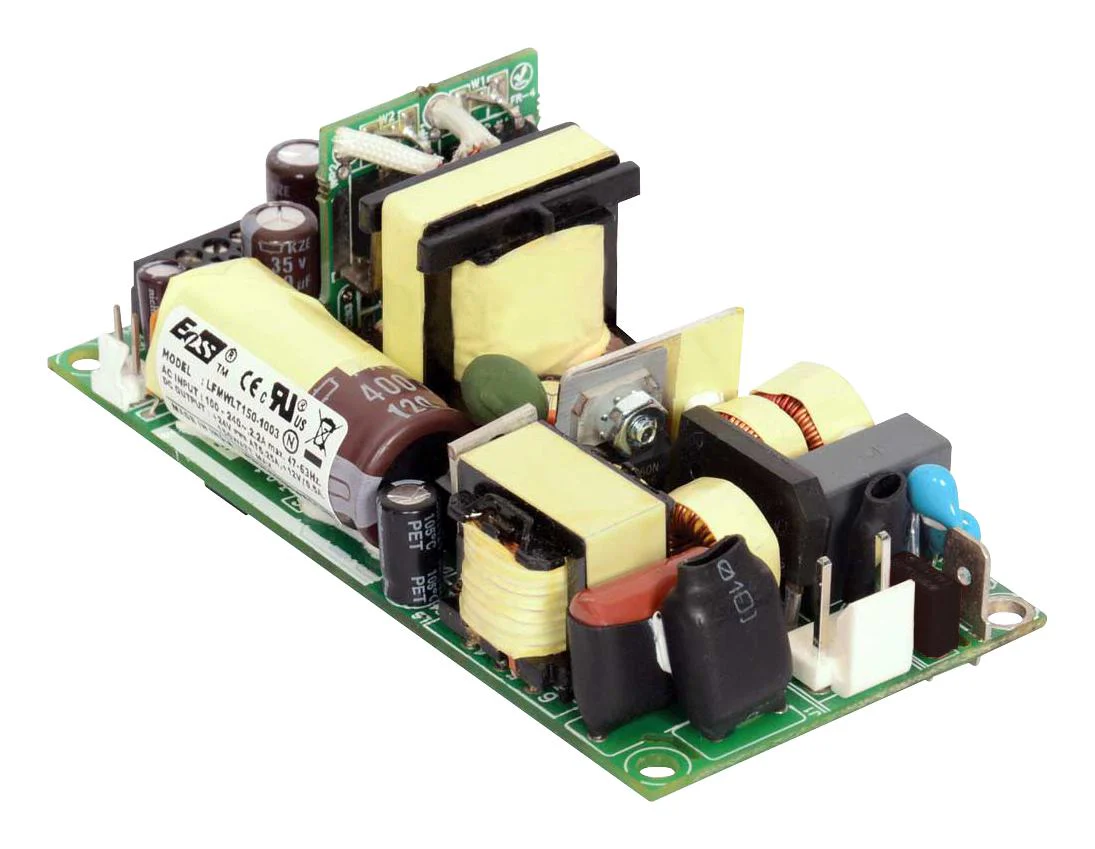

EOS Power LFWLT150-1003 LFWLT150-1003 AC/DC Open Frame Supply (PSU) ITE 1 Output 150W @ 300LFM 100 W 90V AC to 264V—
$122.53
The Story
LFWLT150-1003 is a WLT150 series industrial (WLT) AC/DC converter EOS power economical green series was designed with the value focused customer in mind. This offers market leading specifications in industry standard footprints at very competitive price levels. It includes over current, over voltage, short circuit protection. Certified by EN/IEC/UL 62368-1 (Ed.3).
- Universal input voltage range from 90 to 264VAC/120 to 390VDC, output voltage is 24V
- Output power is 150W, maximum output current is 4.17A(convection)
- Typical efficiency is 84%(120VAC), 86% (230VAC)
- 150W with forced-air cooling, 12V at 0.5A fan voltage auxiliary output
- Low conducted and radiated noise, light weight
- Class I with screw terminal
- Typical switching frequency range from 35 to 250kHz(PFC converter), 35 to 250kHz(resonant converter)
- Isolation voltage is 4000VDC (min, between input to output)
- Operating temperature range from -20°C to 70°C
- Dimensions is 101.6 x 50.8 x 33.63mm
Other details
| Brand | EOS POWER |
| Part Number | LFWLT150-1003 |
| Quantity | Each |
| Technical Data Sheet EN |  |
