- 12" (304.8mm) Sub-Woofer Driver
- 800W @ 6 Ohms
- Intended for Cabinet Installation
- 160 oz Double-Stacked Magnet
- 25 - 125Hz Frequency Response

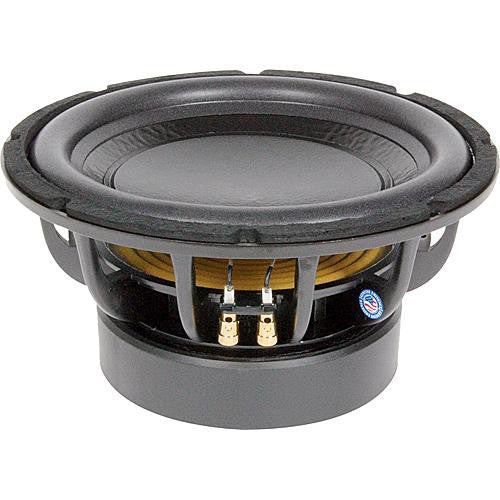

The Eminence LAB12 Sub-Woofer Loudspeaker Driver is part of their Professional Series and is designed to install into custom made or prefabricated line-array or car speaker cabinets that will accommodate a 12" (304.8mm) diameter driver.
The speaker will deliver up to 800W of power at 6 ohms and will adequately reproduce low and sub-bass frequencies in consumer and mid-level professional sound reinforcement applications. Some of the many applications include sound reinforcement speakers for cars, line-array cabinets, commercial audio installations and more.
- 12" (304.8mm) sub-woofer driver for cabinet installation in vented, sealed and horn loaded enclosures. Also recommended as a car sub woofer
- 800W of power at 6 ohms
- 160 oz magnet and 2.5" (63.5mm) voice coil
- 7-Year Limited Warranty
| Power | 400W 800W (Program) |
| Nominal Impedance | 6 Ohms |
| Sensitivity | 89.2 |
| Frequency Response | 25 - 125Hz |
| Primary DC Resistance | 4.29 |
| Voice Coil | 2.5" (63.5mm) |
| Magnet | 160 oz |
| Construction | Polymide Coil: Copper Magnet Composition: Ferrite Core Details: Vented Basket Materials: 12-spoke die-cast aluminum basket Cone Composition: Kevlar-reinforced paper cone Cone Edge: Foam cone edge Dust Cap: Dual inverted dust caps |
| Dimensions | 12.32" (312.8mm) Diameter 6.44" (164mm) Depth |
| Weight | 22 lbs (10 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 26.0 lb |
| Box Dimensions (LxWxH) | 13.75 x 13.75 x 6.125" |
