Elo Touch 2794L Overview

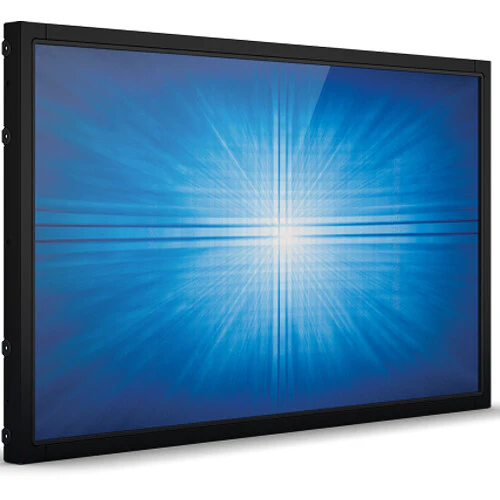

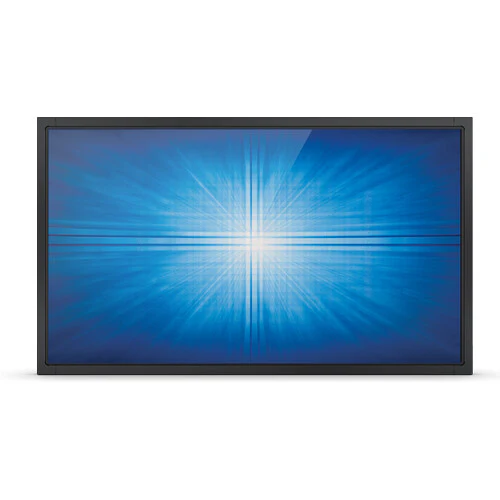

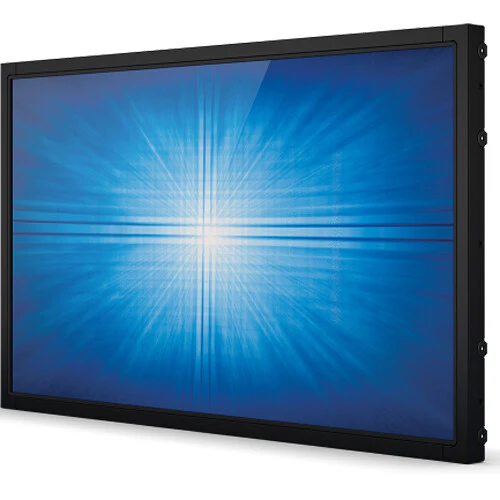

The Elo Touch 2794L 27" Class 1080p HD Open Frame Touchscreen Display delivers an industrial-grade solution that is cost-effective for OEMs and system integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The display offers the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Enabling Partners to Build Smarter Kiosks
Flexibility for Your Install
In the Box
- Elo Touch 2794L 27" Class 1080p HD Open Frame Touchscreen Display (IntelliTouch Dual Touch)
- HDMI Cable
- VGA Cable
- RJ45 OSD Remote
- "L" (Side Mount) Brackets and with Screws
- Touch USB Cable
- Limited 3-Year Warranty
Elo Touch 2794L Specs
| Screen Size (Diagonal) | 27" |
| Resolution | 1920 x 1080 |
| Supported Display Resolutions | 640 x 480 / 60 Hz 720 x 400 / 70 Hz 800 x 500 / 60 Hz 800 x 600 / 60 Hz 1024 x 768 / 60 Hz 1280 x 800 / 60 Hz 1280 x 1024 / 60 Hz 1366 x 768 / 60 Hz 1440 x 900 / 60 Hz 1680 x 1050 / 60 Hz 1920 x 1080 / 50 Hz 1920 x 1080 / 60 Hz |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Brightness | 270 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 23.5 x 13.23" / 597.6 x 336.15Â mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 3000:1 |
| Response Time | 12 ms |
| Horizontal Frequency | 30 to 82 kHz |
| Vertical Frequency | 50 to 75 Hz |
| Input Ports | 1 x HDMI 1.3 Video 1 x 15-Pin VGA Video 1 x DisplayPort 1.1 Video |
| USB Ports | 1 x USB 2.0 Type-B |
| Other I/O | 2 x Serial |
| Touchscreen Technology | Surface Capacitive |
| Power Consumption | Typical: 27.0 W Standby: 1.5 W |
| DC Input Power | 12 VDC |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 95% |
| Wall Mounting | 200 x 100 mm |
| Dimensions | 24.9 x 14.7 x 1.6" / 633.2 x 374.4 x 41.8Â mm (with Bracket) 25.4 x 15.3 x 1.6" / 644.2 x 388.4 x 40.6Â mm (Panel) |
| Weight | 16.09Â lb / 7.30Â kg |
