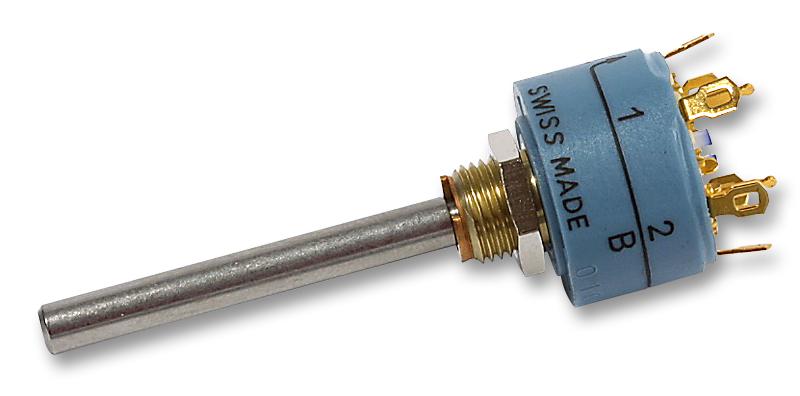

Elma 01-1234 01-1234 Rotary Switch 3 Position 2 Pole 60 °

The 01-1234 is a 3-position non-illuminated Rotary Selector Switch with 60° non-shorting index angle and solder eyelets. Its ingenious design makes obvious choice of audio, industrial and medical product design professionals. It has stainless steel shaft, nickel silver bushing, fibre enforced plastic housing and gold-plated copper alloy soldering leads.

• UL94-HB Flammability rating
• 25000 Switching cycles with up to 6Ncm switching torque
• 3-micron Gold-plated contacts
• Robust metal bushing and shaft
• Up to IP68 front panel sealing
• -40 to 85°C Operating temperature range

Applications

Medical, Audio, Test & Measurement, Sensing & Instrumentation, Avionics, Automation & Process Control, Building Automation, Industrial

Other details

Brand	ELMA
Part Number	01-1234
Quantity	Each
Technical Data Sheet EN
