Electro-Harmonix TUNERV2 Overview
With high visibility and a highly compact form factor, the 2020 V2 Mini Pedal Tuner from Electro-Harmonix is a solid addition to any pedalboard. This chromatic tuner pedal offers a wide tuning range of B0 to B7, with accuracy within ±1 cent, three flat tuning modes, and manual calibration from 436 to 445 Hz in 1 Hz steps.

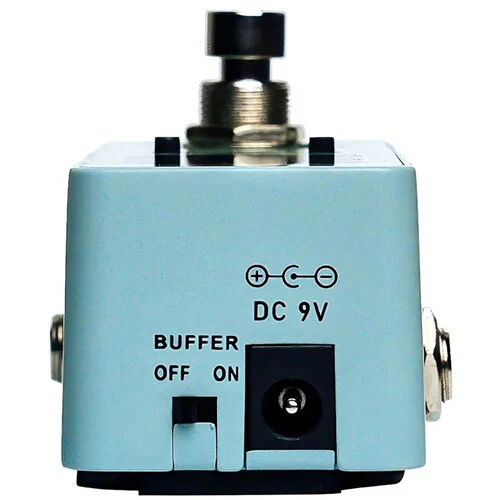

Control of the pedal settings is provided via two buttons: Pitch controls the reference frequency and Flat enables the flat tuning modes. A switch in the rear of the pedal lets you select between true bypass (default) for a pure, uncolored tone, or buffered bypass, which props up your signal integrity for long cable runs and complex pedalboard configurations. The pedal automatically disengages the audio output when tuning is activated for convenience. The 2020 V2 includes a power adapter.
- Highly compact and slim form factor
- B0 to B7 tuning range
- Highly accurate tuning within 1 cent
- Three flat tuning modes with dedicated control
- Reference frequency selection from 436 to 445 Hz in 1 Hz steps
- Selectable true or buffered bypass
- Highly visible display
Items Included
- Electro-Harmonix 2020 V2 Mini Pedal Tuner
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Electro-Harmonix TUNERV2 Specs
| Audio Circuit Type |
Digital
|
| Buffer |
Selectable True or Buffered Bypass
|
| Controls |
2 x Buttons (Pitch, Flat)
1 x 2-Way Switch (True/Buffered Bypass) 1 x Footswitch (On/Bypass) |
| Audio I/O |
1x 1/4" TS Hi-Z/Instrument Input
1x 1/4" TS Hi-Z/Instrument Output |
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
9 VDC at 10 to 100 mA
|
| Operating Current |
10 mA (Typical)
|
| Color |
Blue
|
| Material of Construction |
Metal
|
| Dimensions |
3.7 x 2 x 1.8" / 94 x 50 x 46Â mm
|
| Weight |
9.2Â oz / 260Â g
|
| Package Weight |
0.775 lb
|
| Box Dimensions (LxWxH) |
7.1 x 4.7 x 2.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
