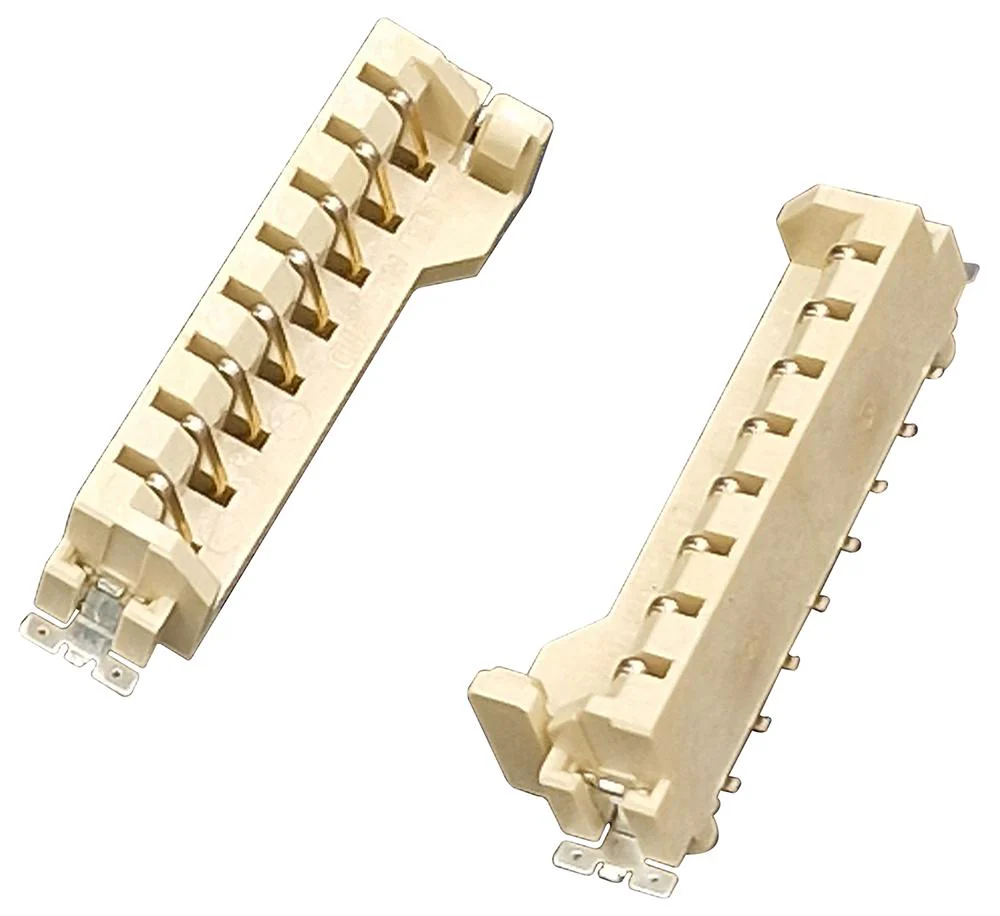

Edac 299-008-299-198 299-008-299-198 Card Edge Connector Single Side 8 Contacts Surface Mount Straight Solder—
$5.53
The Story
The ClipZin� card edge connector is a unique mounting solution for IoT prototyping that allows single board modules to be temporarily connected instead of being permanently fixed to a PCB. The simple, surface mount design allows you to connect & disconnect the module as and when required and also features a retention clip to hold the module in place. The ClipZin design eliminates the need for pin headers and provides a convenient alternative to soldering headers directly to module boards. Two 8 contact edge connectors, these ClipZin are suitable for use with the Seeeduino XIAO and similar development boards.
- 8 Contact connector design, ideal for use with compact development boards such as the Seeeduino XIAO (102010328)
- Fast, tool-less assembly with a positive click to confirm connection
- Eliminates the need to solder headers to the PCB to mount a single module
- Ensures a reliable and consistent connection between contacts and the castellated board edge
- Enables rapid connection and disconnection for effective prototyping
- Integrated retention clips keep the module secure
- Suitable for surface mount soldering
- Gold plated pins for connection reliability
Other details
| Brand | EDAC |
| Part Number | 299-008-299-198 |
| Quantity | Pack of 2 |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
