$39.43
Original: $131.45

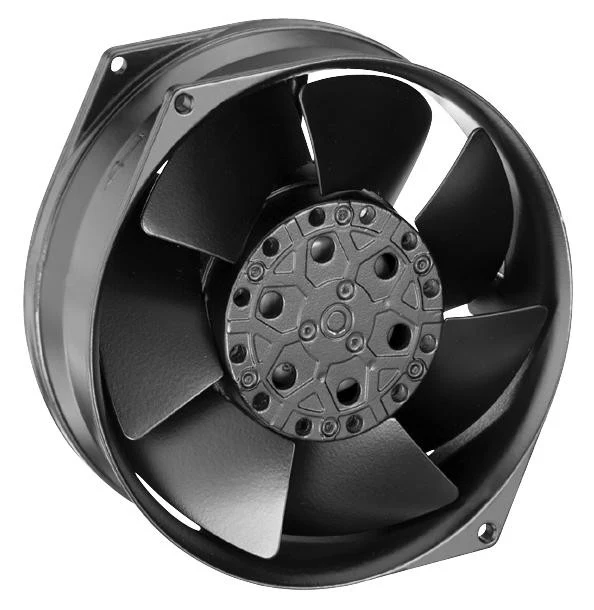

-70%EBM-PAPST W2S130-AA25-01 Axial Fan, W2S130 Series, IP20, 115 V, AC, 172 mm, 55 mm, 53 dBA, 223.6 cu.ft/minā
$131.45
$39.43The Story
The W2S130-AA25-01 is a 115VAC Axial Fan with wall ring, ball bearing, wire leaded power connection and 2-pole shaded pole motor. Die-cast aluminium housing, impeller of sheet steel, directly welded onto rotor. External rotor shaded pole motor, counter-clockwise direction of rotation seen on rotor air exhaust over struts air flow direction with S1 operation mode.
- 38W Rated power
- 80Ā°C Maximum permissible ambient motor temperature
- Protection class-I
- IP20 Protection rating
Applications
HVAC
Product details
| Supply Voltage | 115V |
| Power Connection Type | 2 Lead Wires |
| Flow Rate - Metric | 6.33mĀ³/min |
| Fan Frame Size | 172mm |
| Current Type | AC |
| Product Range | W2S130 Series |
| Flow Rate - Imperial | 223.6cu.ft/min |
| Current Rating | - |
| Noise Rating | 53dBA |
| Bearing Type | Ball |
| External Depth | 55mm |
Other details
| Brand | EBM-PAPST |
| Part Number | W2S130-AA25-01 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The W2S130-AA25-01 is a 115VAC Axial Fan with wall ring, ball bearing, wire leaded power connection and 2-pole shaded pole motor. Die-cast aluminium housing, impeller of sheet steel, directly welded onto rotor. External rotor shaded pole motor, counter-clockwise direction of rotation seen on rotor air exhaust over struts air flow direction with S1 operation mode.
- 38W Rated power
- 80Ā°C Maximum permissible ambient motor temperature
- Protection class-I
- IP20 Protection rating
Applications
HVAC
Product details
| Supply Voltage | 115V |
| Power Connection Type | 2 Lead Wires |
| Flow Rate - Metric | 6.33mĀ³/min |
| Fan Frame Size | 172mm |
| Current Type | AC |
| Product Range | W2S130 Series |
| Flow Rate - Imperial | 223.6cu.ft/min |
| Current Rating | - |
| Noise Rating | 53dBA |
| Bearing Type | Ball |
| External Depth | 55mm |
Other details
| Brand | EBM-PAPST |
| Part Number | W2S130-AA25-01 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
