-70%EAO 61-6441.4097 61-6441.4097 Emergency Stop Switch DPST-NO SPST-NC Turn to Release Quick Connect Solder 200 mA 50 V—
$93.77
$28.13The Story

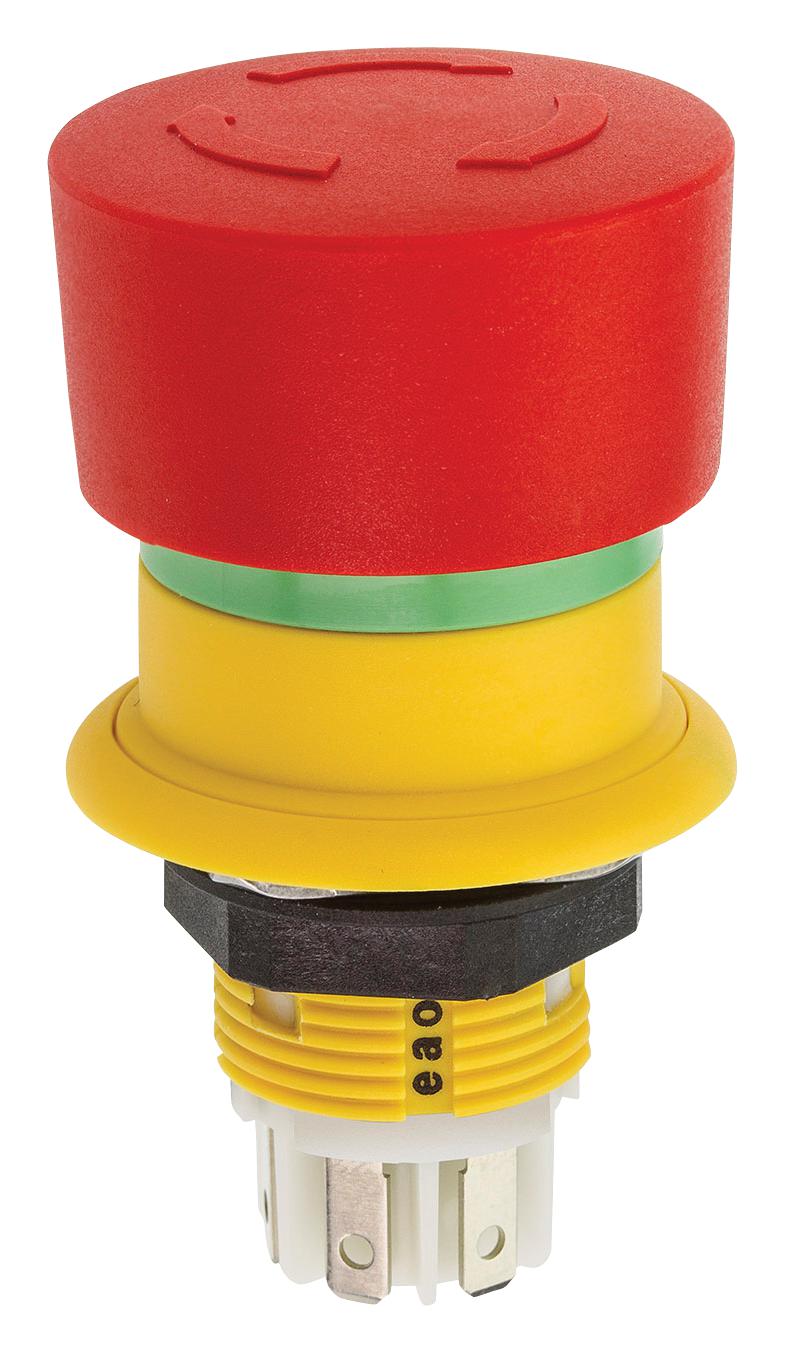

The 61-6441.4097 from EAO is an emergency-stop switch compact with foolproof EN IEC 60947-5-5 and � 27mm front dimension. The 61 series E-Stop compact switch is a robust, reliable, low back panel depth switch ideal for use in space critical applications. The robust mono-block design has a fool proof, trigger action mechanism to break the electrical contacts and a green indication ring to show whether the switch is actuated. The Series 61 E-Stop compact satisfies the needs of use, through rigorous material selection and a robust build quality that meets IP69K, the highest degree of protection against dirt and dust ingress.
- 1 NC + 2 NO contact
- Maintained switch action
- 2.8mm x 0.5mm solder terminal, �16.2mm mounting cut-out
- Twist to unlock clockwise, position indication ring green, rated impulse withstand voltage is 0.5KV
- Rated operating voltage is 50VAC/VDC, rated insulation voltage is 250V
- Insulation resistance is 2Mohm between the open contacts, 7Mohm towards panel (DIN IEC 60512-3-1)
- Electrical life time is >= 20000 switching cycles, overvoltage category II (EN IEC 60947-1)
- IP67 and IP69K front protection
- Plastic mushroom head lens and actuator housing material, metal (silver palladium) contact material
- Operating temperature range from -25°C to + 55°C
Automation & Process Control, Safety
Other details
| Brand | EAO |
| Part Number | 61-6441.4097 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| One Page Summary EN | |
