DZOFilm PAVO Anamorphic 135mm T2.4 (ft) Overview

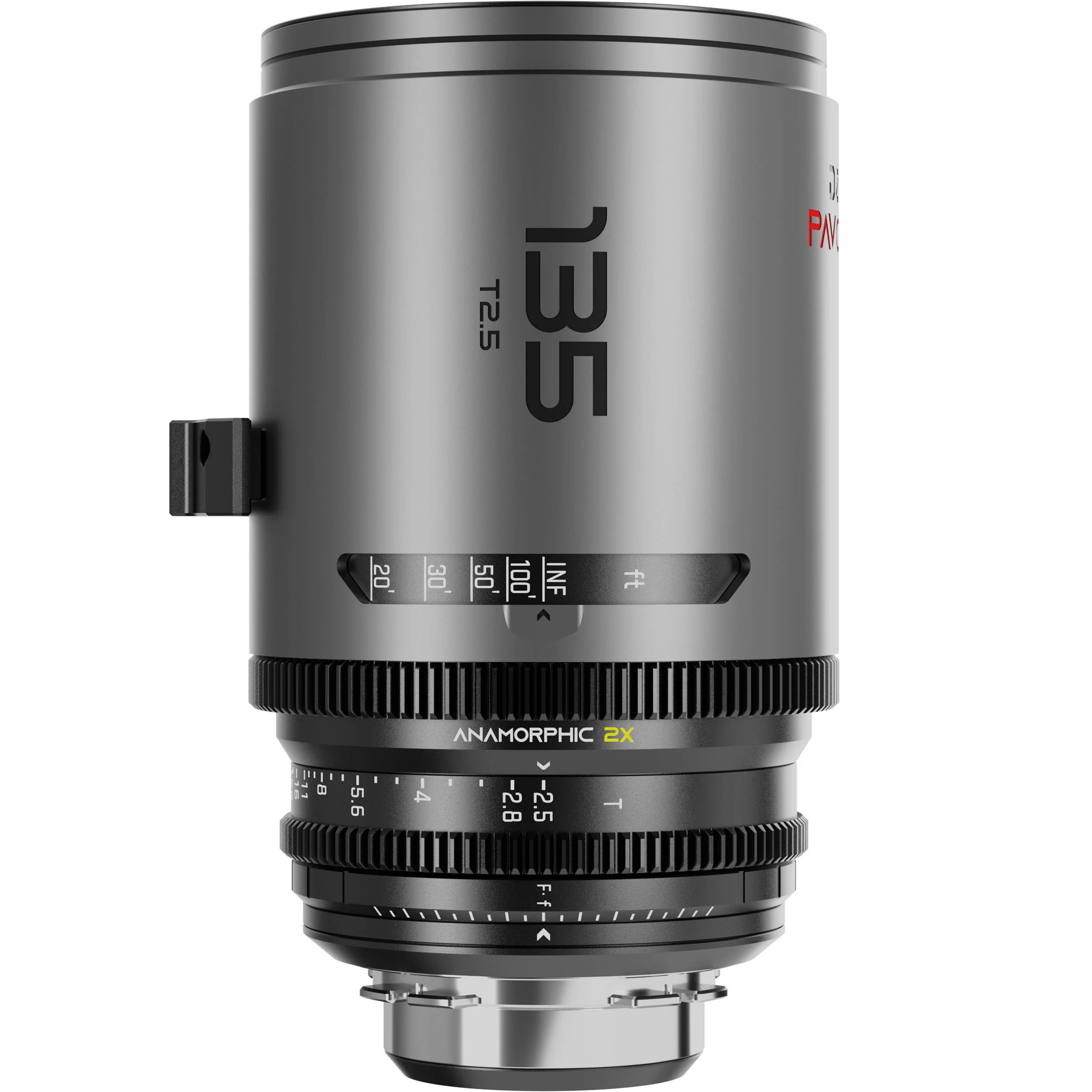

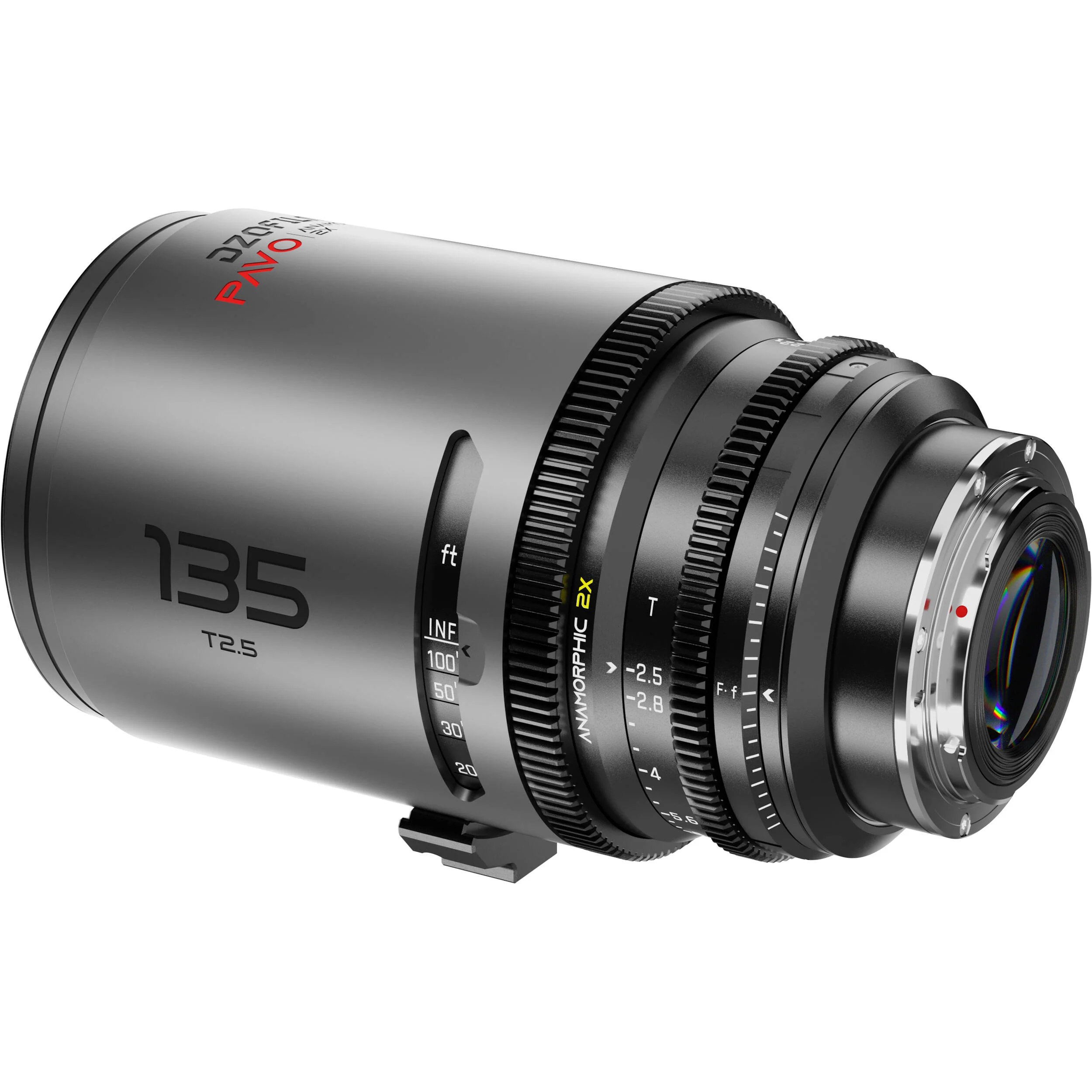

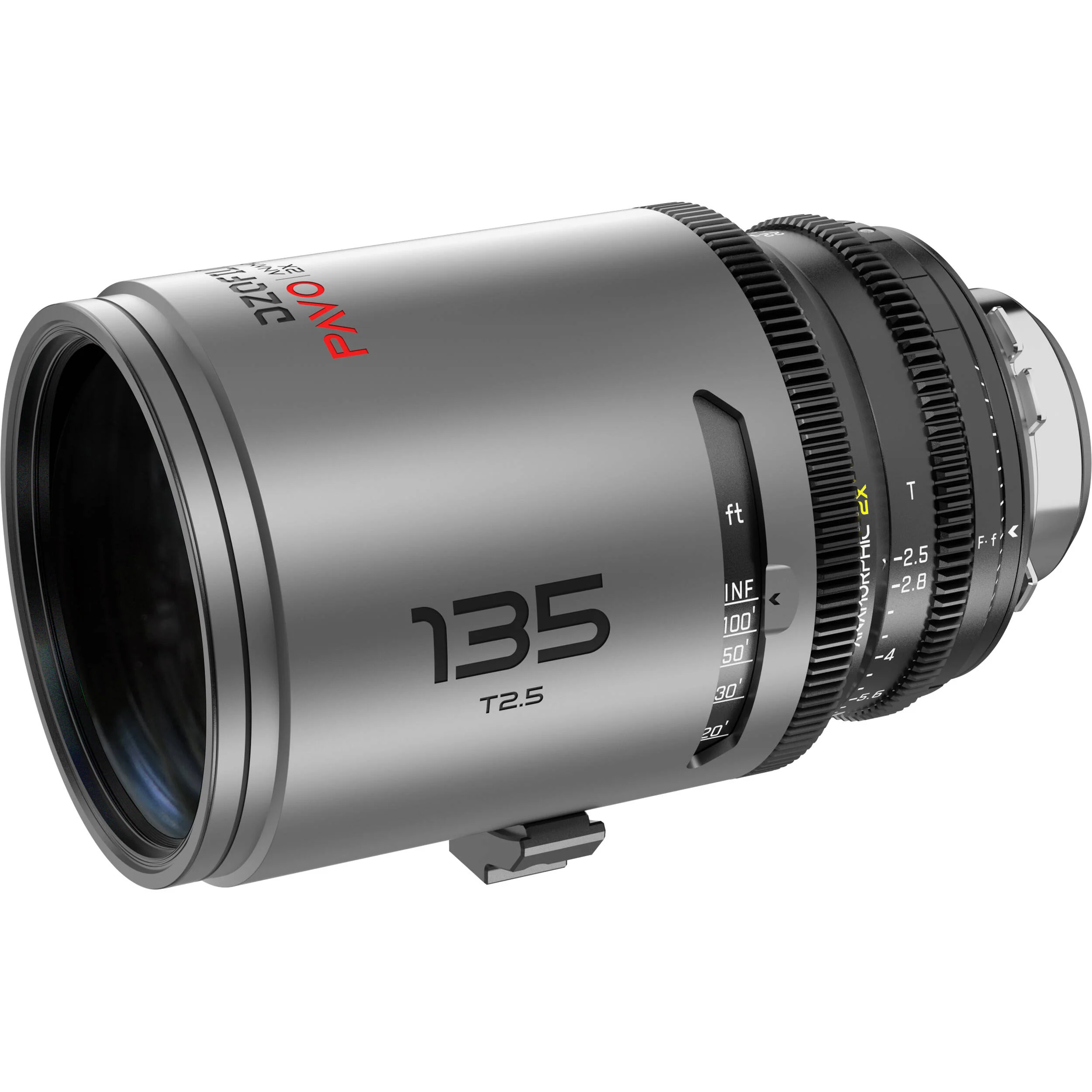

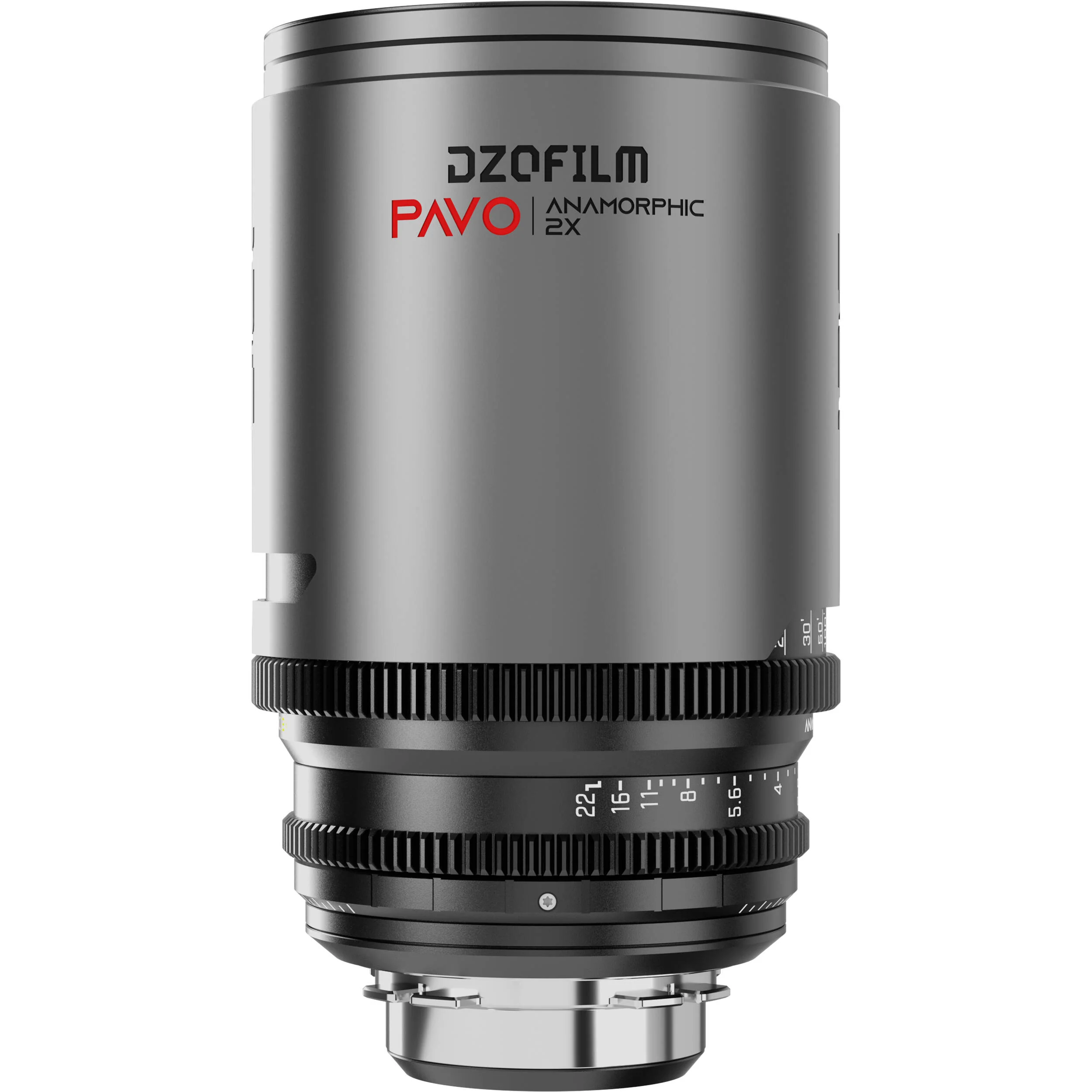

Capture stunning cinematic images with a vintage anamorphic look using this PAVO 135mm T2.5 2x Anamorphic Prime Lens from DZOFilm. Designed to cover Super35 sensors of cine-style cameras, this lens has a maximum aperture of T2.5 and employs 2x magnification, thus achieving what is commonly referred to as �true� anamorphic imaging with a 2.39:1 aspect ratio and boasting exceptional �waterfall� bokeh and evenly layered, horizontal neutral flares.
The 135mm lens is a longer focal length that produces a shallower depth of field, compressing environmental space and isolating characters against a creamy background. The PAVO�s PL mount can quickly be switched to an EF mount using the included EF bayonet. Focus marks are defined in feet, and the compact size and lightweight design of the lens make it an ideal option for cameras mounted on drones, mechanical and electronic stabilizers, and in handheld situations where keeping weight to a minimum is critical.
Items Included
- DZOFilm PAVO 135mm T2.5 2x Anamorphic Prime Lens (Neutral Flares, PL/EF Mount, Feet)
- Front Cap
- Rear Cap (PL)
- EF Bayonet
- Rear Cap (EF)
- 2 x Packet of Screw
- Set of Shims
- Screwdriver
- Set of Stickers
- Limited 1-Year Manufacturer Warranty
Additional Resources
DZOFilm PAVO Anamorphic 135mm T2.4 (ft) Specs
| Focal Length |
135mm
|
| Maximum Aperture |
T2.5
|
| Lens Mount |
ARRI PL
Canon EF with Included Adapter |
| Lens Format Coverage |
Super35/APS-C
|
| Filter Thread |
86 mm
|
| Image Stabilization |
No
|
| Electronic Communication |
No
|
| Maximum Aperture |
T2.5
|
| Minimum Aperture |
T22
|
| Lens Mount |
ARRI PL
Canon EF with Included Adapter |
| Interchangeable Mount |
Yes
|
| Lens Format Coverage |
Super35/APS-C
|
| Image Circle |
31.5 mm
|
| Focus Scales |
Imperial
|
| Optical Design |
16 Elements in 11 Groups
|
| Filter Thread |
86 mm
|
| Minimum Focus Distance |
From Camera Sensor: 39.0" / 99 cm
|
| Maximum Magnification Ratio |
1:2
|
| Diaphragm Blades |
16
|
| Image Stabilization |
No
|
| Gear Standard |
Focus: 0.8 MOD
Iris: 0.8 MOD |
| Gear Rotation |
Focus: 300°
Iris: 79° |
| Electronic Communication |
No
|
| Coating |
Multi-Coating
|
| Diameter |
Front: 3.7" / 95 mm
|
| Length |
6.3" / 160 mm
|
| Weight |
4.39 lb / 1.99 kg
|
| Package Weight |
13.205 lb
|
| Box Dimensions (LxWxH) |
16 x 12.75 x 6.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
