Product Overview

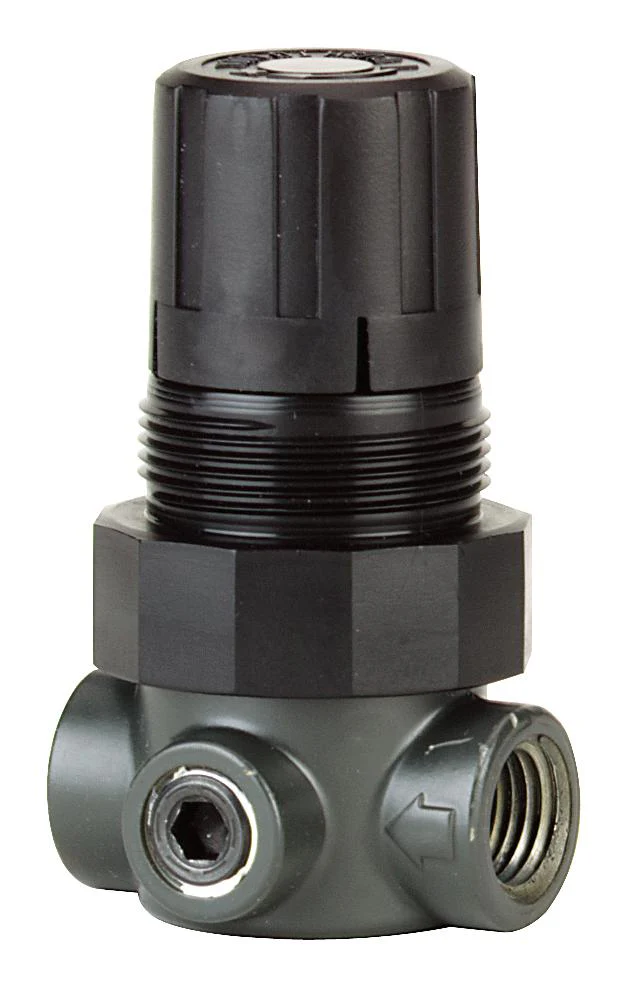

MPR1-0 is a series MPR miniature pressure regulator is a compact unit that provides low cost, high performance pressure regulation of compressed air or air/water. The low torque, non-rising adjustment knob with locking capability provides easy and precise adjustment. Typical applications include any industrial application that requires water or air pressure regulations and low cost.
- Pressure range from 0-5PSI (Air model)
- Low cost and compact
- Self relieving air model
- Easy and precise adjustment
- Zinc body and acetal bonnet
- Temperature limits range from 0 to 150°F (-18 to 60°C)
- Two 1/4? female NPT; Two 1/8? female NPT gauge port (Inlet and outlet) gauge ports
Product details
Other details
| Brand | DWYER |
| Part Number | MPR1-0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
