Product Overview

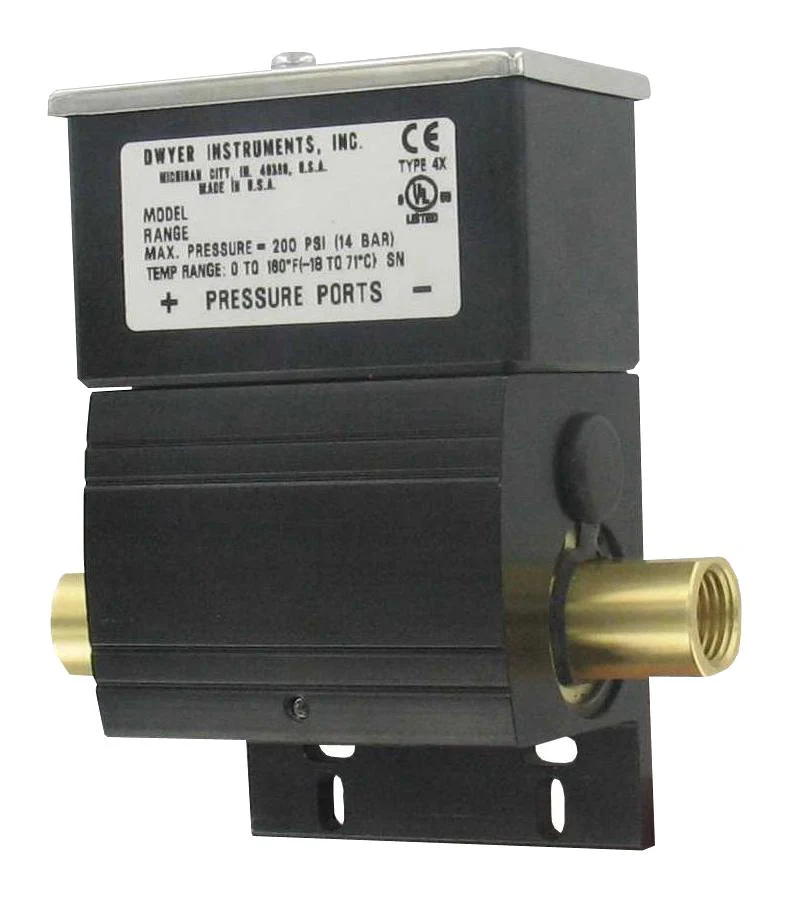

DXW-11-153-2 is a Series DX wet/wet differential pressure switch makes a contact output based on the differential between two pressure sources. Wetted materials of brass and fluoroelastomer are suitable for use with most gases and water based solutions. Weatherproof, UL type 4X, enclosure for dust laden, outdoor, or wash-down installation environments. Externally adjustable set point, integral mounting flange and a removable electrical terminal block for quick and easy installation.
- Adjustable differential range (on increase) from 10 to 25psid (0.69 to 1.72bar)
- Fixed deadband of 2.5psid (0.17bar) low set point and 3.5psid (0.24bar)
- Removable terminal block reduces installation time
- Brass connection and fluoroelastomer diaphragm
- Temperature limits range from 30 to 140°F (-1 to 60°C)
- Weatherproof UL type 4X (IP65)
- SPDT snap switch type
- Removable terminal block
- 1/4" NPT female process connection
- External screw set point adjustment
Product details
Other details
| Brand | DWYER |
| Part Number | DXW-11-153-2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
