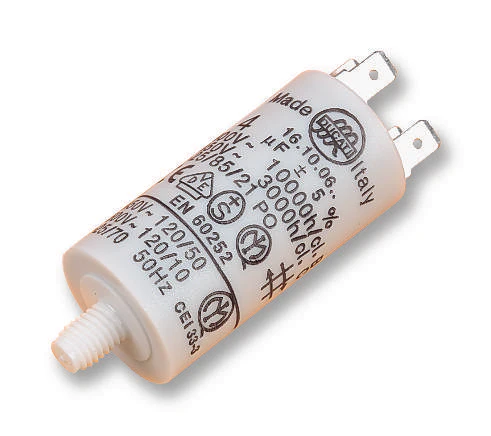

Ducati 4.16.10.26.64 4.16.10.26.64 Motor Run Capacitor Metallized PP Can 25 µF ± 5% 450 V

The 4.16.10.26.64 is a snap-in Electric Motor Capacitor is used for start and run. This 4.16.10 series is supplied with the main international approvals (IMQ-VDE-GOST). The dielectric is polypropylene film, the electrodes consist of an extremely thin metal coating obtained by vacuum evaporation. Case and cover are made with self-extinguishing plastic material, the capacitive element is sealed with polyurethane resin. The FAST FIX system (patent no. UD 92A000164) allows a quick mounting of the capacitors on the equipment and it is suitable for plates which thickness is between 0.8 and 1.1mm. The required drilling allows, anyway, the alternative standard mounting by means thread stud.

• 40mm Diameter
• M8 stud
• Low losses non-inductive winding
• Self-healing property avoiding short-circuits
• Small size and limited weight
• No leakage risk
• IP00 Protection rating

Applications

Motor Drive & Control

Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	DUCATI
Part Number	4.16.10.26.64
Quantity	Each
Technical Data Sheet EN
