Dsan PC-MINI-AS3 Overview

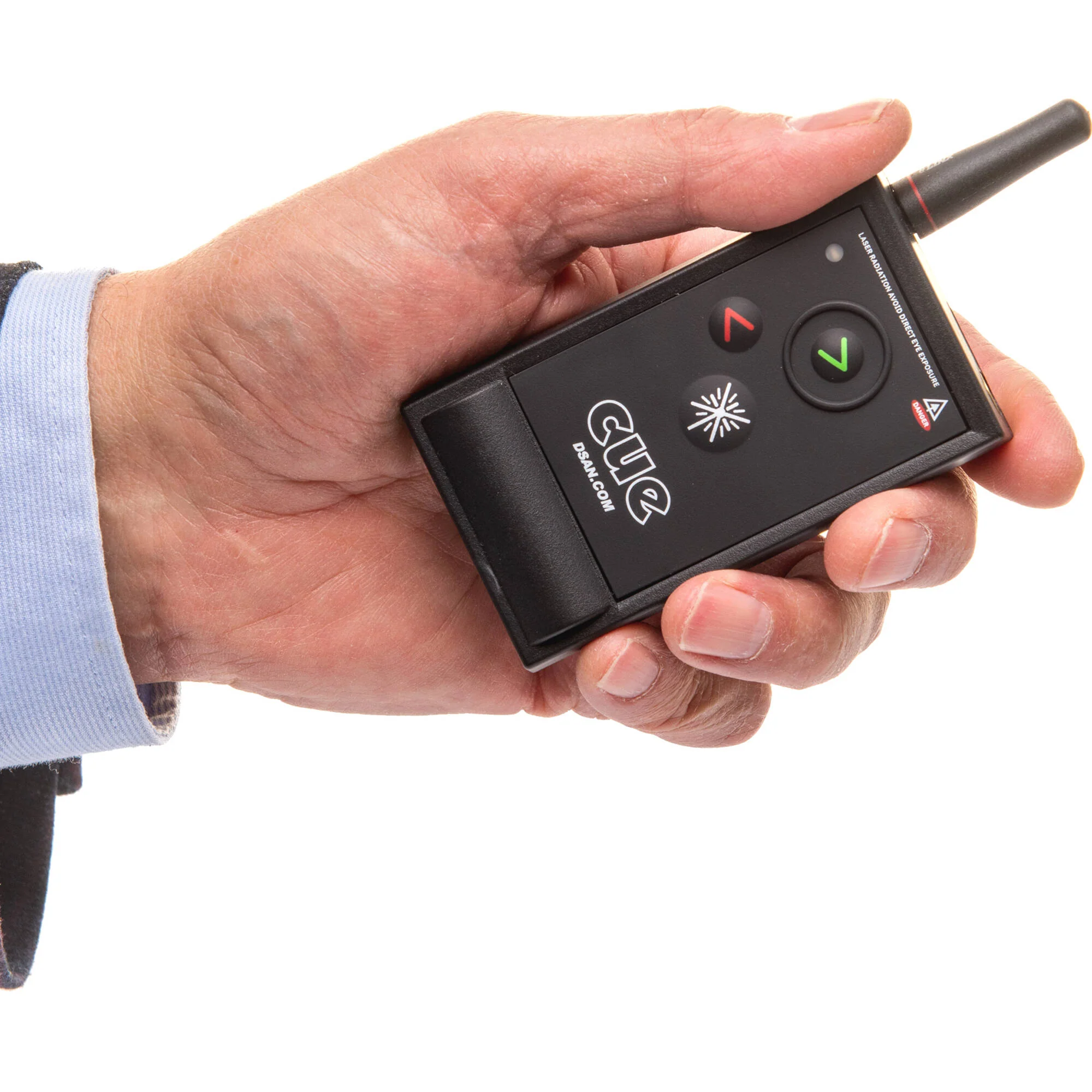

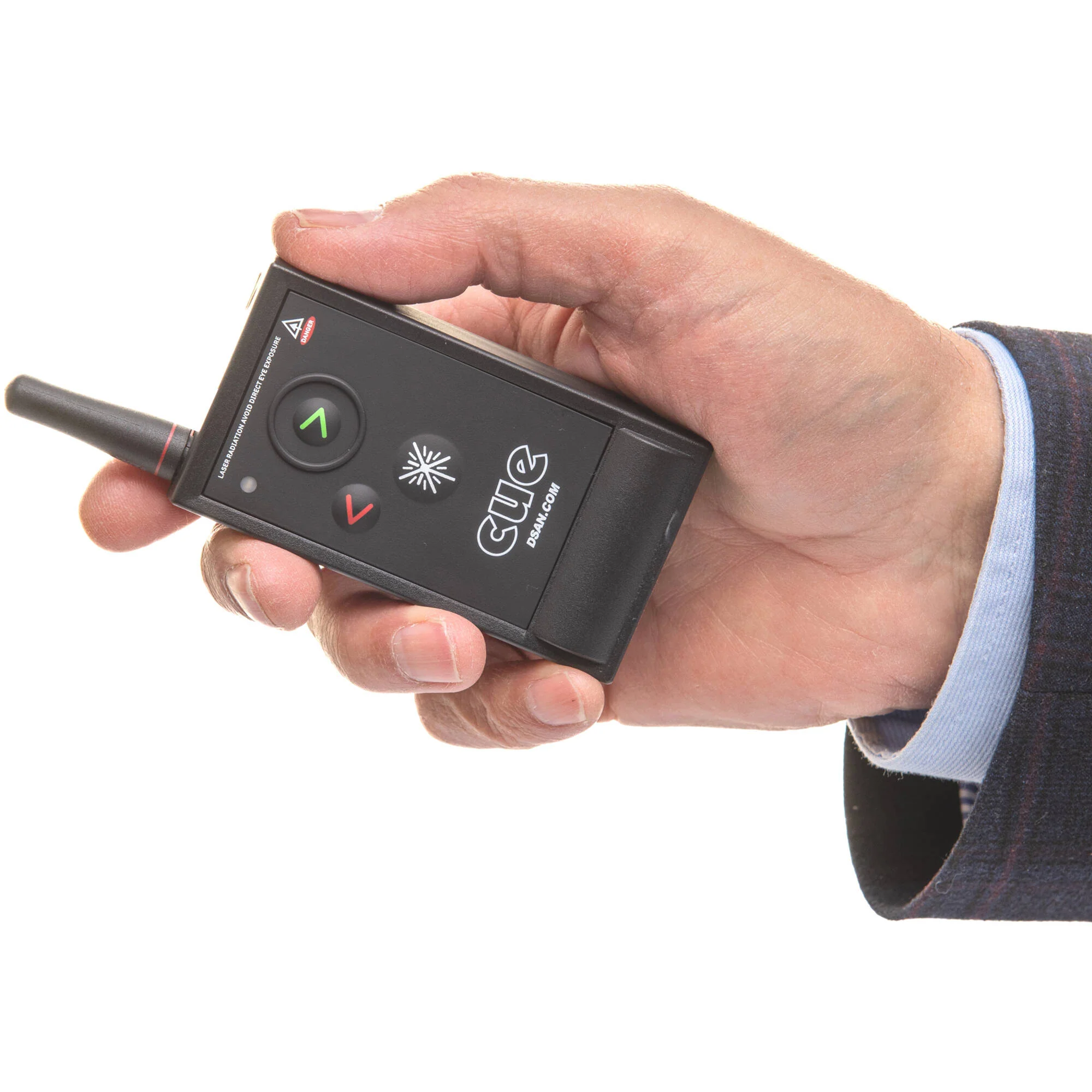

The Dsan PerfectCue Mini is a wireless audio and visual cueing system that enables a speaker to send cues to a projectionist using the wireless handheld transmitter or to remotely control presentation software via dual programmable USB ports. This configuration includes a compact Cue Light receiver and a pocket-size PC-AS3 wireless transmitter with Forward and Reverse buttons, plus a green laser for pointing things out. The high-quality RF performance ensures that wireless communication between the transmitter and the Cue Light receiver is reliable at 300'.
The PerfectCue Mini receiver is designed with a fold-away bracket so that the unit can slide easily into a laptop carrying case. It is compatible with all the PerfectCue transmitters and may interconnect with other PerfectCue Minis, PerfectCues, or any of the company's Cue Light accessories via Cat 5 or XLR cable. The receiver features an audio output with volume control for use with headphone or earpiece monitoring.
- Range of transmitter to Cue Light: 300'
- Light behavior, sounds, and keystrokes are programmable with free app
- Onboard speaker volume control: High, Low, and Off
- Lights control: High, Low, and Off
- Local switch control: Forward (green), Back (red), Blank (amber), USB engaged/disengaged
- Ports: 2x USB Type-B, Serial-XLR female, Serial-RJ45, 3.5mm headphone jack
- Cue Light power: USB or power supply (included)
- Rf communication: 433.92 MHz , 256 possible channels
- Waterproof, dustproof, crushproof customized hard case
- Large, dot-embossed, tactile-feel buttons
- One "Forward" command button to indicate "next slide"
- One "Reverse" command button to indicate "previous slide"
- One "Green Laser" command button for pointing out
- Powered by one CR123 battery (included)
- LED indicating push button transmission and approach of end of battery life
- One transmitter can control multiple Cue Lights
- One Cue Light can be controlled by multiple transmitters
- One Cue Light can control two computers in sync
- One Cue Light can control additional Cue Lights (by wiring together the Cue Lights) PerfectCue systems can work in proximity without interfering with one another
Items Included

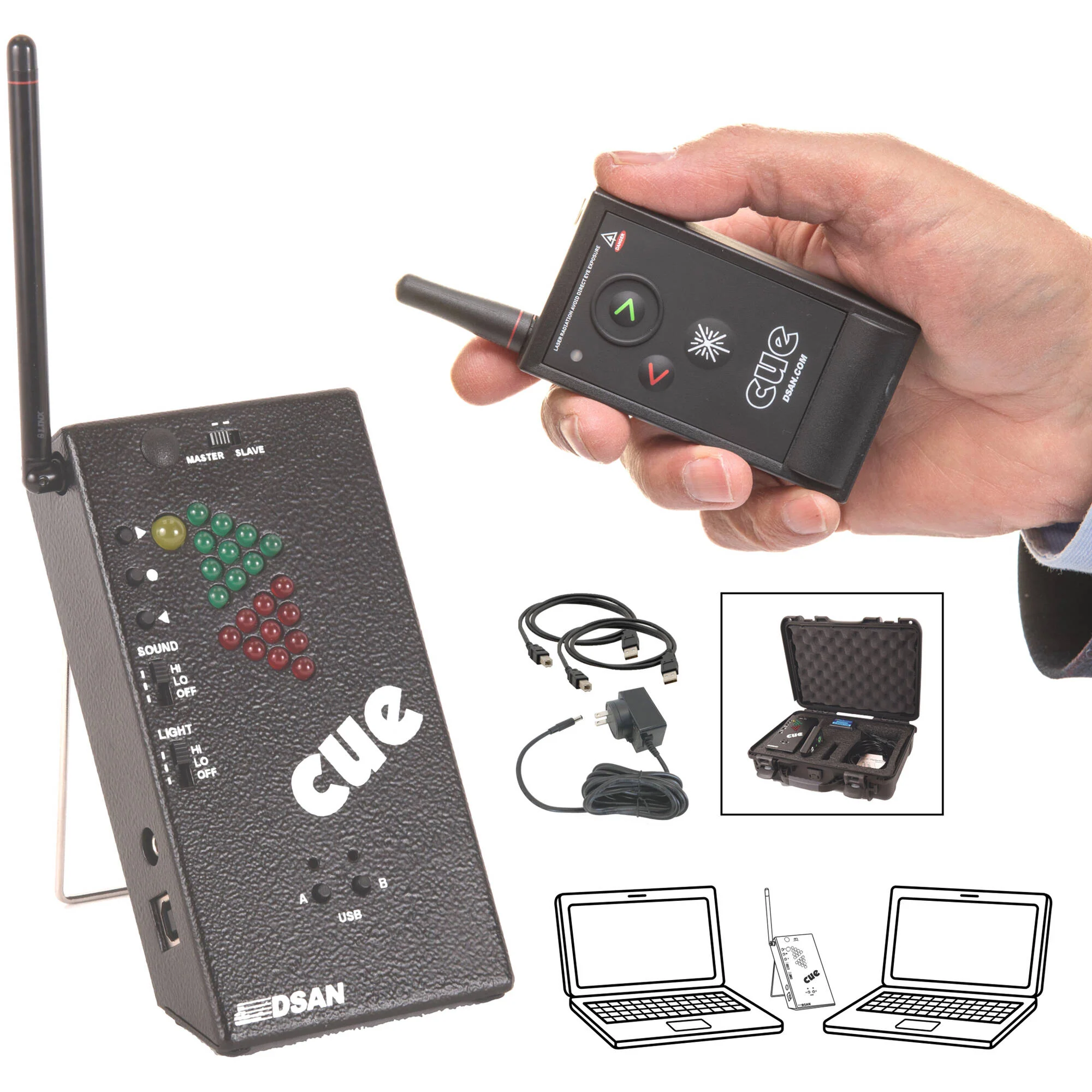

- Dsan PerfectCue Mini System with Compact Cue Light and PC-AS3 Wireless Transmitter
- Cue Light with Fold-Away Bracket
- Dsan PC-AS3 3-Button Wireless Transmitter with Green Laser for PerfectCue
- 2 x USB Cable (6')
- Dsan External 12V Power Supply
- Dsan Carrying Case for PerfectCue Mini
- Limited 1-Year Warranty
Additional Resources
Dsan PC-MINI-AS3 Specs
| Compatibility |
Not Specified by Manufacturer
|
| USB I/O |
2 x USB-B Female Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Headphone Output
|
| Power Source |
USB, AC Adapter with Power Brick (Included)
|
| Battery Type |
2x CR2032
|
| AC Input Power |
110 to 220 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC at 1 A
|
| Mounting |
1x Fold-Away Bracket
|
| Cable Length |
6' / 1.8 m
|
| Dimensions |
6 x 3.75 x 1.25" / 15.2 x 9.53 x 3.17 cm (Cue Light)
5 x 2 x 0.75" / 12.7 x 5.1 x 1.91 cm (Transmitter) 14.5 x 11.5 x 4" / 36.8 x 29.2 x 10.2 cm (Case) |
| Weight |
6 lb / 2.7 kg (with Case)
|
| Package Weight |
7 lb
|
| Box Dimensions (LxWxH) |
14.2 x 12 x 6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
