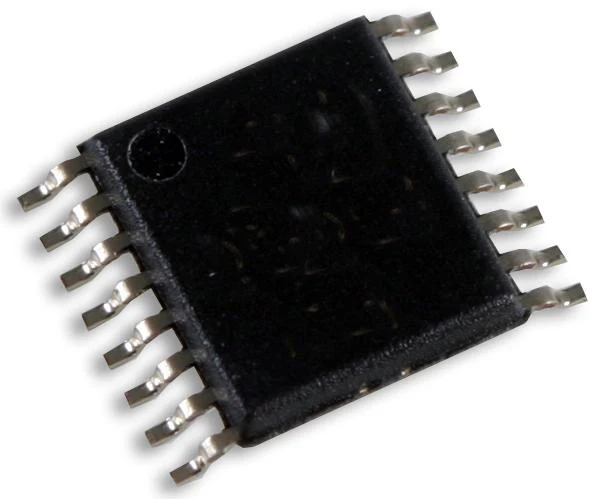

-70%Diodes INC. AL1783T16E-13 AL1783T16E-13 LED Driver Linear TSSOP-16EP SMD—
$2.85
$0.85The Story
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Device Topology | Linear |
| Input Voltage Min | 6.5V |
| Input Voltage Max | 60V |
| Output Voltage Max | 60V |
| Output Current Max | 300mA |
| Switching Frequency | - |
| No. of Outputs | 3Outputs |
| IC Mounting | SMD |
| Driver Case Style | TSSOP-EP |
| No. of Pins | 16Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 105°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | - |
Other details
| Brand | DIODES INC. |
| Part Number | AL1783T16E-13 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
