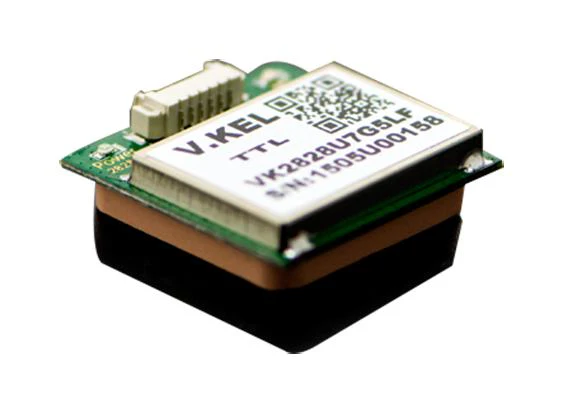

Dfrobot TEL0094 TEL0094 GPS Receiver Module 3.3 V to 5 56-CH 2.5 m

GPS module with enclosure for Arduino is a unit embedding GPS module and antenna in a small foot-print enclosure. By using TinyGPS library, Arduino can retrieve geographic coordinates (latitude and longitude, altitude), speed, heading and GMT time. The update rate is an important performance index of a GPS receiver. Most GPS in mobile phones provide an update rate of 1Hz, which means, only one set of data can be retrieved in one second. For GPS receivers with 1~10Hz, the data interval is much reduced and thus can be used for more demanding applications (e.g. on fast-moving vehicles).

• UBX-G7020-KT solution
• 9600bps (default) (4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600) TTL interface
• 5V at 30mA (support 3.3V to 5V)
• 56-channel receiver
• Extremely high sensitivity -161dBm
• Accuracy 2.5m (autonomous) / <2m[SBAS]
• Operating temperature range from -40°C to 85°C
• Hot start : 1s, warm start : 28s, cold start : 29s
• Module size 28*28*8.6mm, enclosure size 37x48x16mm
• LED indicator

Contents

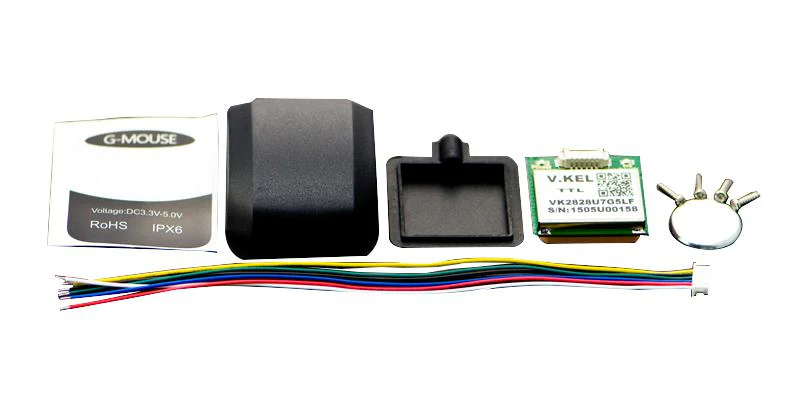

GPS receiver for Arduino(Model) x 1, Enclosure x 1, Cable x 1.

Other details

Brand	DFROBOT
Part Number	TEL0094
Quantity	Each
Technical Data Sheet EN
