$1.84
Original: $6.14
-70%Deutsch - TE Connectivity DT043P-CE09 DT043P-CE09 Automotive Connector Housing Thin Wall Black DT Receptacle 3 Ways Series Pin Contacts—
$6.14
$1.84The Story

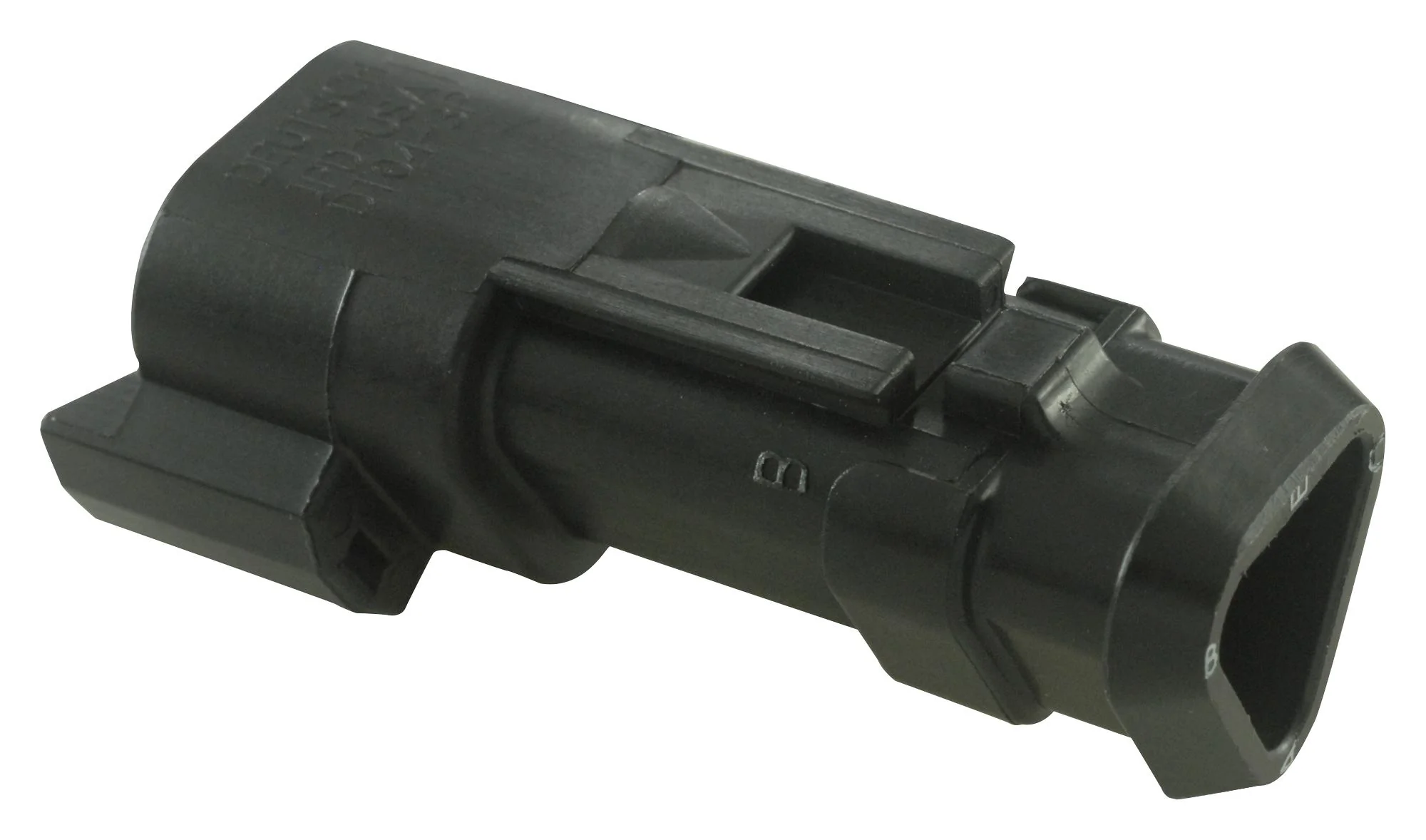

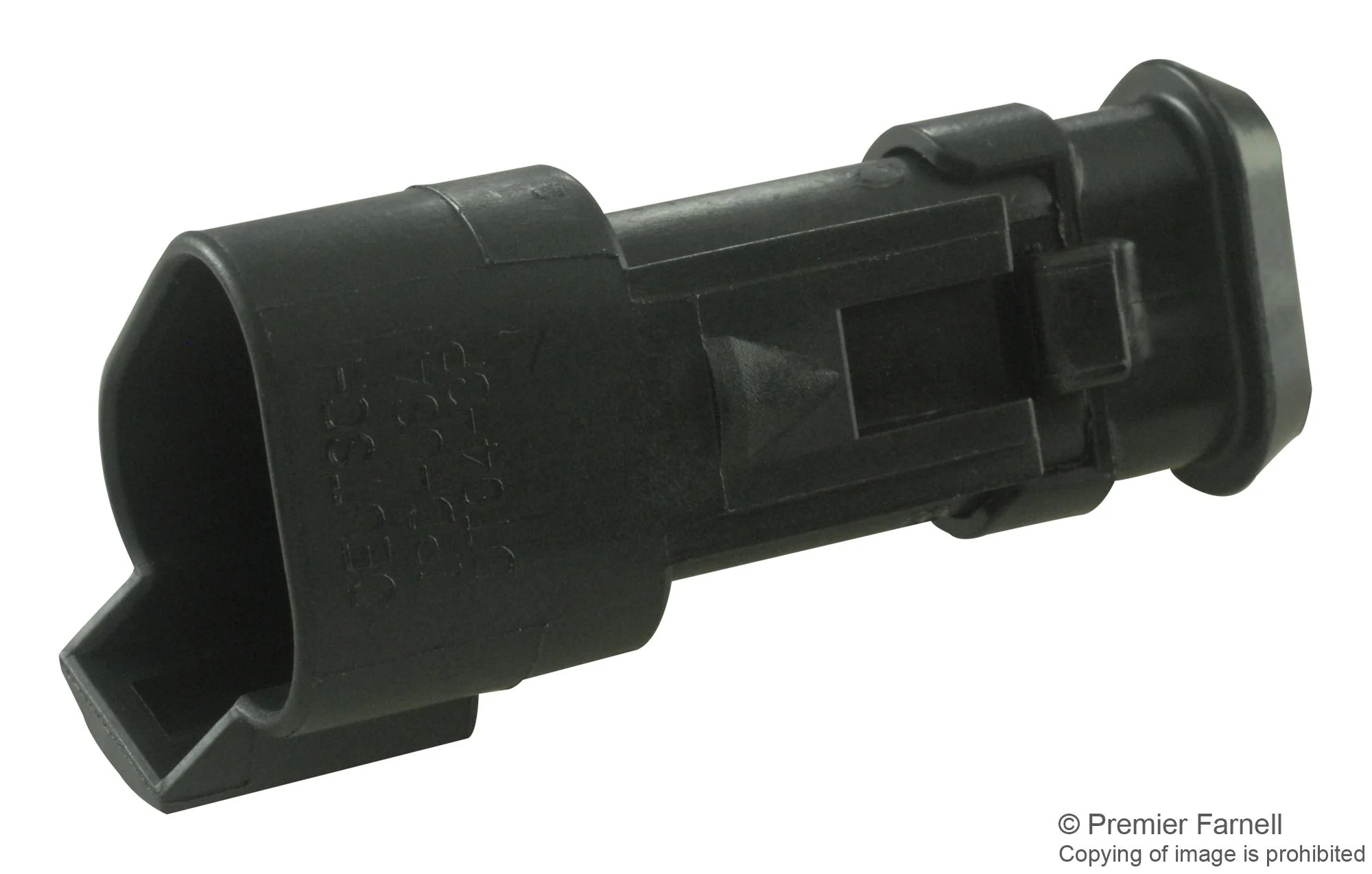

The DT043P-CE09 is a 3-way black thin wall sealed Receptacle Housing, made of PA GF, suitable for male terminals. This DT series connector housing is designed for wire to wire applications. It will accept shaped boots/sleeves or shrink tubing.
- 2, 3, 4, 6, 8 and 12 cavity arrangements
- Available in in-line, flange or PCB mount options
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedgelocks assure contact alignment and retention
- Available in both plug and receptacle
- Accepts Thin Wall Wire: 1.35 - 3.05mm wire insulation diameter
- -55 to +125°C Operating temperature range
Agriculture, Automotive, Automotive Systems, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | DEUTSCH - TE CONNECTIVITY |
| Part Number | DT043P-CE09 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
