D'Addario EHSP-1-BUNDLE Overview
Open up a new universe of sonic possibilities for your acoustic drum kit with the EVANS Hybrid Sensory Percussion Sound System from D'Addario, a hardware and software kit that uses sensors, not triggers, to provide detailed 10-zone playing per drum with control over speed, velocity and timbre. Compatible with any snare, tom, or kick drum, this system provides the customization and control of a trigger system with the freedom and expressive detail of an acoustic kit.
The system consists of three durable, road-worthy composite drum sensors with 12 pickup elements�pickup elements are targets applied to your drums for the sensors to detect. Once the pickup elements are installed on a drum (between two lugs), the sensor can be mounted above it, allowing for sophisticated capture of your dynamic performance. The sensors are plugged into the included Portal audio interface via 3.5mm TRS cables, and the interface sports plenty of I/O and controls for it to be used as a standalone audio interface when not drumming. With the Sensory Percussion software, everything can be controlled, including FX, drum zones, I/O routing, and much more. This system includes the Portal audio interface, three drum sensors, 12 pickup elements, the EMAD bass drum adapter, a pair of limited-edition ProMark drum sticks, three special 3.5mm TRS cables for the sensors, and one USB-C cable.

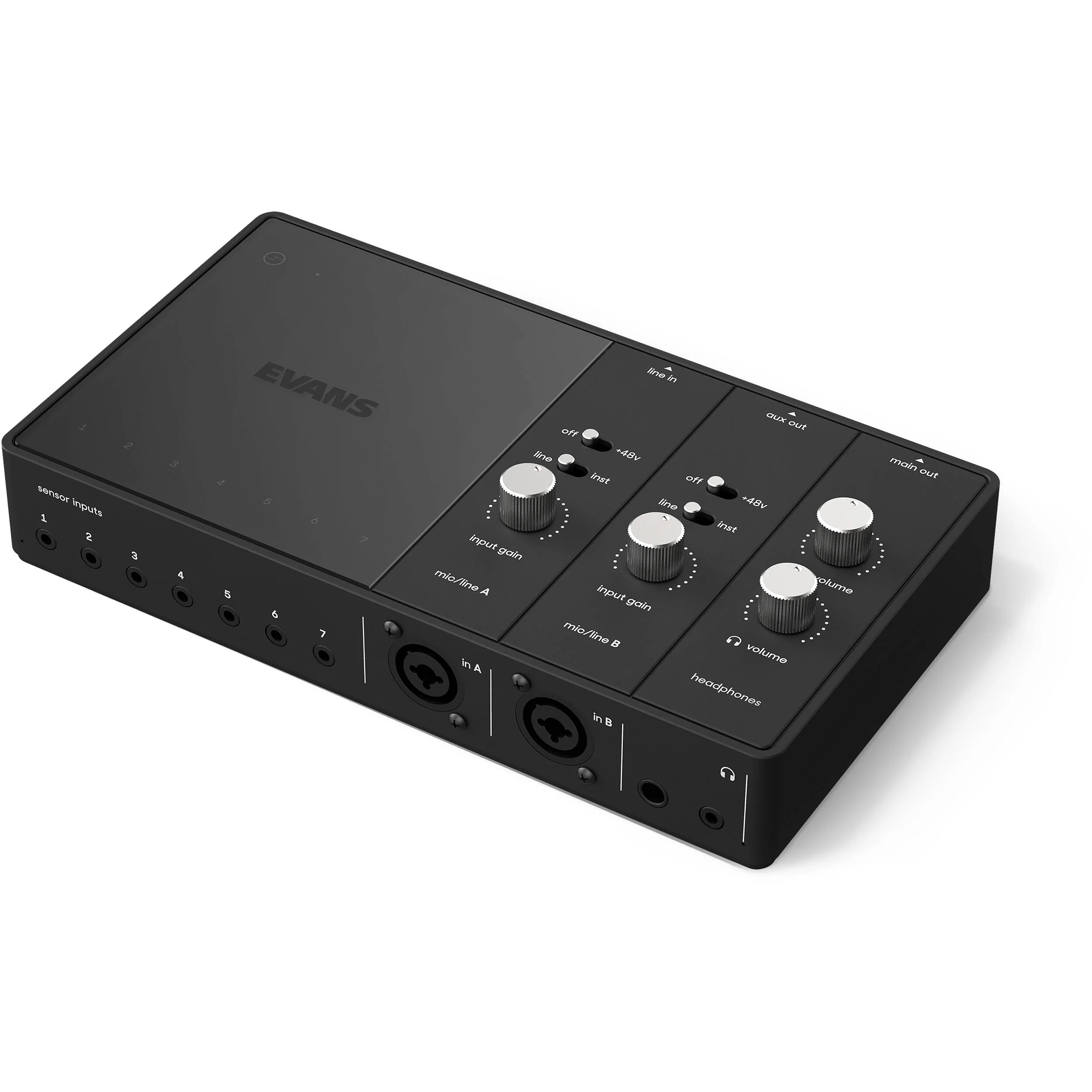

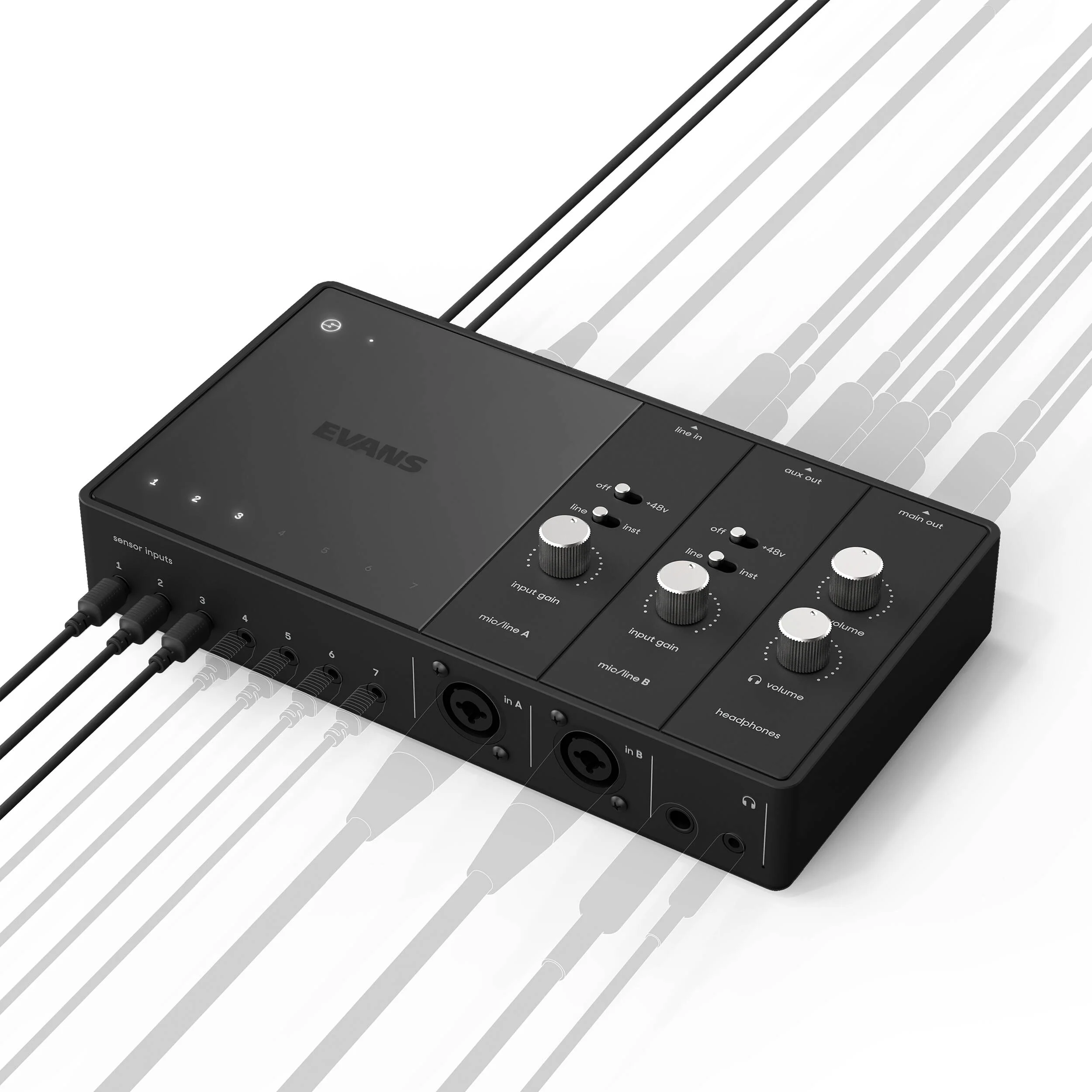

- Seven 3.5mm TRS plug-and-play Sensor inputs, with indicator lights to show a Sensor is plugged in
- Two XLR-1/4" combo mic / line / Hi-Z inputs
- Selectable 48V phantom power for each combo input
- Built-in microphone, which is used by the software for advanced automatic crosstalk cancellation (can also be used as a mic source)
- Separate 3.5mm and 1/4" stereo headphone outputs
- 1/4" TRS left and right main outputs
- Four aux 1/4" outputs (5 to 8)
- Two balanced 1/4" TRS line inputs
- 8-channel ADAT output over optical TOSLINK
- 5-pin DIN MIDI output for sending MIDI signals to non-USB devices
- USB-C for host connections
- Knob controls for combo input channel gain, main volume, and headphone volume

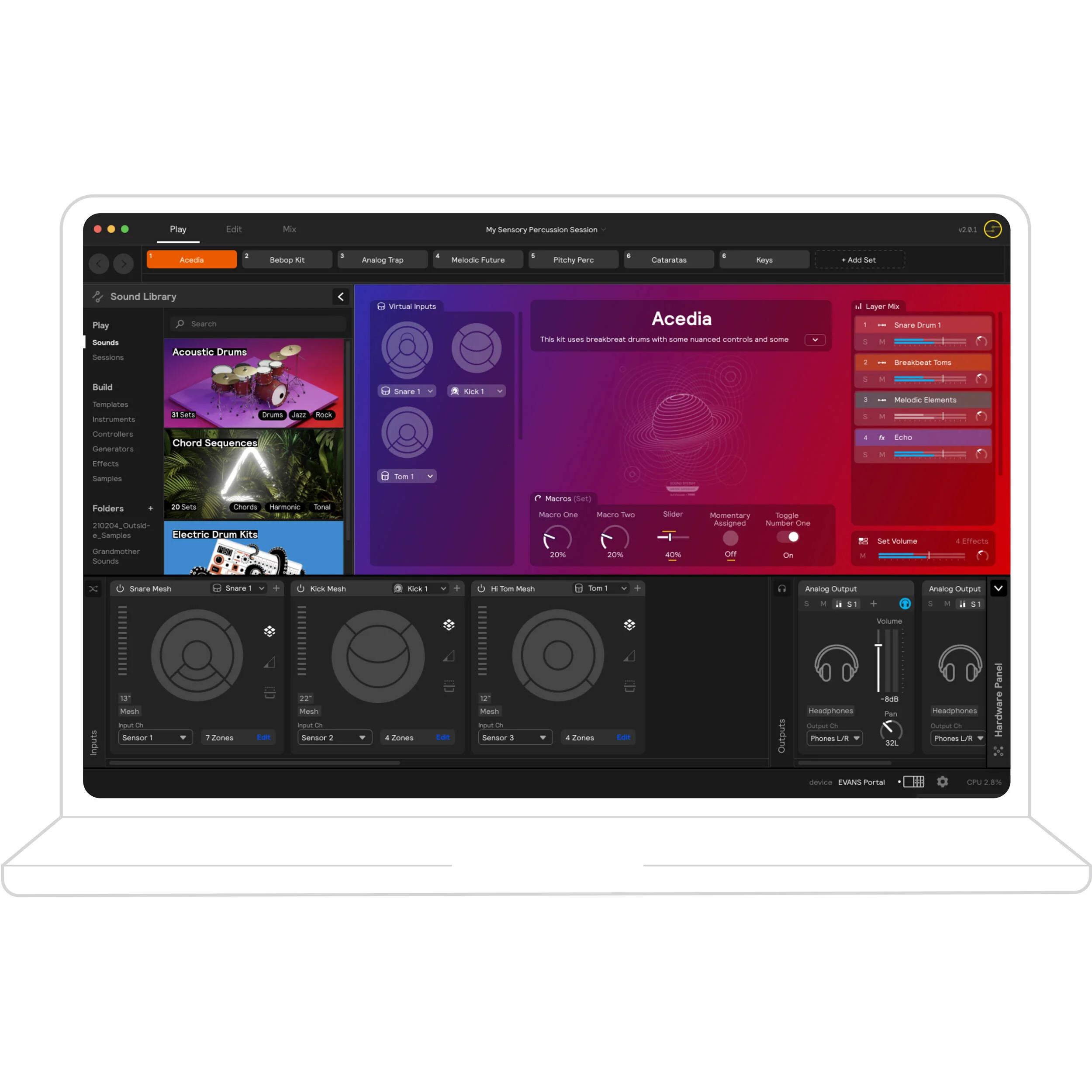

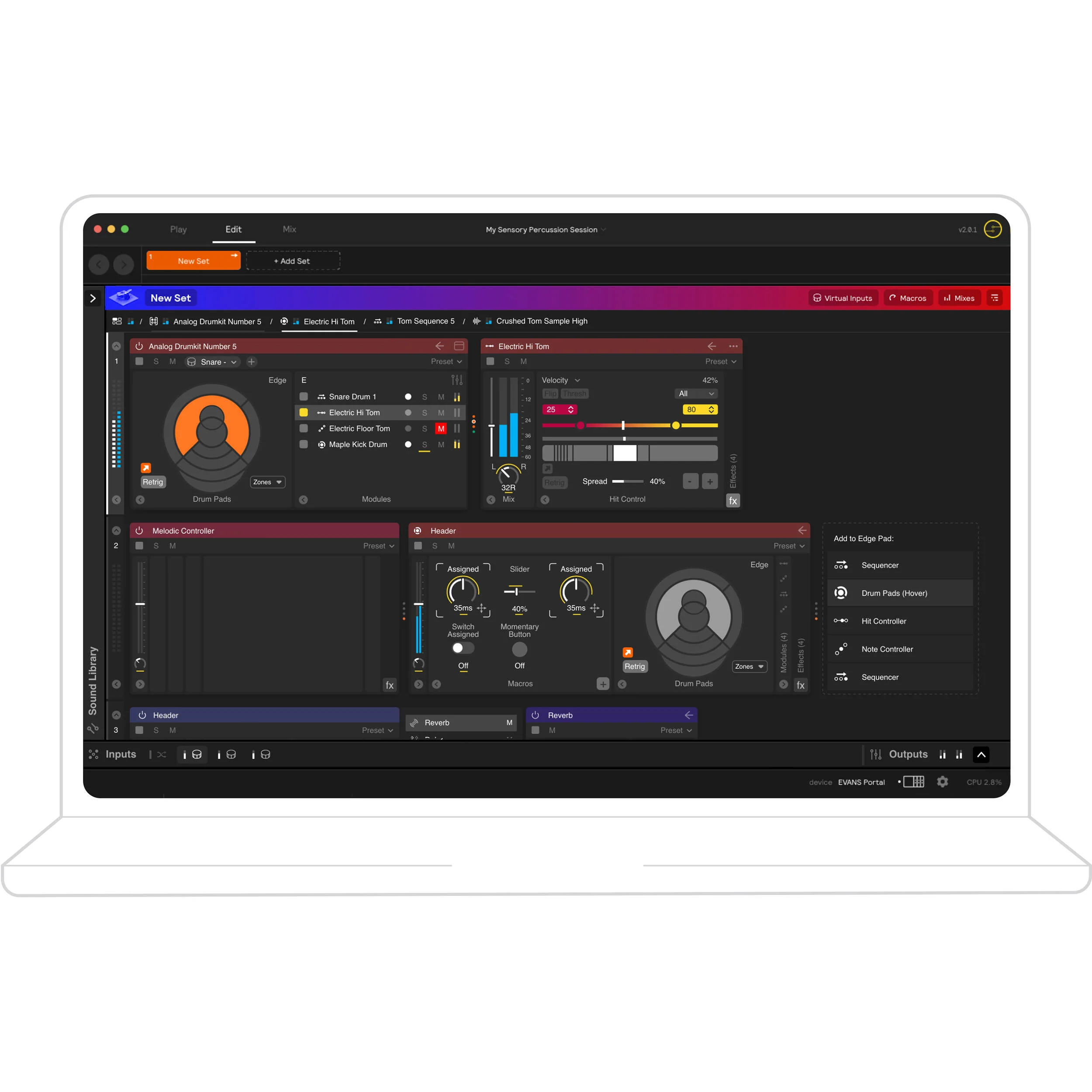

Want to make something super simple and just drag samples into multi-zone pads? That�s easier than ever. Want to create something complicated with nested sequencers and tons of controllers? That�s now possible in a way that never was before.
- Flexible I/O routing
- Integrated FX processing
- A large and continuously expanding sound library with thousands of sounds
- Sequencing, note/chord control, and effect parameters can all be controlled through playing
- Full MIDI integration
- Reimagine, remix, and refine to your heart's content

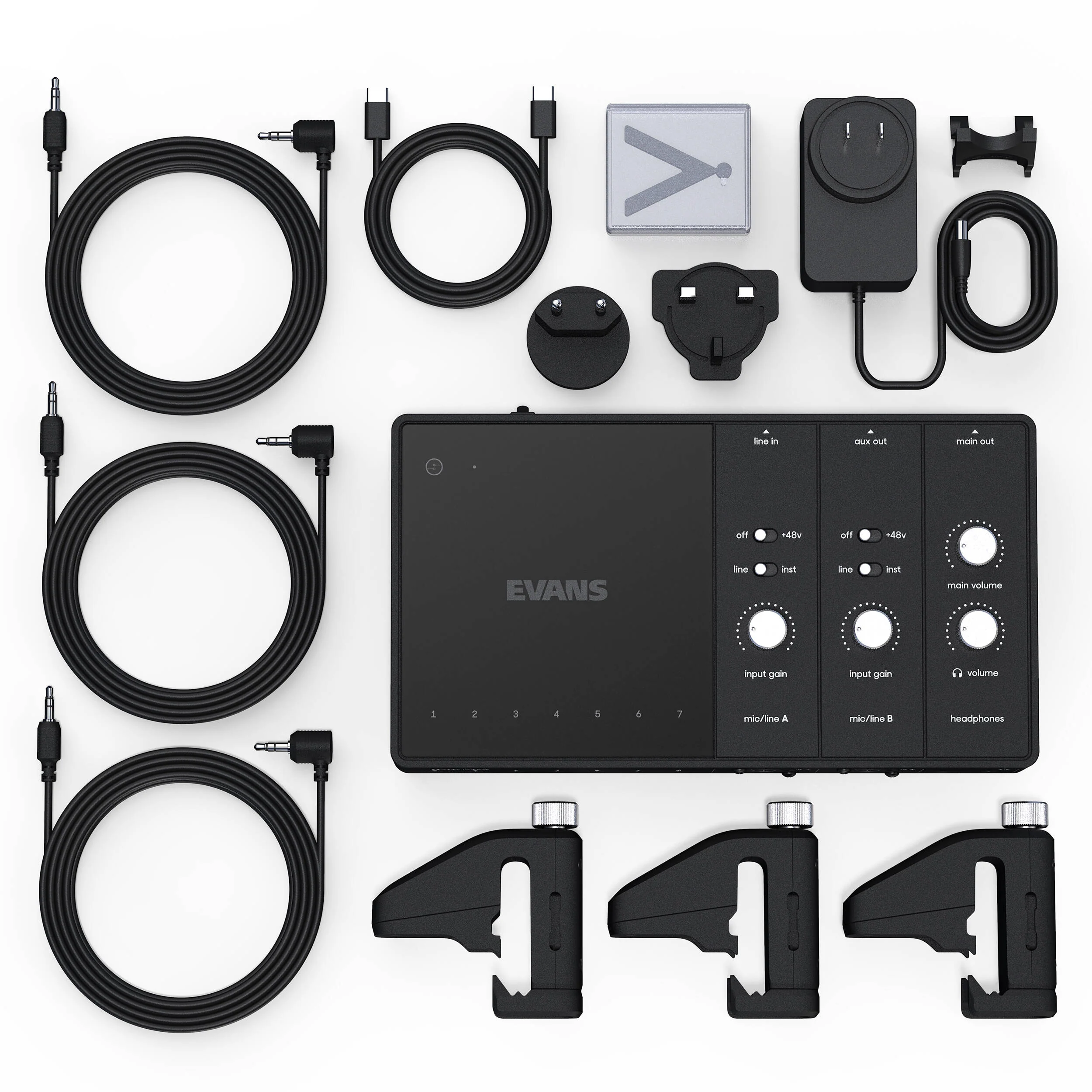

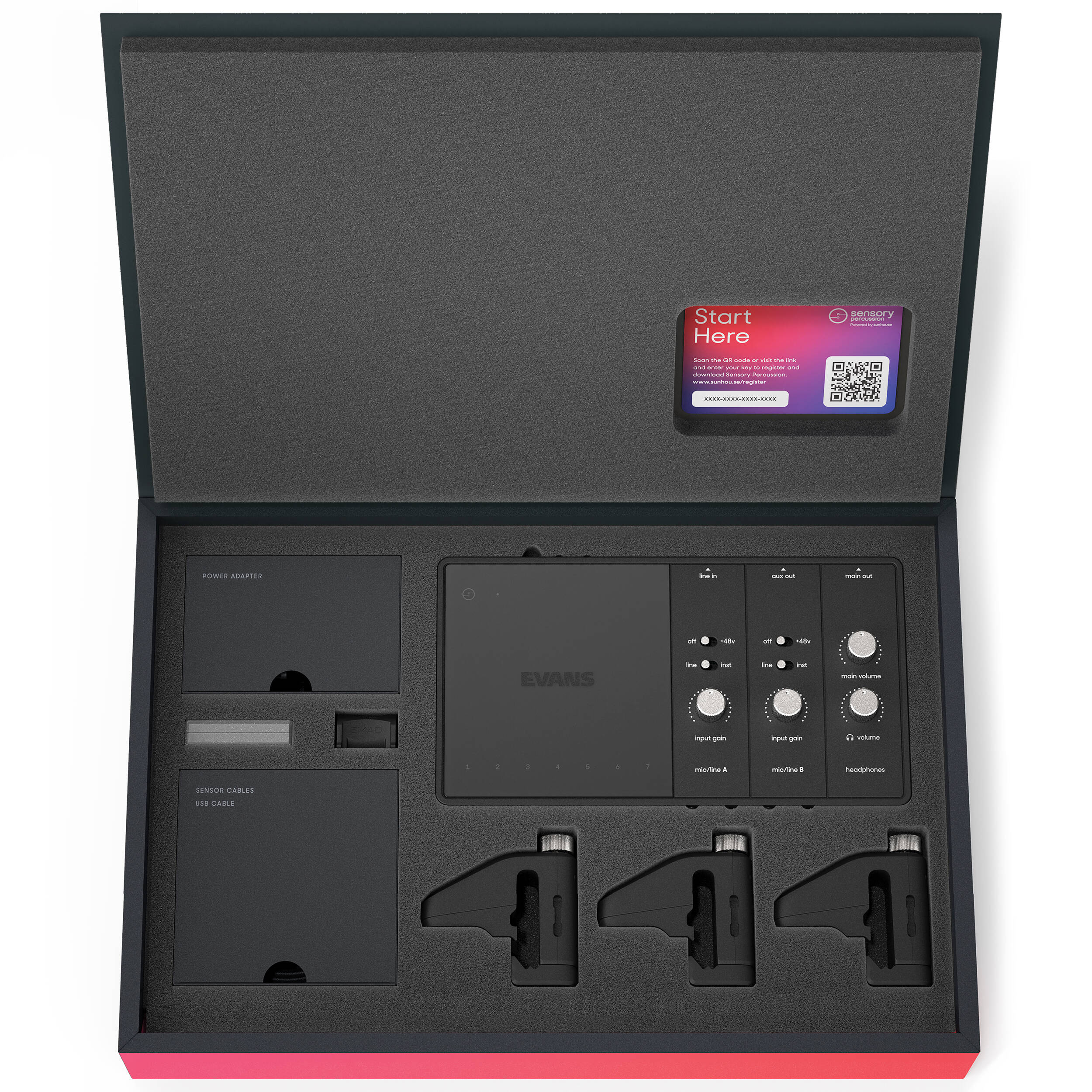

Items Included
- D'Addario EVANS Hybrid Sensory Percussion Sound System for Acoustic Drums
- EVANS Portal Audio Interface
- 3 x Drum Sensor
- 12 x Pickup Element
- EVANS EMAD Bass Drum Adapter
- International Power Adapter
- 3 x 3.5mm TRS Sensor Cable
- USB-C Cable
- Limited-Edition ProMark Drum Sticks
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
D'Addario EHSP-1-BUNDLE Specs
| Software Requirements |
OS: Windows 10 or Later / MacOS Mojave 10.14 or Later
CPU: Intel Core i5 or Later / Apple M1 Chip or AMD Multicore Memory: 8 GB RAM (16 GB Recommended) Storage: 1 GB of Hard Drive Space |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
