Original: $84.97
-70%$84.97
$25.49The Story
- For Cameras without a Vertical Grip
- Black Anodized Aluminum Construction
- Spring-Loaded Tension Pivoting Arm
- Pivoting Arm: Maximum 180° Rotation
- 2x Adjustable Anti-Twist Clips
- Maintenance- & Lubrication-Free Design
- 1/4"-20 Mounting Thread & Posts
- Reversible Comfort Foam Grip
- Made in the USA

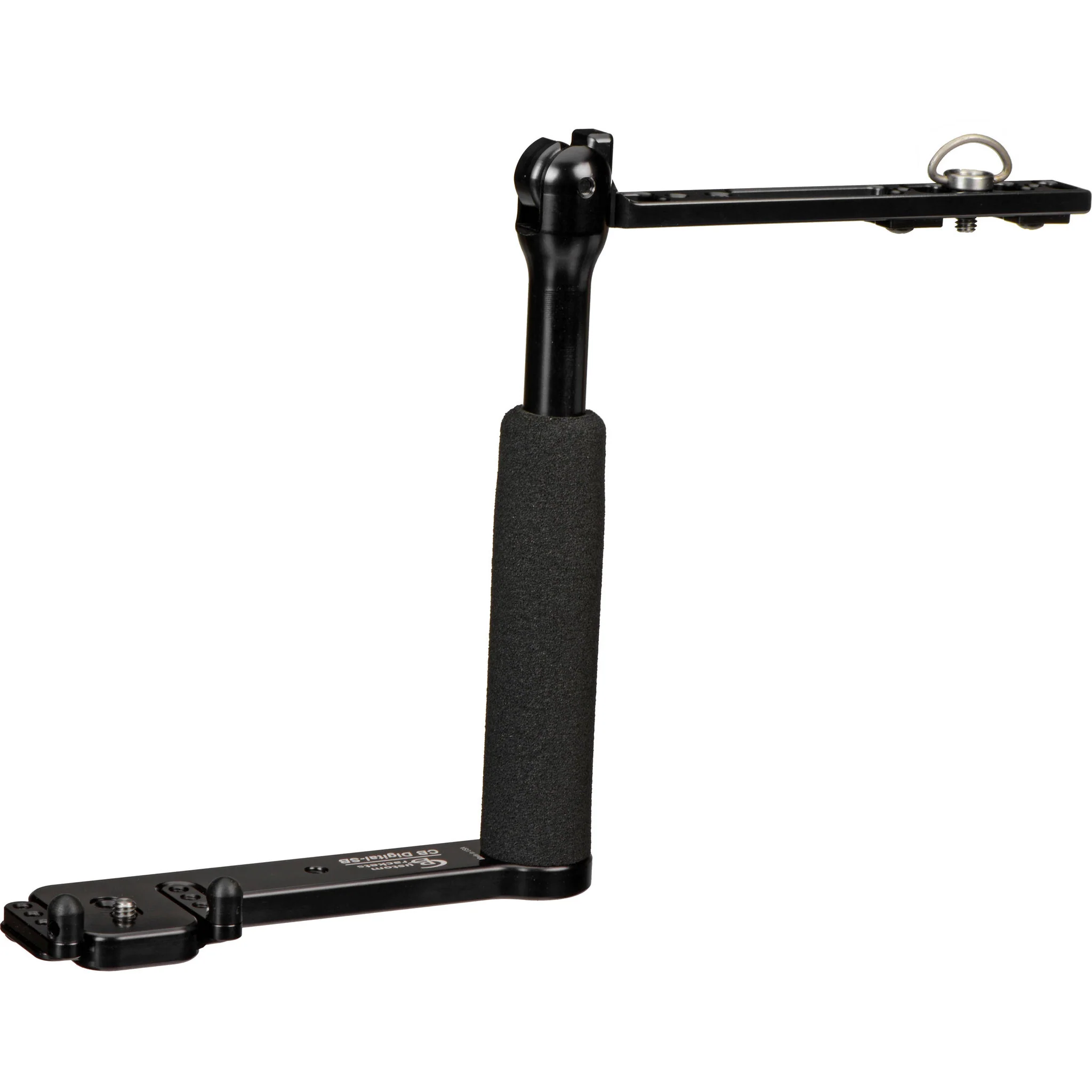

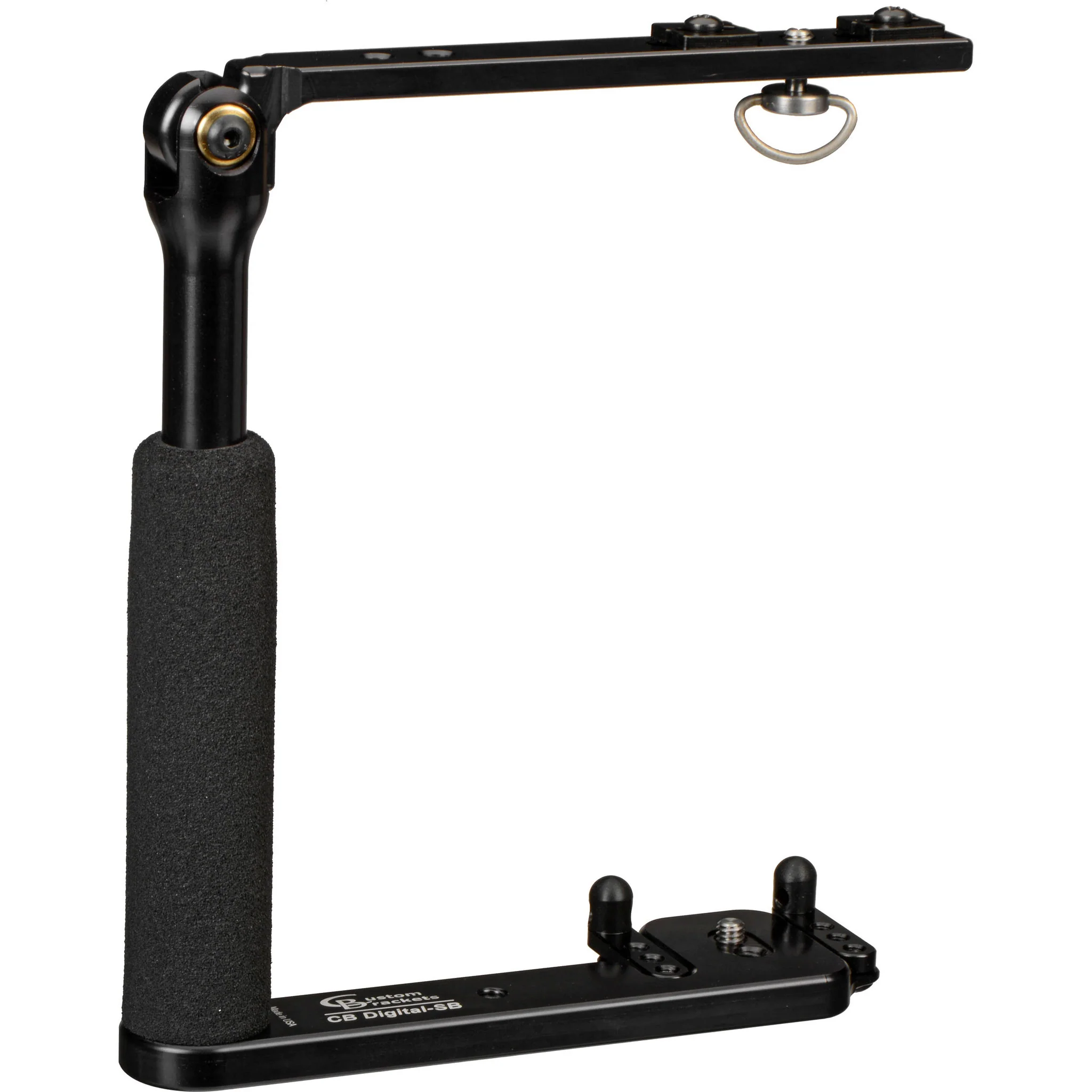

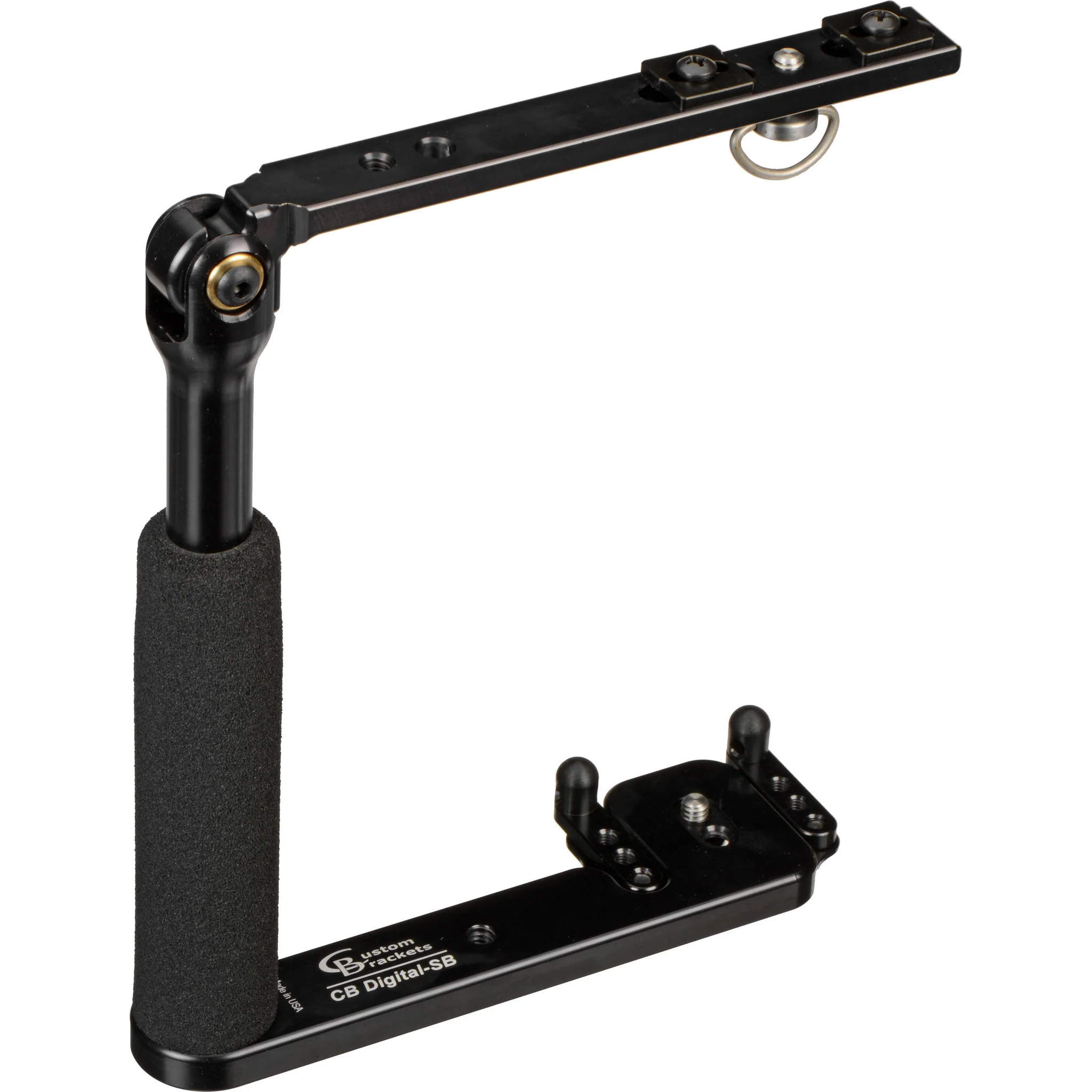

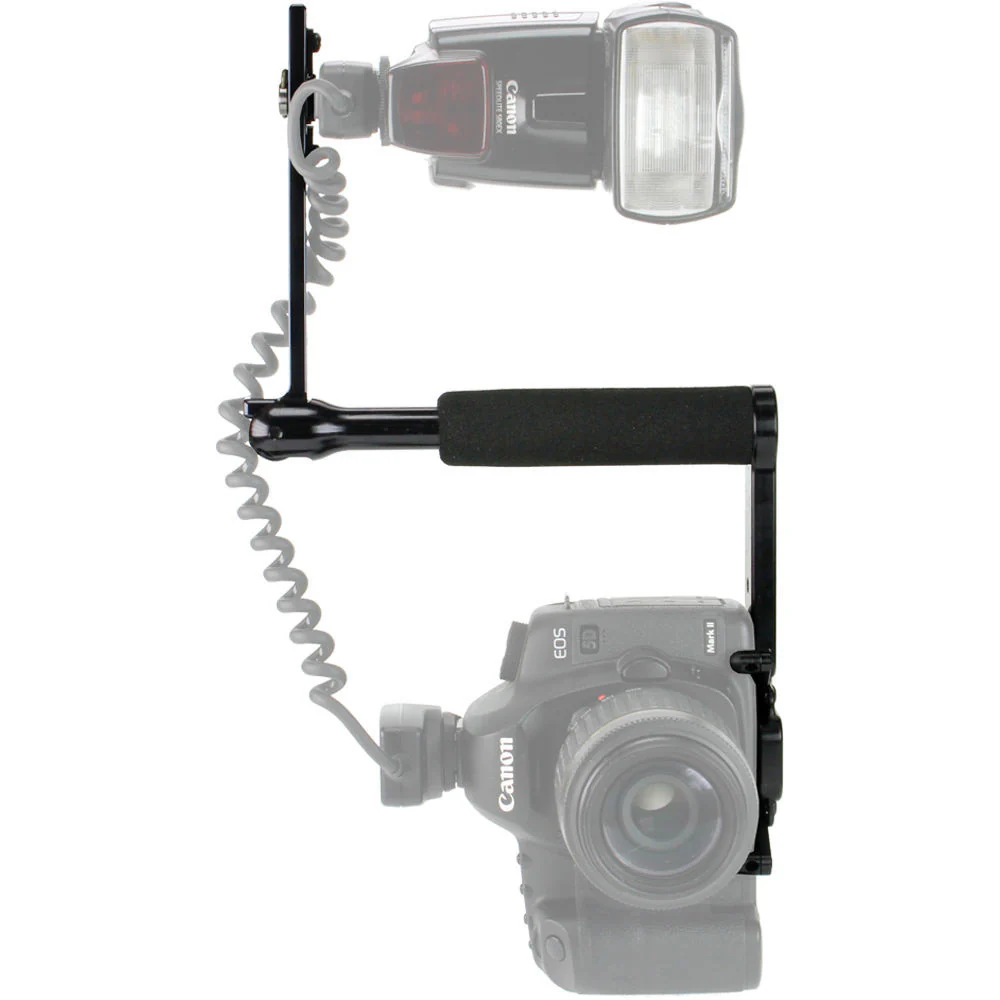

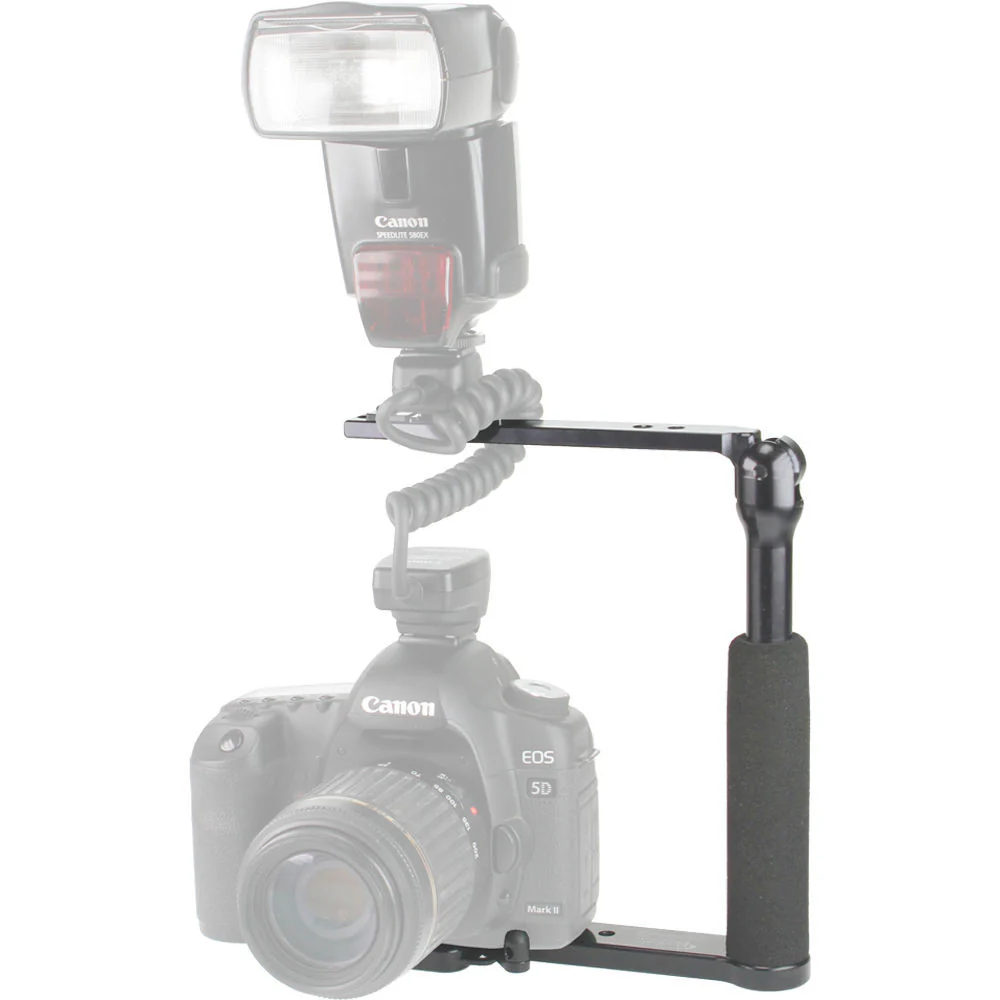

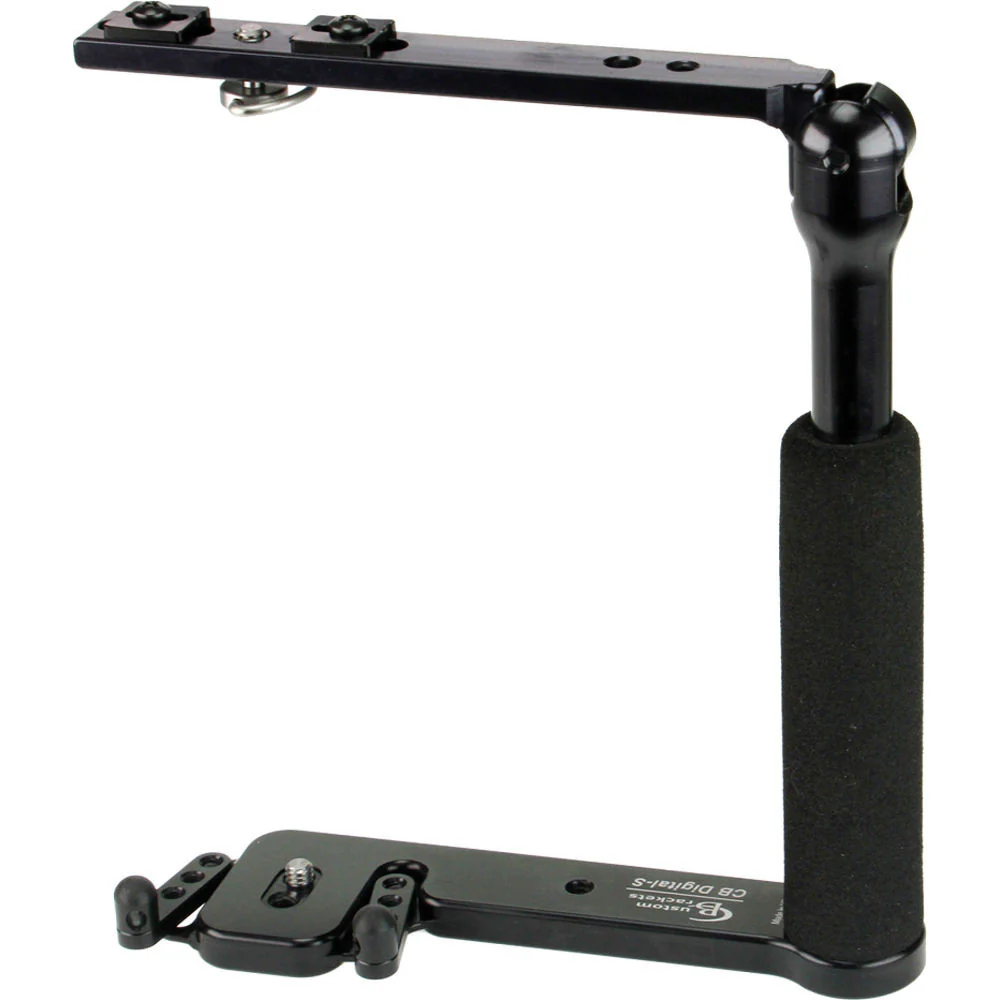

The CB Digital-S Rotating Flash Bracket from Custom-Brackets is an easy-to-use bracket that features a 180° pivoting flash arm that keeps the flash centered above the lens in both horizontal and vertical shooting positions.
Slightly smaller than the Digital-T model, the Digital-S is designed for smaller cameras that do not have a vertical grip. The bracket is built from black anodized aluminum, with two 1/4"-20 posts to mount a camera and a hot or cold shoe, as well as a 1/4"-20 thread to mount the entire system onto a tripod. The camera can be mounted with the comfortable foam grip on either the right or left side.
- Black Anodized Aluminum Construction
- Machined from black anodized aluminum, this bracket offers added strength and versatility with its lightweight materials and black finish.
- Versatile Pivoting Arm
- The pivoting arm has spring-loaded tension, a maximum 180° of rotation, and a 1/4"-20 post to mount a hot or cold shoe. It also has two adjustable clips to keep the flash cord from rotating on the bracket.
- Maintenance- & Lubrication-Free Design
- Designed to be easy-to-use and maintenance-free, you won't need to oil or lubricant.
- 1/4"-20 Screws and Tripod Mount

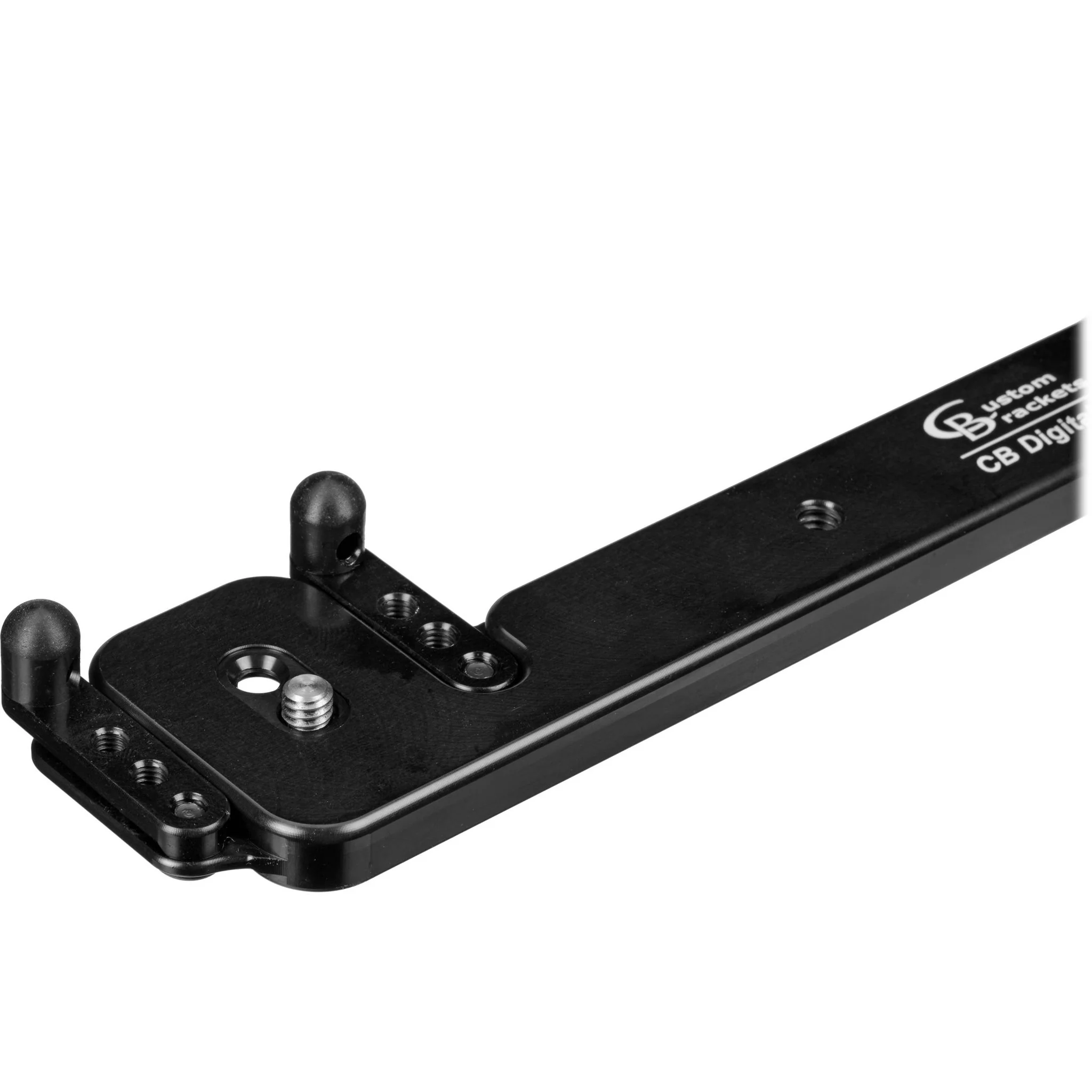

- Two 1/4"-20 threaded D-ring screws allow easy attachment of your camera and a hot or cold shoe for your flash. A female 1/4"-20 thread on the bottom of the bracket lets you attach the bracket to a tripod, monopod, or other support. Two additional female 1/4"-20 threaded holes on the pivoting arm are available for attaching optional accessories, and two mounting holes on the base plate enable attachment of the optional Custom Brackets AT anti-twist bar.
- Lens-To-Flash Distance: 11"
- The bracket's nominal lens-to-flash distance is 11" (30 cm).
| Lens-to-Flash Distance | 11" (27.9 cm) |
| Rotational Angle Range | 180° with spring-loaded tension |
| Mount Type | Two 1/4"-20 male posts One 1/4"-20 female thread |
| Material | Aluminum and foam |
| Dimensions | 8.5 x 7.0 x 1.9" (20.6 x 17.8 x 4.7 cm) |
| Weight | 9 oz (255 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 8.6 x 7.7 x 2.0" |
- Limited 1-Year Warranty
