$15.71
Original: $52.38

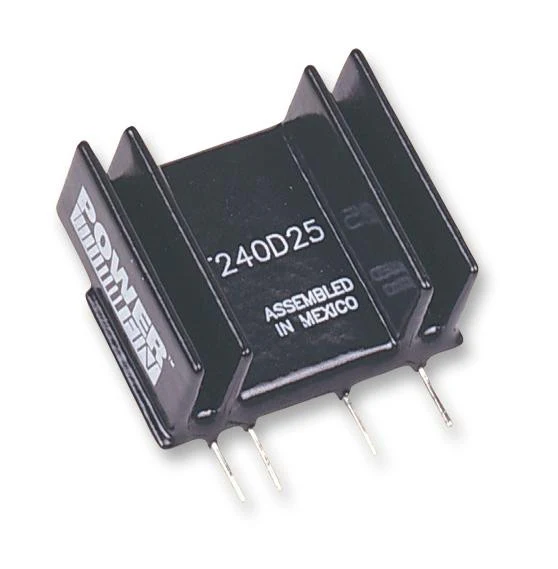

-70%CRYDOM PF240D25 Solid State Relay, PowerFin / PF Series, SIP, SPST-NO, 25 A, 280 VAC, PCB, Through Hole—
$52.38
$15.71The Story
The PF240D25 is a 1-phase Solid State Relay with thermally conductive epoxy encapsulation, SPST-NO contact, zero crossing switching mode and through hole terminals. This PF-series PCB mount relay features integral heat sink gives a ultra high steady current rating, high blocking voltage and low leakage current.
- DC control
- SCR output for heavy industrial loads
- 1.6Vpk Maximum on-state voltage drop
- 300R Nominal input impedance
- 4000Vrms Dielectric strength
- 1/2 cycle ms Turn-on/off maximum time
- -30 to 80°C Ambient operating temperature range
Applications
Industrial
Warnings
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
Product details
| Relay Mounting | PCB |
| Control Voltage Max | 15VDC |
| Load Current | 25A |
| Control Voltage Min | 3VDC |
| Product Range | PowerFin / PF Series |
| Relay Terminals | Through Hole |
| Operating Voltage Min | 12VAC |
| Switching Mode | Zero Crossing |
| Contact Configuration | SPST-NO |
| Operating Voltage Max | 280VAC |
Other details
| Brand | CRYDOM |
| Part Number | PF240D25 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
