$100.71The Story
Cranborne Audio N22H Overview
- 1Description
- 2Reference-Quality Headphone Amplifier for Tacking, Mixing, Mastering
- 3C.A.S.T. Breakout Box
- 4Phantom Power
- 5Powering Flexibility for Standalone and Location Use
- 6Key Features

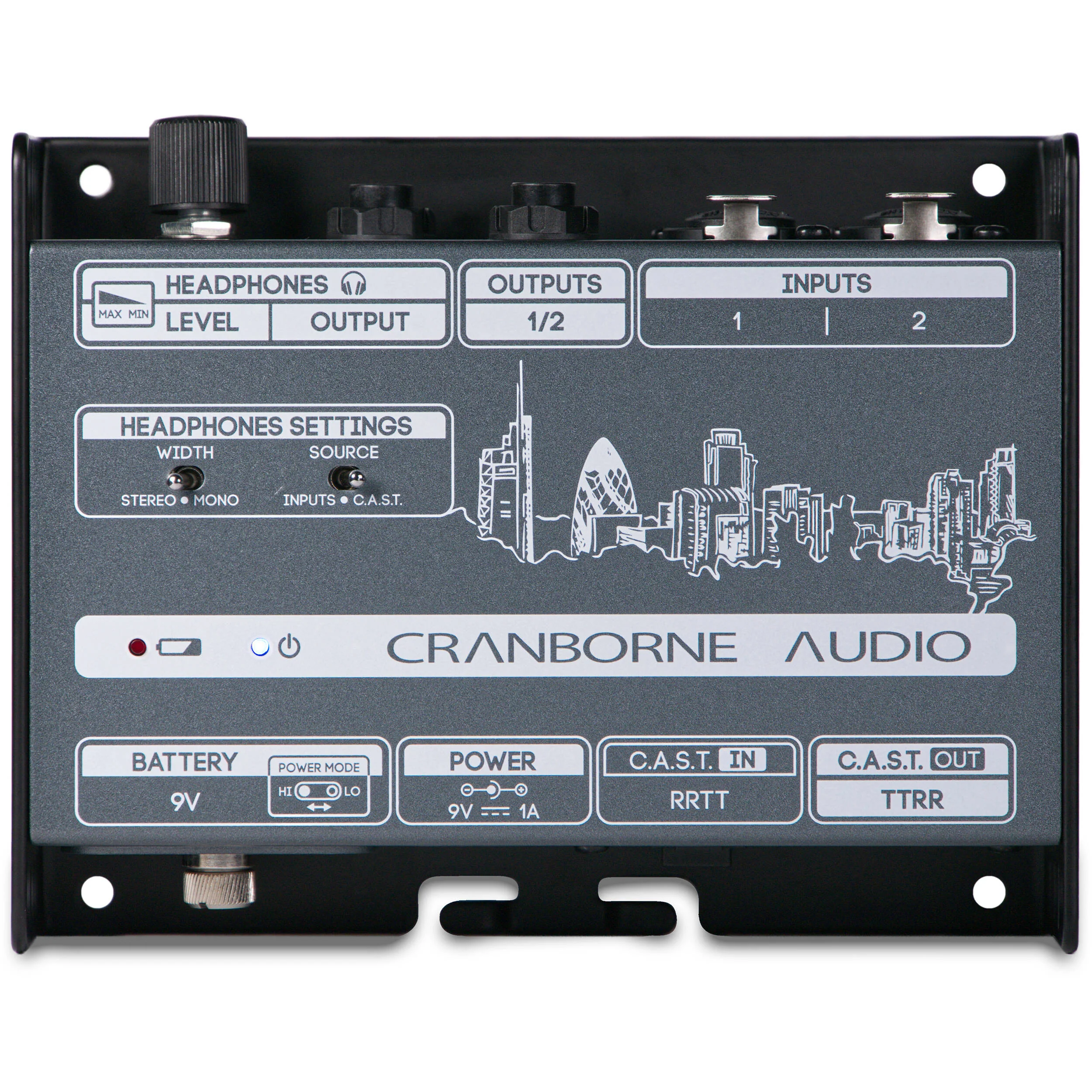

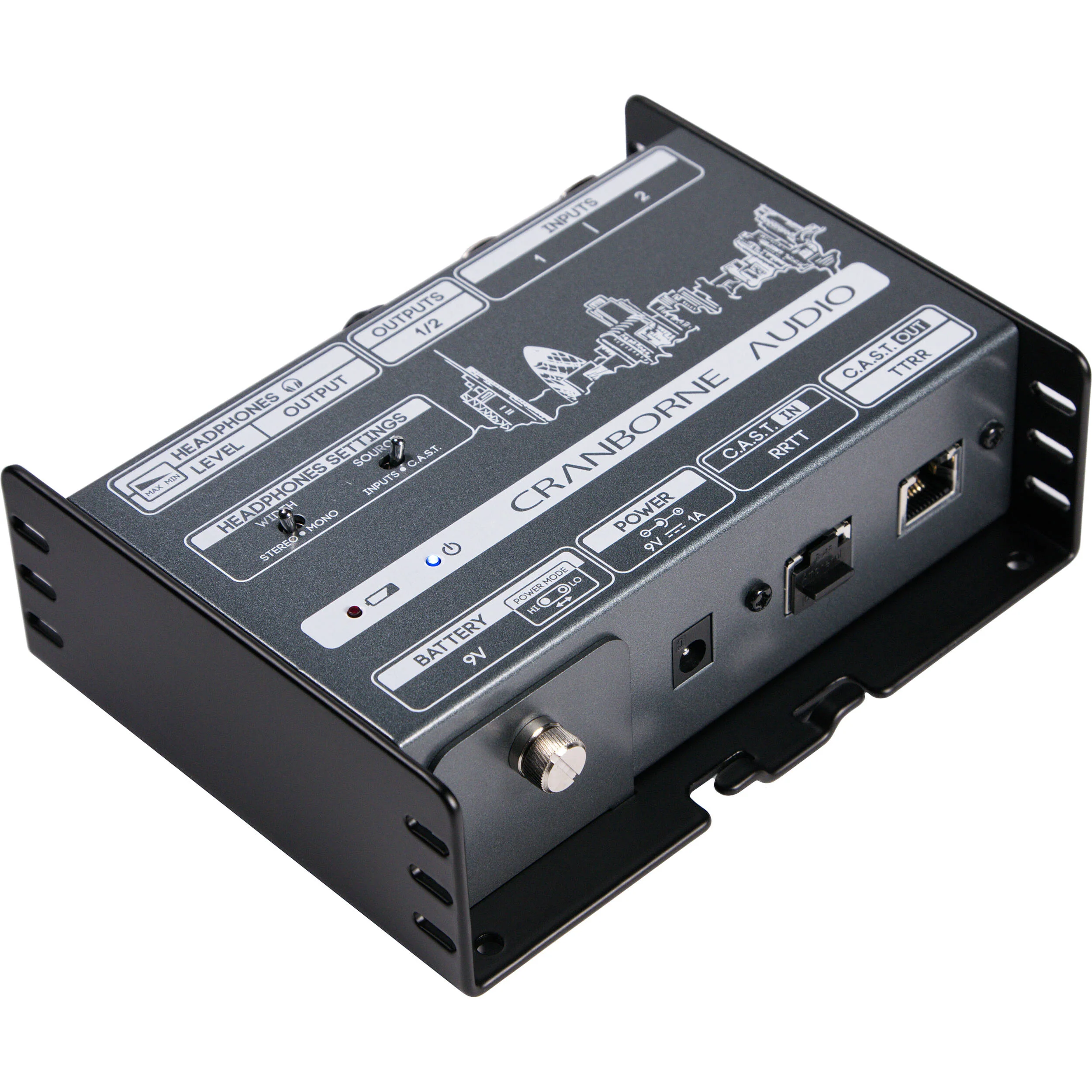

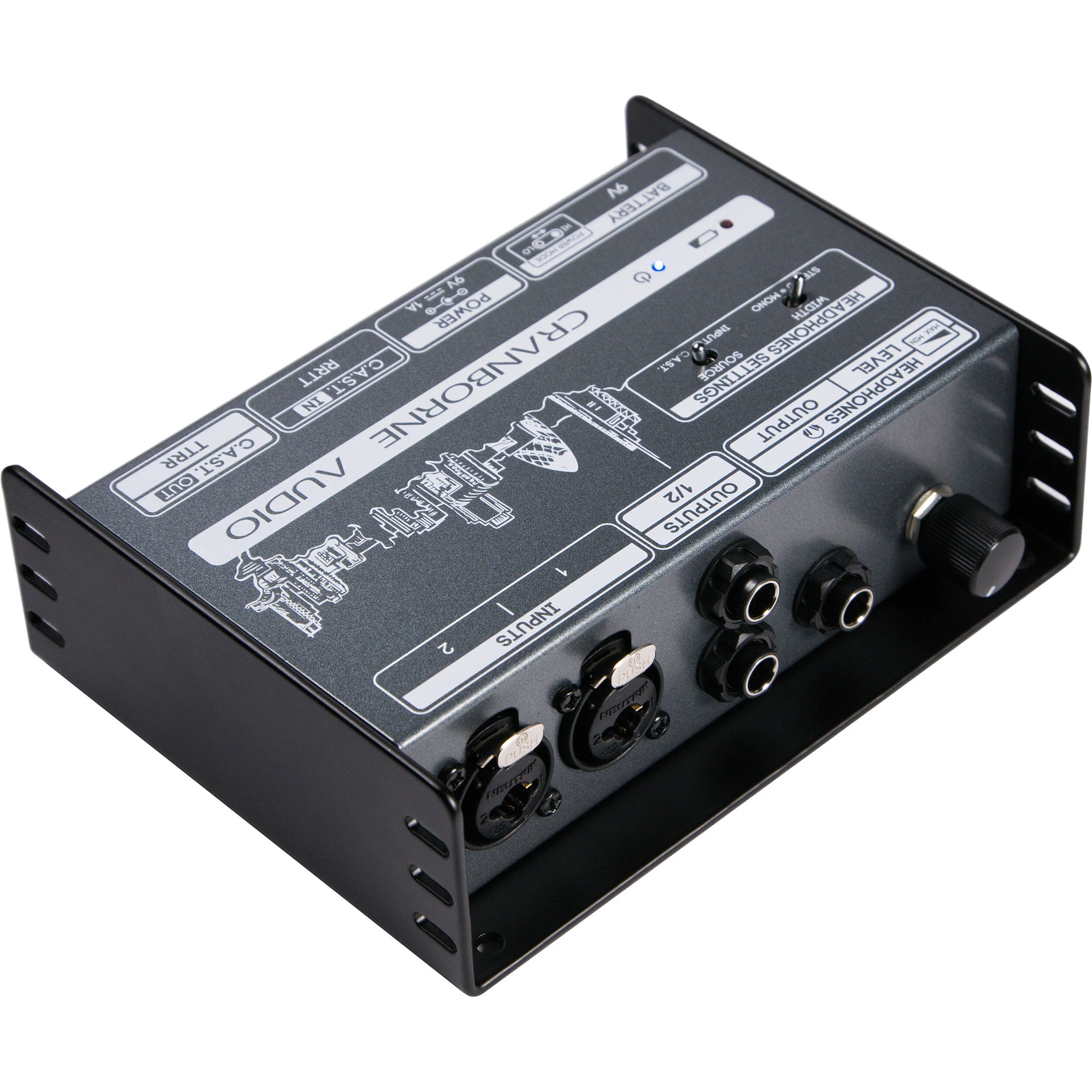

Cranborne Audio N22H Headphone Amplifier and C.A.S.T. Breakout Box combines the company's C.A.S.T. cable management system with a reference-grade, high-power headphone amplifier for use with a wide range of headphones and earphones during tracking, mixing, and mastering. It provides analog-snake solutions for unique and complex routing with plug-and-play simplicity, packed in a rugged steel enclosure.
N22H can be deployed exactly where it is needed, allowing you to put the headphone mix right beside the musician, while also providing you with stagebox connectivity for two microphones or other audio sources during tracking (requires N22 Cat 5 snake and C.A.S.T. breakout box and a Cat 5e, 6, or 7 cable�all available separately).
N22H can also be used as a standalone headphone amp. Simply connect the line outputs of your audio interface, guitar pedalboard, mixer, keyboard, or outboard hardware directly into N22H's inputs, set the Source switch on N22H to Inputs, and you are ready to use N22H for all of your headphone-monitoring needs. N22H is also designed to work with any other C.A.S.T. enabled device like the 500R8, 500ADAT, or Camden EC2.
- N22H's headphone amplifier is based on the same custom design found in the company's renowned 500R8 interface.
- With a flat frequency response ranging from 0.8 Hz to above 250 kHz and ultralow distortion (0.0009% THD+N, 100 Kilohm load), it can easily power headphones with clean, transparent power�perfect for critical listening, mixing, and mastering.
- There�s also enough power (up to 950mW per ear) to drive headphones at high-volumes during tracking�perfect for loud drummers.
- With carefully calibrated High- and Low-Power Modes, N22H can be quickly optimized for maximum performance with high-impedance, over-ear headphones or low-impedance, in-ears at a flick of a switch.

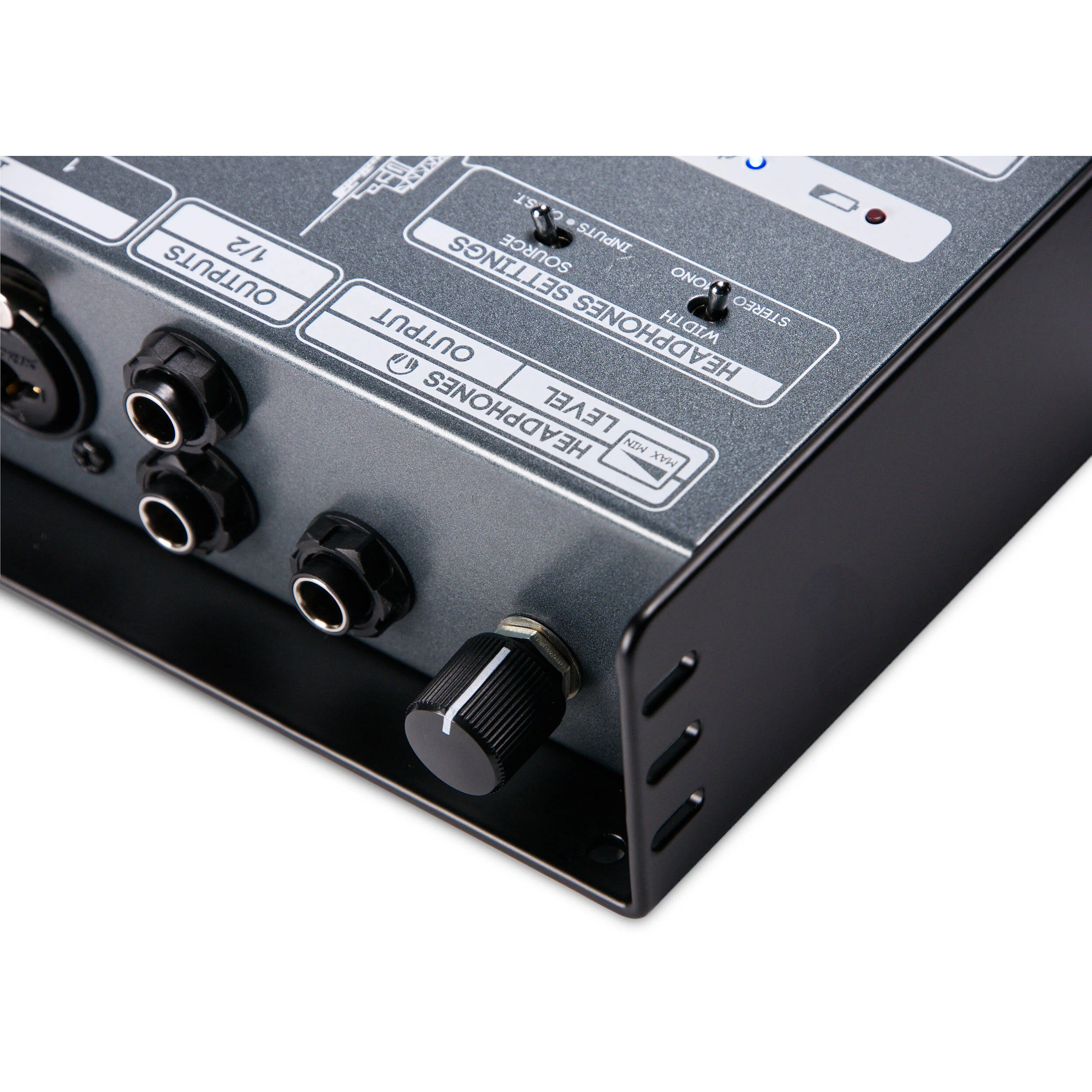

- A custom logarithmic Headphone Level volume knob also allows for precise control of the headphone output without big shifts in volume during small adjustments.
- Choose between Mono or Stereo monitoring modes.
- The C.A.S.T. system uses the internal wirering of a shielded Cat 5e, Cat 6, or Cat 7 cable to distribute balanced analog audio around studios or stages up to 330'�without high-end roll-off and with very low crosstalk.
- C.A.S.T. reduces cable clutter in your work space, replacing the equivalent of four XLR cables with a single, affordable, and readily available network cable.
- The C.A.S.T. system is capable of transferring 48V phantom power from a preamp to the N22H for powering condenser microphones and DI boxes. One C.A.S.T. cable can easily transfer up to 4 separate phantom power lines in your studio or live space.
- N22H can be powered using the included 9 VDC power supply as well as any third-party 9 VDC (centre negative) guitar-pedal power supply.
- It can also be powered using a 9V battery for up to 10 hours of headphone amplification in Low Power mode during tracking and location recording where power isn�t available nearby.
- Reference-quality headphone amplifier
- THD+N: <0.0009% (-100.4 dB) at +6 dBu, 1 kHz, A-weighted, 100 kilohm load
- Output Wattage (1 kHz): 252mW x 2 at 600 ohms, 502mW x 2 at 220 ohms, 950mW x 2 at 100 ohms, 470mW x 2 at 32 ohms
- Frequency Response: 1 dB, <0.8 Hz to >200 kHz
- Switchable High and Low Power modes
- High Power Mode: optimized for maximum power and performance with high-impedance over-ear and open-back mixing/mastering headphones
- Low Power Mode: optimized for maximum battery life with low-impedance in-ears and closed-back tracking headphones
- 9V Battery compartment
- Up to 10 hours battery life (Low Power mode)
- Up to 2 hours battery life (High Power mode)
- Includes a 9 VDC (centre negative) power supply
- Can be powered with any 3rd party 9 VDC (centre negative) guitar pedal power supply (1000mA supply recommended)

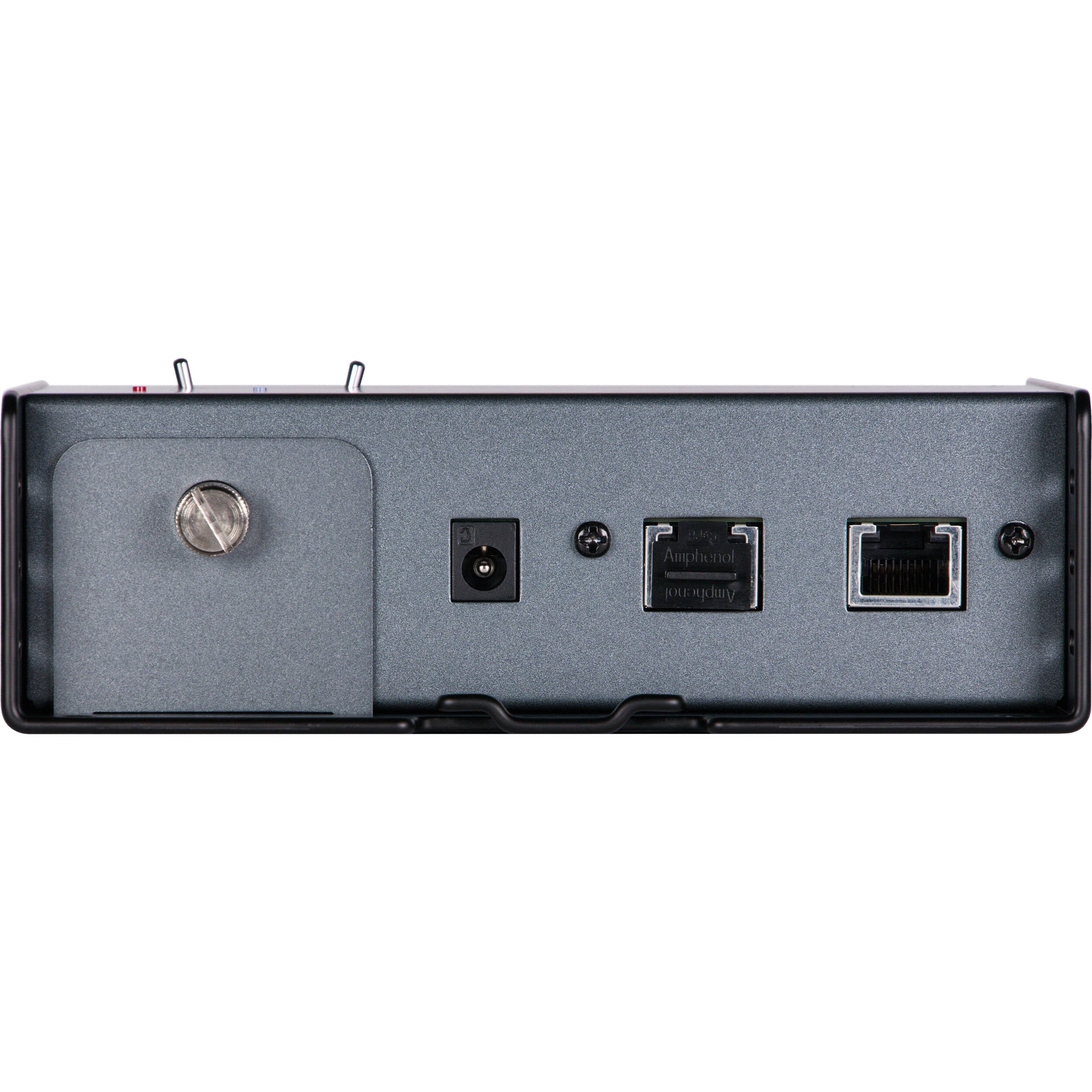

- C.A.S.T IN RRTT Port: for connecting to the C.A.S.T. Output of N22 or other C.A.S.T. enabled devices
- C.A.S.T OUT TTRR Port: for connecting to the C.A.S.T. Input of 500R8, 500ADAT or other C.A.S.T.-enabled devices, or second N22H
- Compatible with any shielded Cat 5e / Cat 6 / Cat 7 cable with distances up to 330'
- Improved crosstalk performance with high-performance Cat 6 and Cat 7 (recommended)
- Rugged metal enclosure
- Fixing holes for permanent installation
- Cable-tie holes for cable management
- Nonslip rubber feet
- 3/8"-16 mic-stand thread mount on bottom
In the Box
- Cranborne Audio N22H Headphone Amplifier and C.A.S.T. Breakout Box
- Power Supply
- Limited 2-Year Manufacturer Warranty
- Description
- Reference-Quality Headphone Amplifier for Tacking, Mixing, Mastering
- C.A.S.T. Breakout Box
- Phantom Power
- Powering Flexibility for Standalone and Location Use
- Key Features
Cranborne Audio N22H Specs
| Compatibility |
Cranborne Audio C.A.S.T. Enabled Devices
|
| Audio I/O |

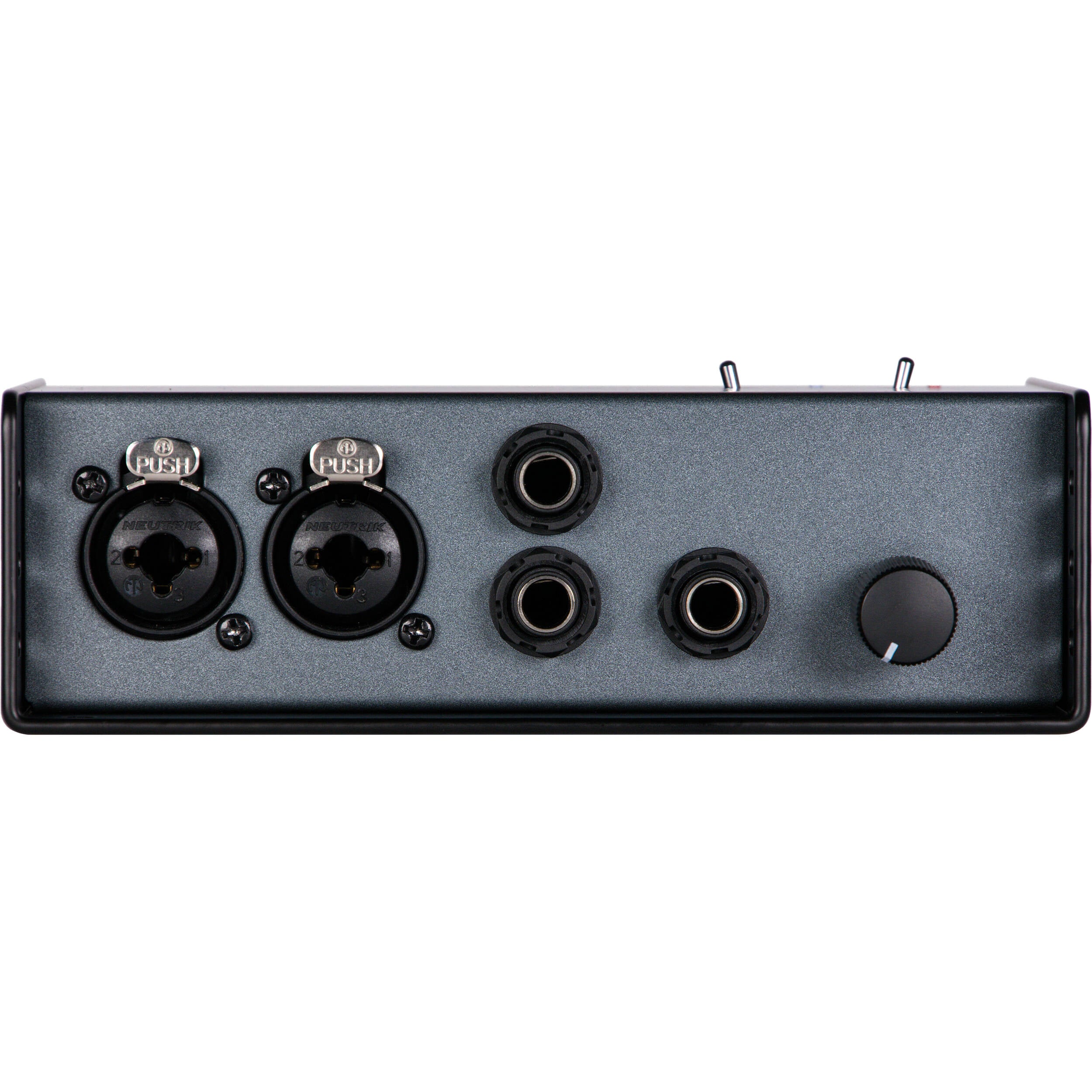

2x Combo XLR-1/4" 3-Pin Input (Balanced Mic/Line)
1x 1/4" TRS Headphone Output 1x 1/4" TRS Line Output |
| Power Source |
AC Adapter with Power Brick (Included), Battery (Not Included)
|
| Battery Type |
1x 9 V
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
9 VDC at 500 mA
|
| Operating Temperature |
33 to 95°F / 1 to 35°C
|
| Storage Temperature |
-4 to 122°F / -20 to 50°C
|
| Mounting |
1 x 3/8"-16 Thread
|
| Color |
Black
|
| Material of Construction |
Steel
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
9.8 x 7.9 x 5.9" / 25 x 20 x 15 cm
|
| Weight |
2.01 lb / 0.91 kg
|
| Package Weight |
2.875 lb
|
| Box Dimensions (LxWxH) |
10.4 x 7.9 x 4.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
