$220.18The Story
- Supports 32 to 60" Displays up to 125 lb
- 200 x 200 to 400 x 800mm Mount Patterns
- Provides -5 to 20° Tilt Adjustment
- Lockable Tilt at 0, 5, 10, & 15°
- Provides ±3° of Roll Adjustment

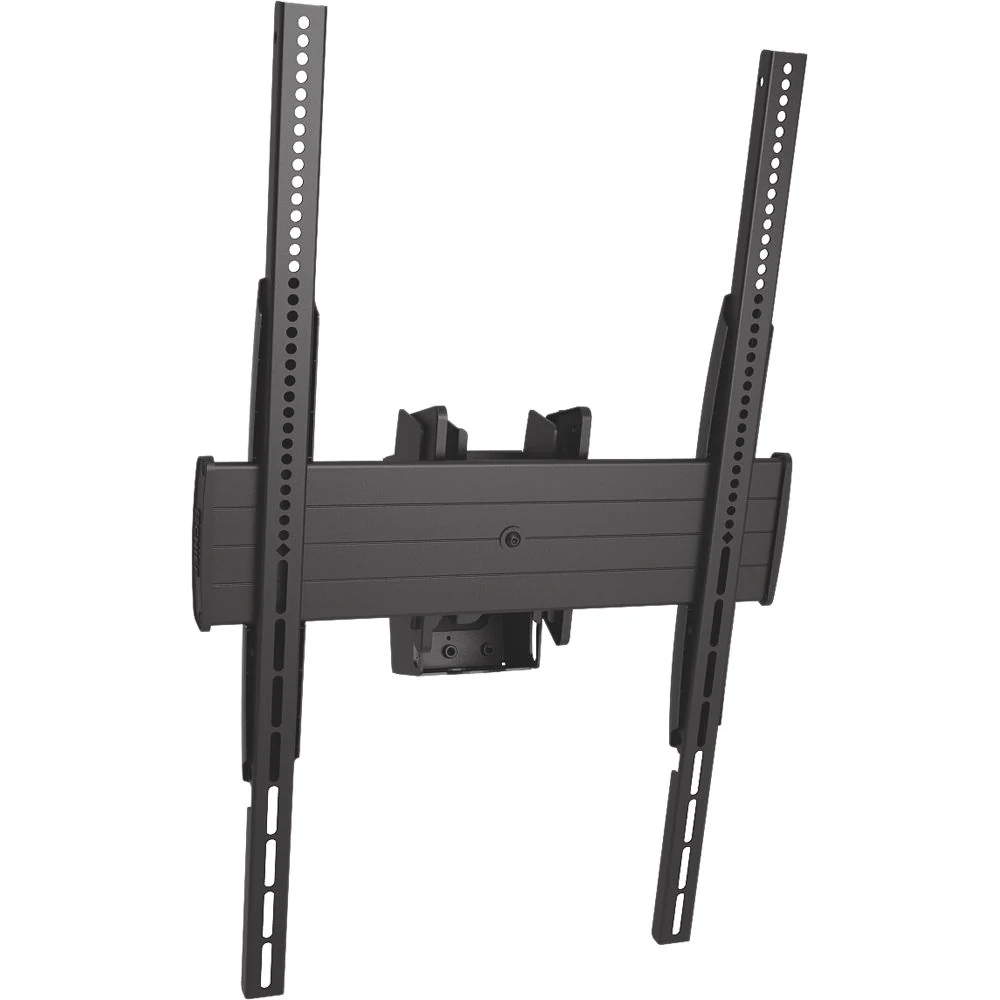

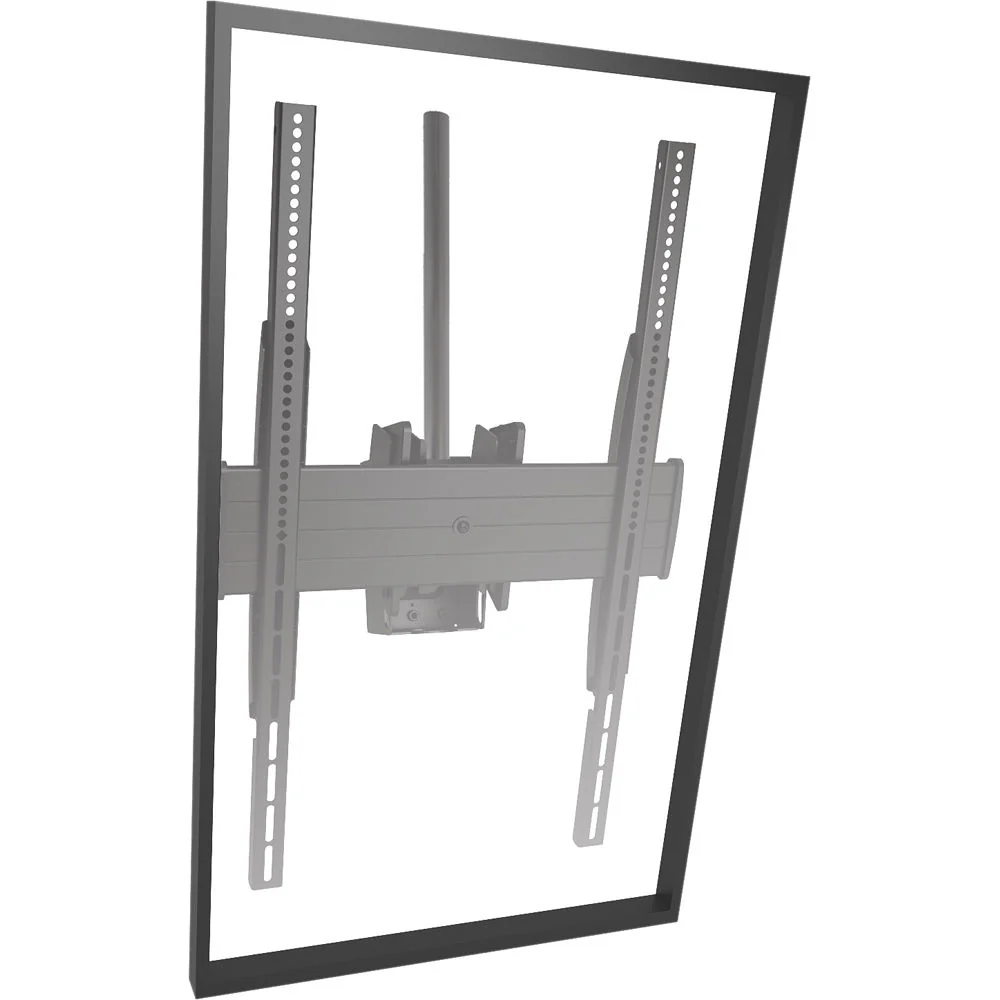

Mount your 32 to 60" display weighing up to 125 lb to the ceiling with the black Chief Fusion-Series LCM1UP Ceiling Mount . It supports displays with 200 x 200 to 400 x 800 mounting patterns and holds your display in portrait orientation. Adjustment options include -5 to 20° of tilt and ±3° of roll. The mount will attach to separately sold 1.5" NPT and select Chief CPA pinned ceiling plates and column systems.
Note: Extension column and ceiling plate are required and sold separately. The LCM1UP mount is designed to be mounted to a 1.5" NPT or a Chief CPA-Series extension column, both of which are sold separately.
-
- Provides continuous tilt ranges with four set locking points at 0, 5, 10, and 15° to eliminate guess work when adjusting multiple screens
- Simple on/off connection design to ease installation and service
- Designed for effortless adjustment using Centris fingertip tilt technology
- Tool-free screen engagement with interface for optional padlock
- Mount swivels on extension column to your preferred viewing angle
Chief LCM1UP specs
| Compatibility | Traditional 1.5" (3.8 cm) NPT and select CPA pinned ceiling plates and column systems |
| Screen Size Supported | 32 to 60" (81.3 to 152.4 cm) |
| Weight Capacity | 125 lb (56.7 kg) |
| Mounting Pattern | 200 x 200 to 400 x 800 mm |
| Tilt Adjustment | -5 to 20° |
| Roll Adjustment | ±3° |
| Orientation | Portrait |
| Dimensions (W x H x D) | 20.84 x 32.5 x 6.37" (52.94 x 82.55 x 16.17 cm) |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 26.0 lb |
| Box Dimensions (LxWxH) | 36.0 x 24.0 x 8.0" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
