$2.88
Original: $9.59
-70%CHERRY 0E69-40A0 Pushbutton Switch, Off-(On), SPDT, 250 V, 10 A, Quick Connect, Solder—
$9.59
$2.88The Story

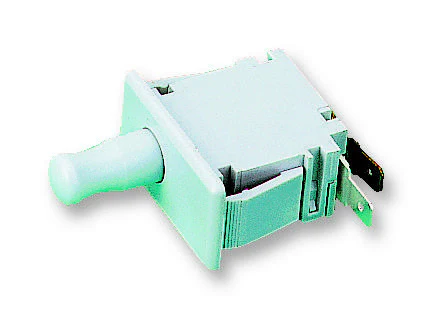

The 0E6940A0 is a single-pole double-throw (SPDT) panel-mount Pushbutton with thermoplastic acetal short actuator and ON function. The E69 series switch has long life coil spring and snap action mechanism. It has silver alloy contacts, brass quick connect/solder terminal and thermoplastic polyester case.
- 4.8 x 0.5mm Quick connect terminal
- UL94V-0 Flammability rating
- -40 to 85�C Temperature range
Applications
Industrial
Product details
| Contact Voltage DC Nom | - |
| Switch Operation | Off-(On) |
| Contact Voltage AC Nom | 250V |
| Switch Terminals | Quick Connect, Solder |
| Contact Configuration | SPDT |
| Product Range | Short Button Momentary Action Series |
| Contact Current Max | 10A |
Other details
| Brand | CHERRY |
| Part Number | 0E69-40A0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
