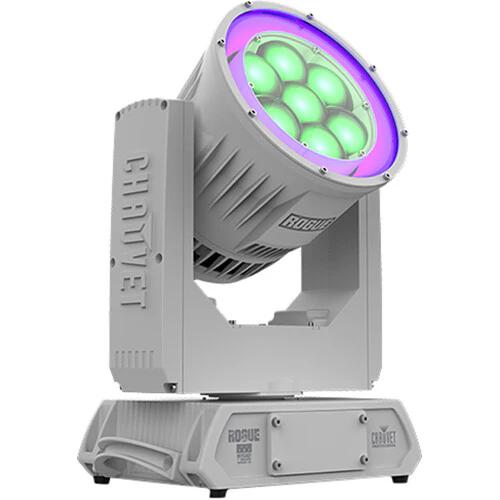

CHAUVET Professional Rogue Outcast 1 BeamWash M RGB LED Uplight Fixture with LED Ring
HomeStore

CHAUVET Professional Rogue Outcast 1 BeamWash M RGB LED Uplight Fixture with LED Ring

CHAUVET Professional Rogue Outcast 1 BeamWash M RGB LED Uplight Fixture with LED Ring

$1,641.41

Original: $5,471.37

-70%
CHAUVET Professional Rogue Outcast 1 BeamWash M RGB LED Uplight Fixture with LED Ring—

$5,471.37

$1,641.41

The Story

CHAUVET Professional Outcast 1 Beamwash M Overview

Designed for outdoor lighting, the Rogue Outcast 1 BeamWash M RGB LED Uplight Fixture with LED Ring from CHAUVET Professional combines a wash fixture and RGB LED ring light for extended outdoor usage in and near marine environments. The main light is constructed with seven 45W RGBW LEDs and its ring light is made with 97 0.2W RGB LEDs to produce a spectrum of colored light.

With an adjustable 9.1° to 32.3° beam angle and user-selectable 7500K calibrated white light at full power, the fixture offers fine-tuning options to craft precise outputs. Designed for permanent outdoor installations and IP66-rated, the fixture can withstand extreme weather conditions and exposure to marine and saline environments while producing a powerful 15,308 lux at 16.4' with its 3.9° beam angle. A versatile fixture, users can adjust the 4-curve, 6-mode, 16-bit dimming, standalone color mixing, and built-in automated programs with simple RDM and 6-mode DMX controls. Easily mount the fixture with its two Omega brackets, mounting hardware, and yoke. The light includes a display cover for additional protection.

Expansive Outdoor Lighting Options
Delivering a range of brightness and color outputs, the Rogue Outcast 1 is ideal for illuminating extreme outdoor spaces, including marine environments. With a zoom range of 3.9° to 55.3° and an adjustable LED ring, the fixture offers extensive lighting options within a compact and IP66-rated weather-resistant housing. Constructed fully from aluminum with stainless-steel gland nuts, the fixture is finished with a C5M paint application process for additional weather protection. With 4-curve, 6-mode, and 16-bit dimming capabilities with a 12-zone pixel-mappable RGB LED outer ring, the Rogue Outcast 1 offers ample lighting, shutter, and strobe possibilities. Designed with standalone color mixing, color temperature presets, and motorized zoom, this light features multiple ways to produce stunning lighting visuals with a unique lens design for excellent color blending and tight beam effects.
RGB LED Ring
The Rogue Outcast 1 features a built-in ring constructed from 97 0.2W RGB LEDs with a 50,000-hour life expectancy for greater lighting control. The 12-zone pixel-mapping outer ring provides ample creative lighting possibilities and effects with its prebuilt programs to easily control dimming, rate, foreground, and background colors.
DMX and RDM Connectivity
Equipped with simple and complex DMX profile channels, the Rogue Outcast 1 offers programming versatility. Remotely address and troubleshoot the light with the light's RDM capabilities. Utilizing 5-pin DMX input and output connections, lighting designers can choose from six 15, 24, 30, 64, 111, and 135 DMX channel modes to operate and adjust the light wirelessly.
UPC: 781462229559

Items Included

  • CHAUVET Professional Rogue Outcast 1 BeamWash M RGB LED Uplight Fixture with LED Ring
  • 2 x Omega Bracket
  • 2 x Allen Key Bolt
  • Display Cover
  • Limited 2-Year Manufacturer Warranty

Additional Resources

No additional resources available

CHAUVET Professional Outcast 1 Beamwash M Specs

Key Specs
Fixture Type
Moving Head
Light Source
7x Color LED - 45 W / 3 A
97x Color LED - 0.2 W / 20 mA
Colors
Blue, Green, Red, White
Pixel Configuration
12x Zone
Beam Angle
4 to 32°
Control Protocols
W-DMX, RDM
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 385 W / 3.25 A
230 VAC, 50 Hz: 372 W
Mounting
Floor Base, Omega Bracket
Light
Fixture Type
Moving Head
Light Source
7x Color LED - 45 W / 3 A
97x Color LED - 0.2 W / 20 mA
Expected Lamp Life
50,000 Hours
Colors
Blue, Green, Red, White
Pixel Configuration
12x Zone
Photometrics
4°:
1422 fc / 15,308 Lux at 16.4' / 5 m
55°:
43 fc / 473 Lux at 16.4' / 5 m
Color Temperature
2800 to 10,000K
Lumen Output
4073 Lumens
Beam Angle
4 to 32°
Field Angle
6 to 50°
Shutter / Strobe
Electronic
Focus
Motorized
Zoom Adjustment
Motorized, 4 to 55°
Dimming
Electronic, 0 to 100%
Performance
Operating Modes
DMX
Strobe Rate
0 to 20 Hz
Gobos
No
Movement
Tilt Ranges
260° / 180° / 90°
Pan Ranges
540° / 360° / 180°
Control
Control Protocols
W-DMX, RDM
DMX Channel Modes
6 Mode(s):
15 / 24 / 30 / 64 / 111 / 135-Channel
Display / Controls
LCD / 4-Button
Remote Control
No
Mobile App Compatible
No
Connectivity
Inputs/Outputs
1 x Bare Wire DMX Input (on Integrated Cable)
1 x Bare Wire DMX Output (on Integrated Cable)
Wireless
No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x Hard-Wired
Output: None
Plug Type: Unterminated/Bare Wire
Cord Length: 5' / 1.5 m
Fuse
8 A 250 V
Power / Current Consumption
120 VAC, 60 Hz: 385 W / 3.25 A
230 VAC, 50 Hz: 372 W
Power Linking
No
Physical
Environmental Resistance
Dust/Water-Resistant (IP66)
Operating Conditions
-4 to 113°F / -20 to 45°C
Mounting
Floor Base, Omega Bracket
Included Accessories
No
Duty Cycle
No
Exterior Color
White
Cooling
Forced Convection
Certifications
CE, FCC, MET, UKCA
Dimensions
15.75 x 11.92 x 7.58" / 40.01 x 30.28 x 19.25 cm
Weight
20.2 lb / 9.2 kg

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

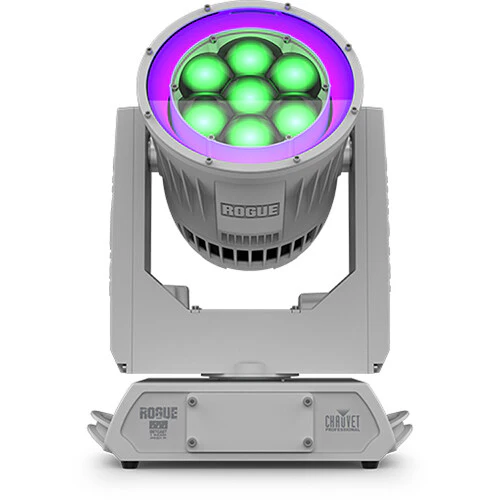

CHAUVET Professional Rogue Outcast 1 BeamWash M RGB LED Uplight Fixture with LED Ring - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

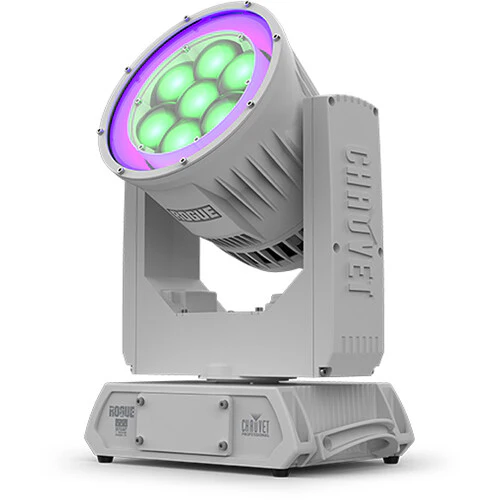

CHAUVET Professional Rogue Outcast 1 BeamWash M RGB LED Uplight Fixture with LED Ring - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

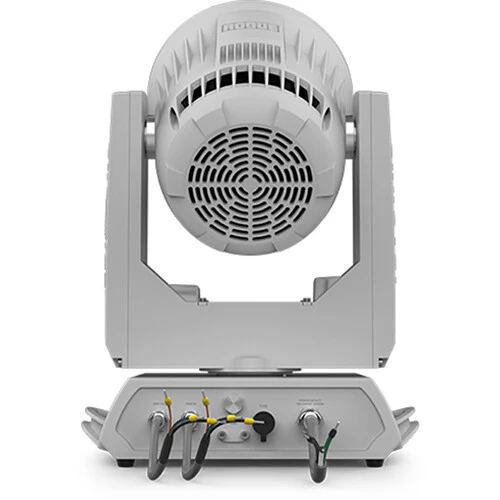

CHAUVET Professional Rogue Outcast 1 BeamWash M RGB LED Uplight Fixture with LED Ring - Image 4
