$677.02The Story

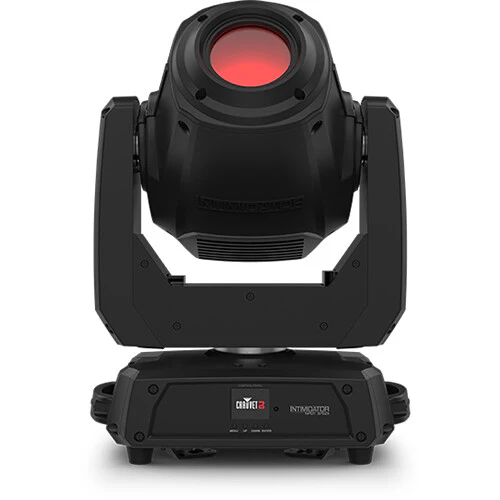

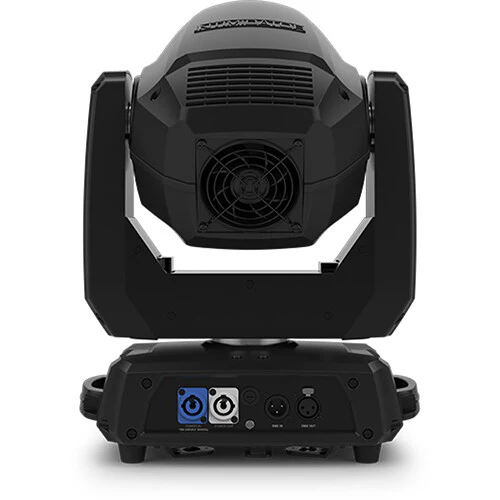

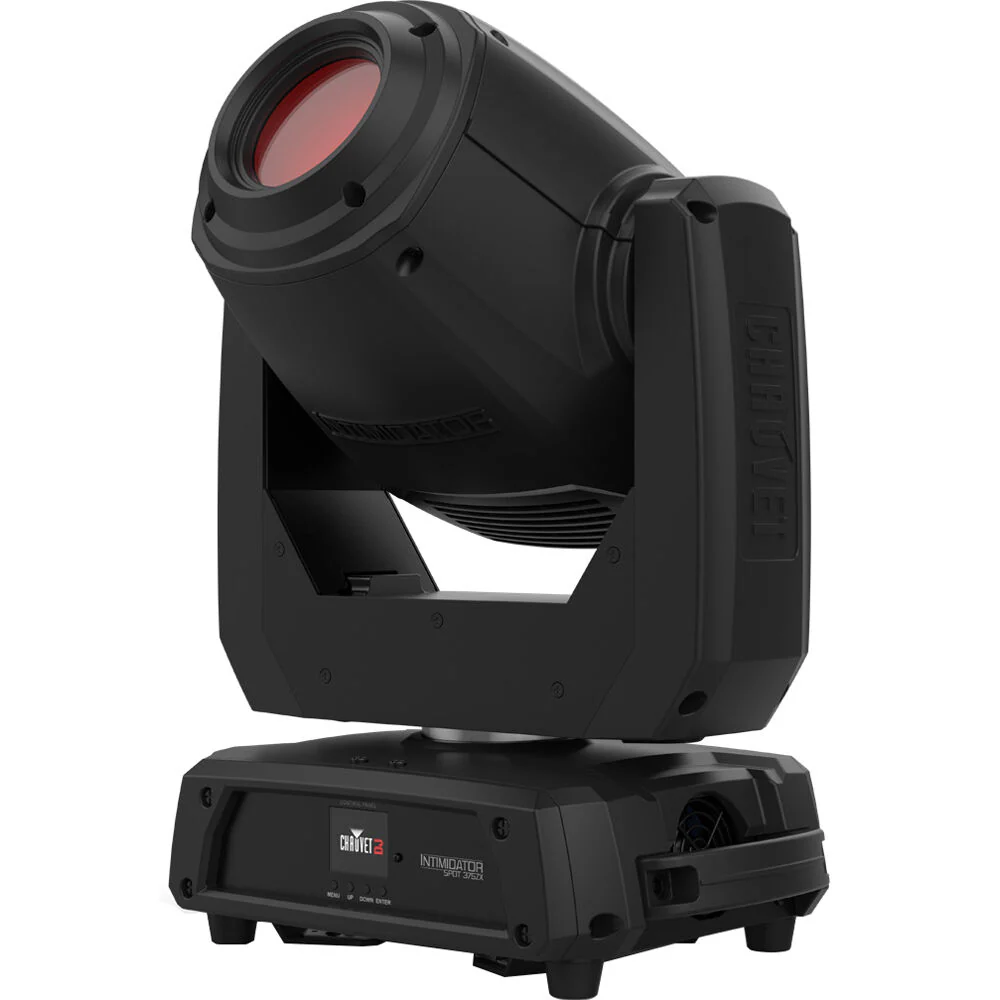

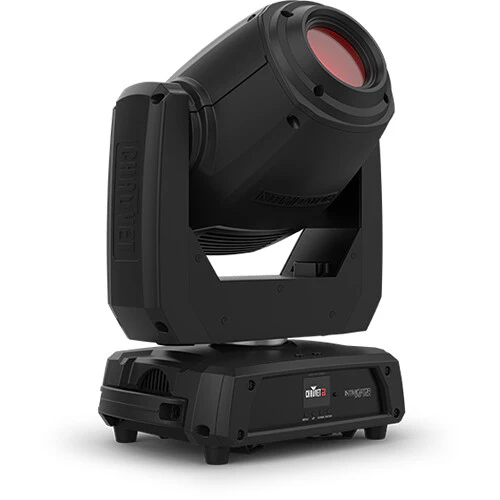

CHAUVET DJ Spot 375Z IRC Overview
Designed for large-scale events, the Chauvet DJ Intimidator Spot 375ZX, is high-output feature-rich moving-head spot fitted with a 200W CW LED and a motorized zoom for short-throw and long-throw applications. The color wheel offers white plus seven colors with dynamic color scrolling capabilities. The instrument also features six aluminum gobos and a single glass gobo that rotate, shake, index, and scroll at variable speeds. The dual rotating prims split the beam for greater effect and wider coverage, while the Totem mode ensures the beams always remain on the dancefloor.
The 375ZX includes built-in automated programs, sound-activated programs, a Master/Slave mode, and additional control via DMX with 9 or 15 channels. Up to 4 units can be power linked using a single 120V circuit. Gobos can be swapped out for customized projections. The Intimidator Spot 375ZX ships with a power cord and a hanging bracket with mounting hardware.
- Compact moving head designed for large events
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- New home position allows for smoother programming
- Dual rotating prisms split the beam for great effects and cover a larger area
- Motorized zoom for short or long throw applications
- ¼-turn hanging bracket allows for single or dual clamp mounting options
- Project crisp gobos from nearly any distance with the motorized focus
- Beams always remain on the dance floor using the built-in, innovative Totem mode
- Set, save, and recall one scene manually, directly from the full-color LCD display
- powerCON-compatible power input/output connections saves setup time
- Fits best in the Intimidator road case
Items Included
- CHAUVET DJ Intimidator Spot 375ZX LED Moving Head (Black)
- Power Cord
- Hanging Bracket with Mounting Hardware
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET DJ Spot 375Z IRC Specs
| Fixture Type |
Moving Head
|
| Light Source |
1x White LED - 200 W / 16 A
|
| Colors |
Cyan, Green, Lime, Magenta, Orange, Red, White, Yellow
|
| Beam Angle |
10 to 23°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 354 W / 3.1 A
230 VAC, 50 Hz: 337 W / 1.6 A |
| Mounting |
Mounting Bracket
|
| Fixture Type |
Moving Head
|
| Light Source |
1x White LED - 200 W / 16 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Cyan, Green, Lime, Magenta, Orange, Red, White, Yellow
|
| Photometrics |
10°:
3418 fc / 36,801 Lux at 6.6' / 2 m 23°: 1961 fc / 21,115 Lux at 6.6' / 2 m |
| Lumen Output |
7161 Lumens
|
| Beam Angle |
10 to 23°
|
| Iris |
No
|
| Focus |
Motorized
|
| Zoom Adjustment |
Motorized
|
| Dimming |
Electronic, 0 to 100%
|
| Prism |
6-Facet Circular (Rotating)
5-Facet Linear (Rotating) |
| Operating Modes |
DMX, Primary/Secondary, Totem
|
| Macros / Programs |
16x Movement Macro
8x Sound-Active |
| Effects |
Strobe (Variable Speed)
Gobo Shake (Variable Speed) Gobo Scroll (Variable Speed) |
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
6x Removable Metal Gobo
1x Removable Glass Gobo 1x Spot/Open |
| Gobo Size |
Outer Diameter: 0.94" / 23.88 mm
Max Image Size: 0.79" / 20.07 mm Max Thickness: 0.04" / 1.02 mm |
| Tilt Ranges |
270° / 180° / 90°
|
| Pan Ranges |
540° / 360° / 180°
|
| Pan/Tilt Inversion |
Yes
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
2 Mode(s):
9 / 15-Channel |
| Display / Controls |
LCD / 4-Button
|
| Remote Control |
IR Remote (with Optional Equipment)
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output |
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON Plug Type: NEMA 5-15 |
| Fuse |
120 VAC: F 5 A 250 V
120 VAC: F 5 A 250 V |
| Power / Current Consumption |
120 VAC, 60 Hz: 354 W / 3.1 A
230 VAC, 50 Hz: 337 W / 1.6 A |
| Power Linking |
3 Units at 120 VAC
5 Units at 230 VAC |
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Operating Conditions |
Up to 104°F / 40.0°C
|
| Mounting |
Mounting Bracket
|
| Included Accessories |
1x Power Cable
|
| Exterior Color |
Black
|
| Cooling |
Convection, Fan
|
| Dimensions |
18.3 x 12.7 x 8.6" / 46.5 x 32.3 x 21.8 cm
|
| Weight |
27.2 lb / 12.3 kg
|
| Package Weight |
35.18 lb
|
| Box Dimensions (LxWxH) |
19.4 x 17 x 16.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
