Original: $437.64
-70%$437.64
$131.29The Story

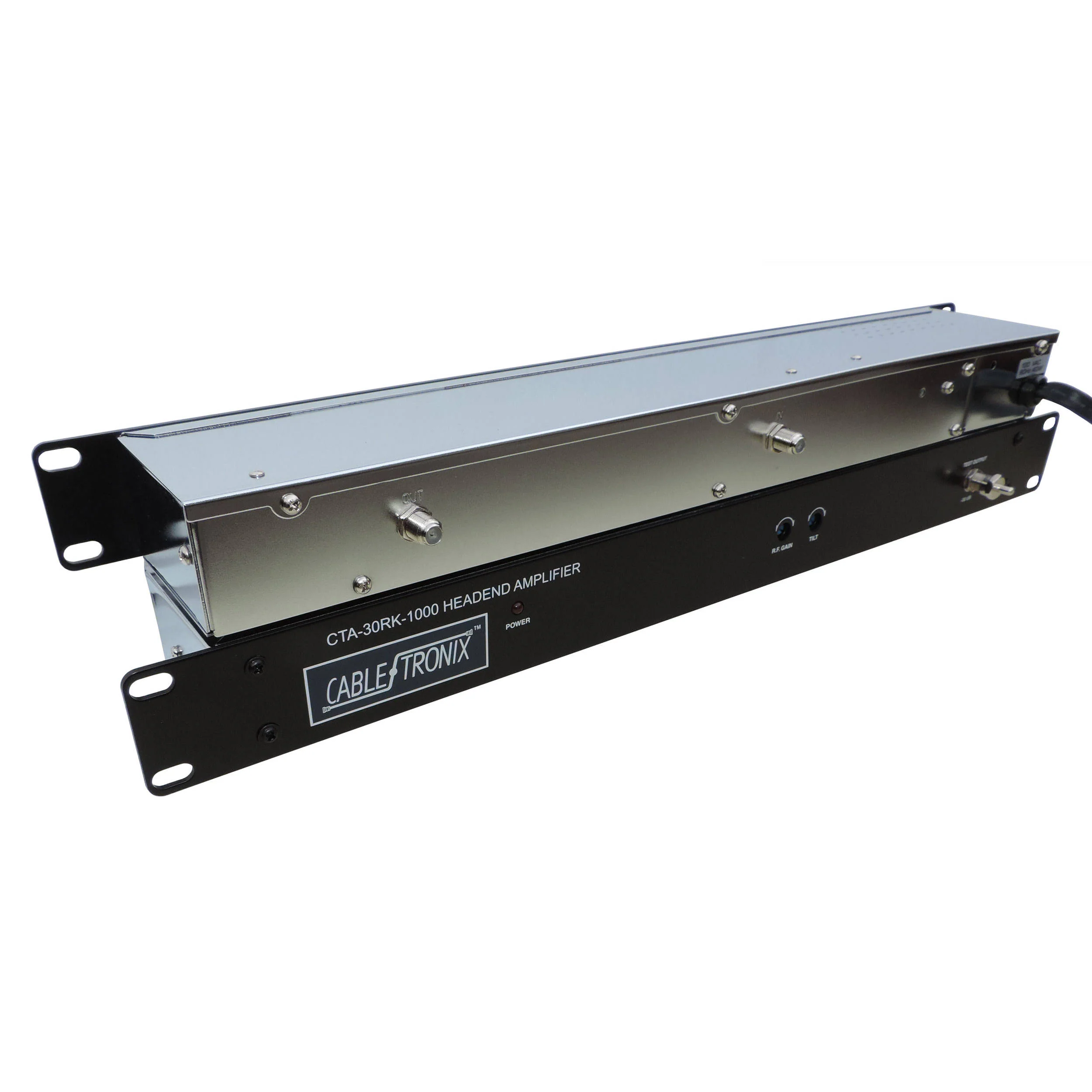

The CTA-30RK-1000 Rack Mountable Launch Amplifier from CableTronix is a 19� rack mountable broadband launch amplifier designed to produce clean signals for a commercial-grade private cable network. Employing a push-pull design, the amplifier produces high output levels with low distortion and harmonic content. As a broadband amplifier with a frequency range of 54 to 1000 MHz, it supports up to 158 channels.
- Broadband coverage from 54 to 1000 MHz
- Supports up to 158 channels
- 30 dB gain
- Adjustable gain and slope controls
- Input and output test ports
- Double-shielded RFI enclosure
| Bandwidth | 54 to 1000 MHz |
| Gain | 30 dB |
| Range | Gain Adjustable Range: 18 dB |
| Slope | 12 dB |
| Flatness | ±1.5 dB per channel, any 100 MHz band |
| Maximum Output | 7 Channels: 44 dBmV maximum input level, 66 dBmV maximum output level 12 Channels: 41 dBmV maximum input level, 63 dBmV maximum output level 36 Channels: 32 dBmV maximum input level, 54 dBmV maximum output level 54 Channels: 23 dBmV maximum input level, 45 dBmV maximum output level |
| Noise Figure | 7.5 dB |
| Beat | Second Order Beats: -60 dB (129 channels at 13 dBmV input level) Composite Triple Beat: -58 dB (129 channels at 13 dBmV input level) |
| Cross Modulation | -54 dB (129 channels at 13 dBmV input level) |
| Return Loss | In: 16 dB to 750 MHz (typical) Out: 16 dB, 751 to 1000 MHz (typical) |
| Test Point Level | -20 dB |
| Power Input | 117 VAC, 60 Hz, 25 W |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Dimensions (W Ă— H Ă— D) | 19 x 1.75 x 3" (482.6 x 44.45 x 76.2 mm) |
| Weight | 4 lb (1.8 kg) |
- Limited 1-Year Warranty
