BZBGEAR Cyclops Overview

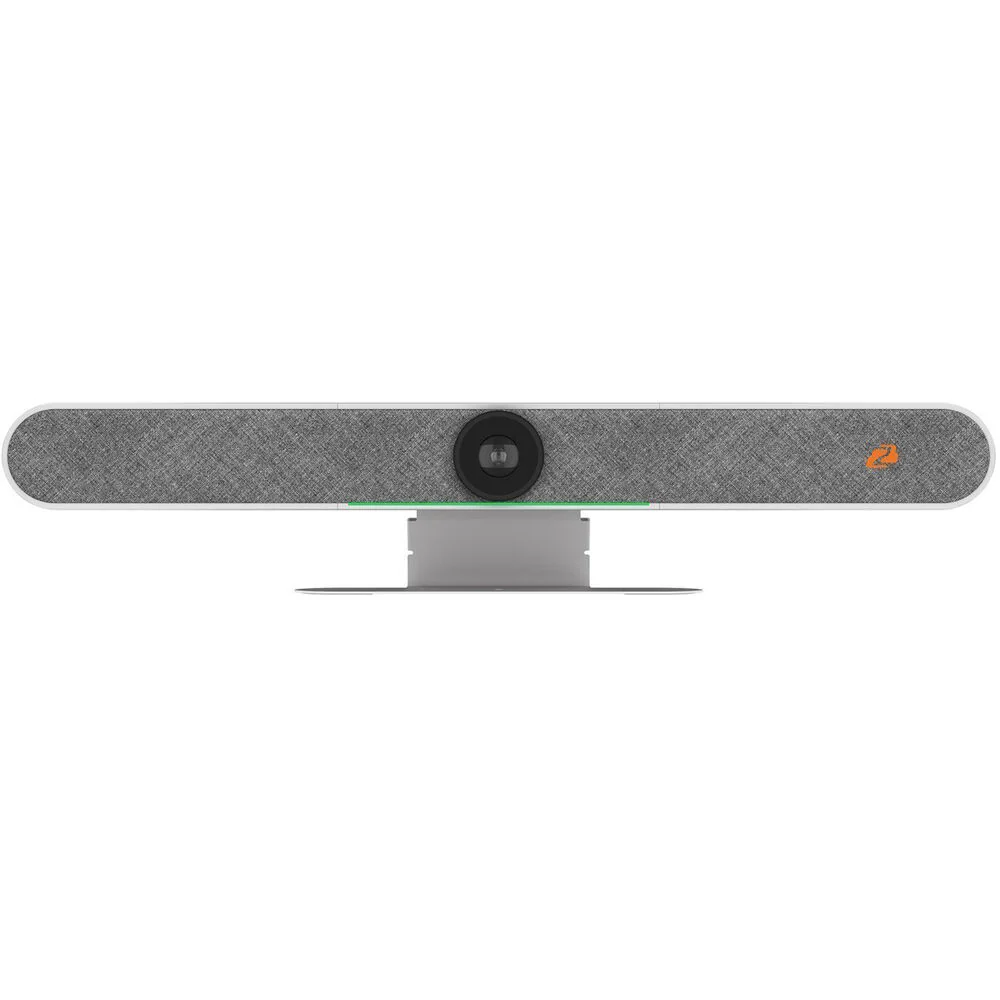

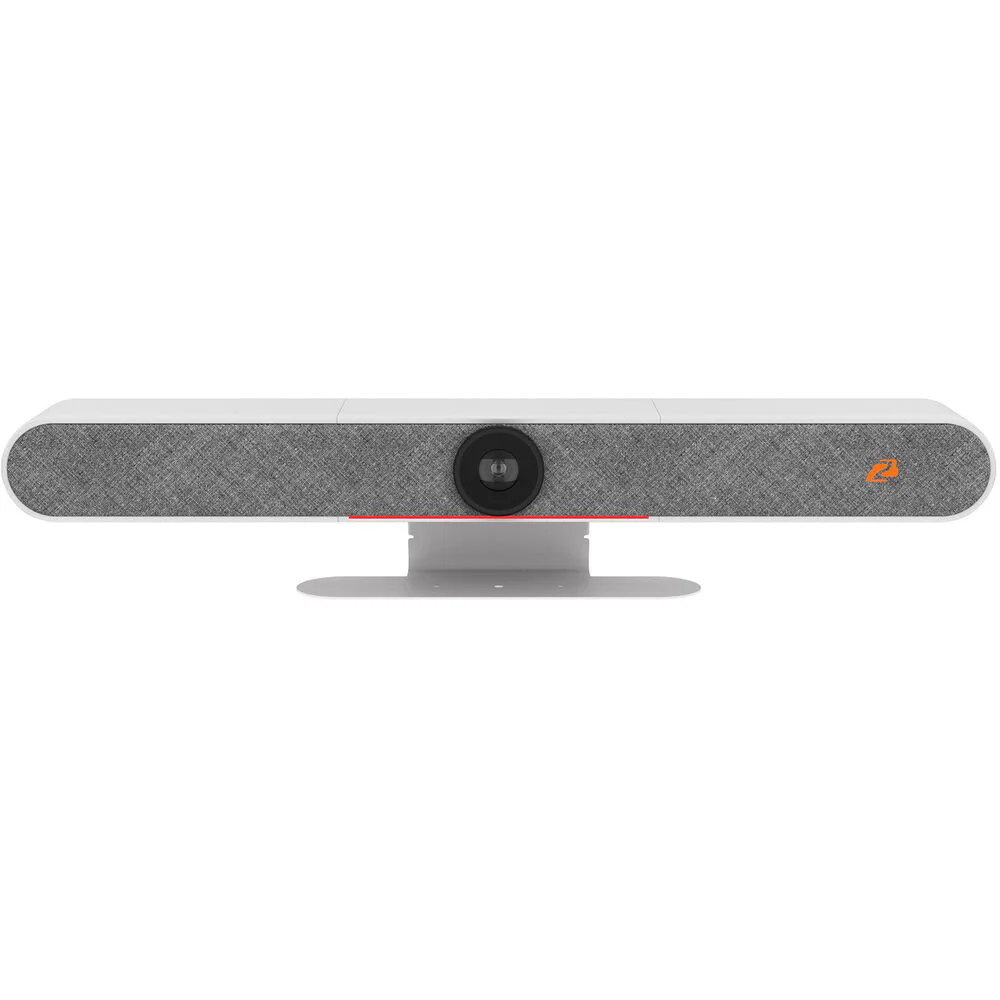

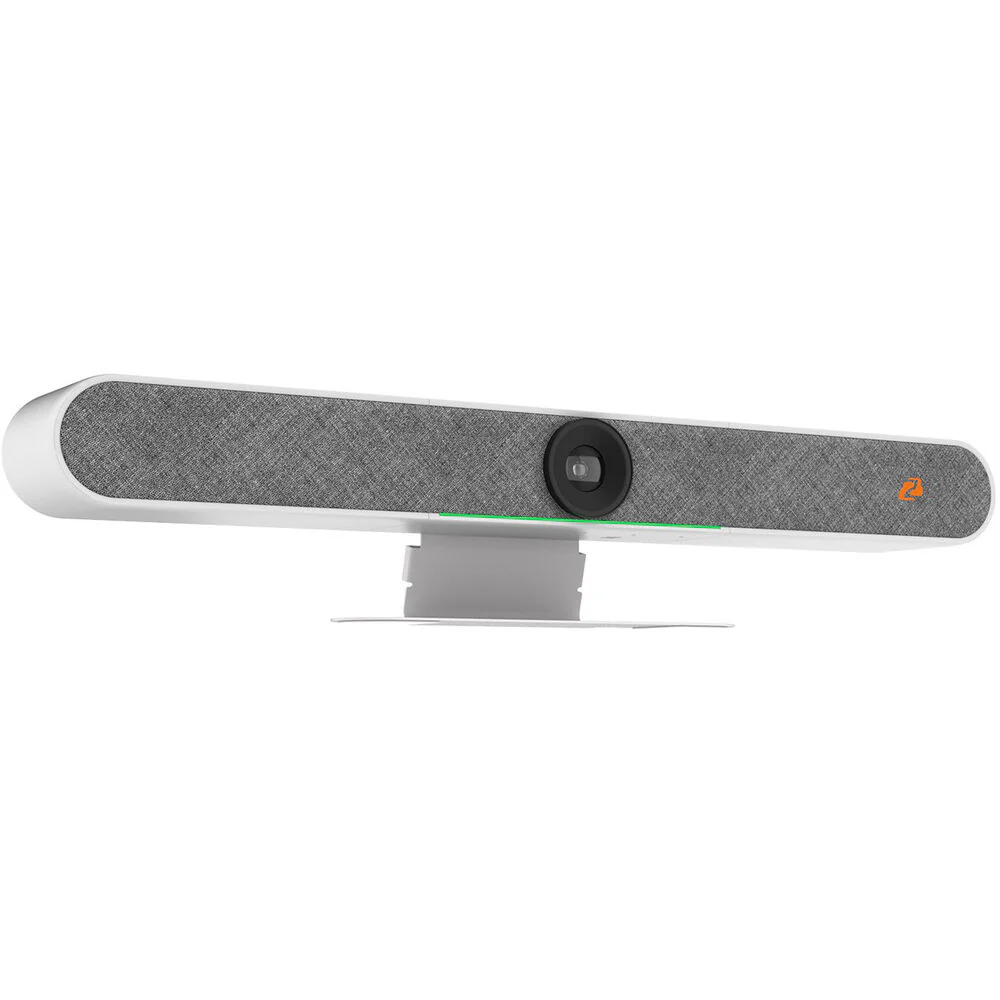

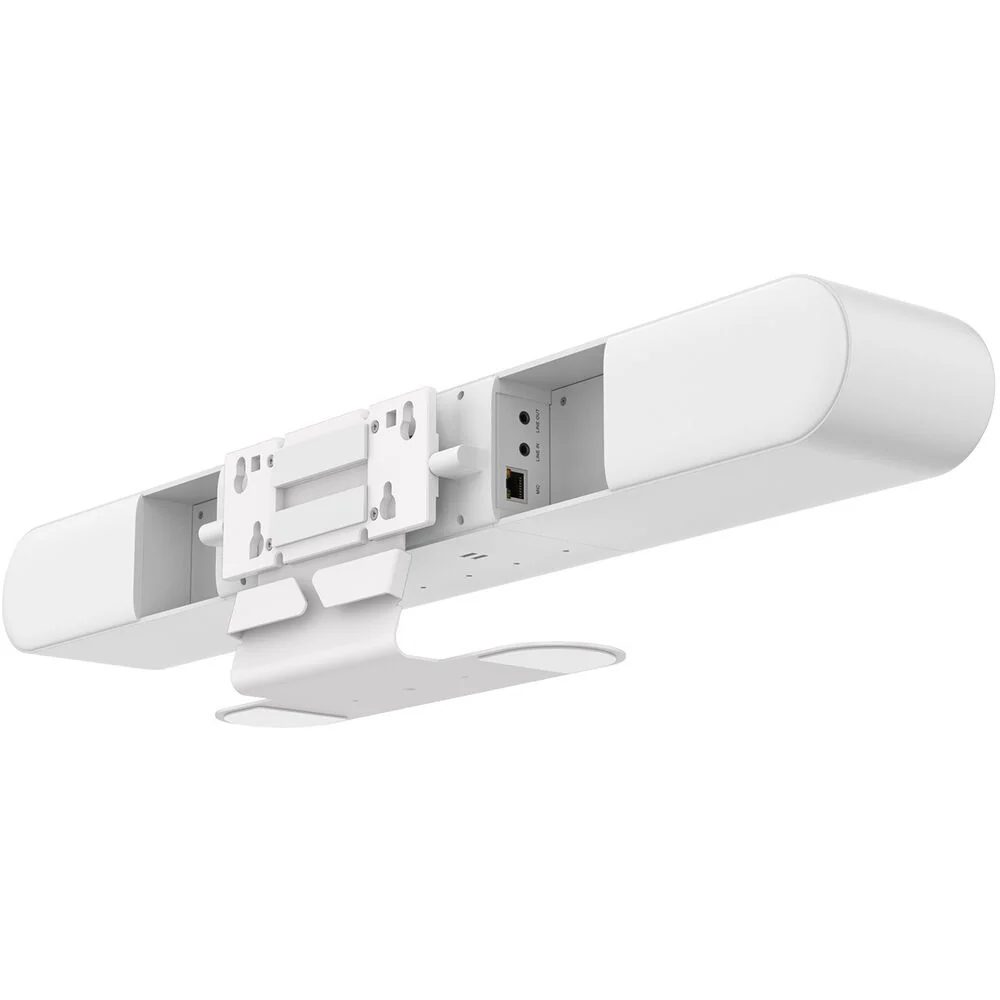

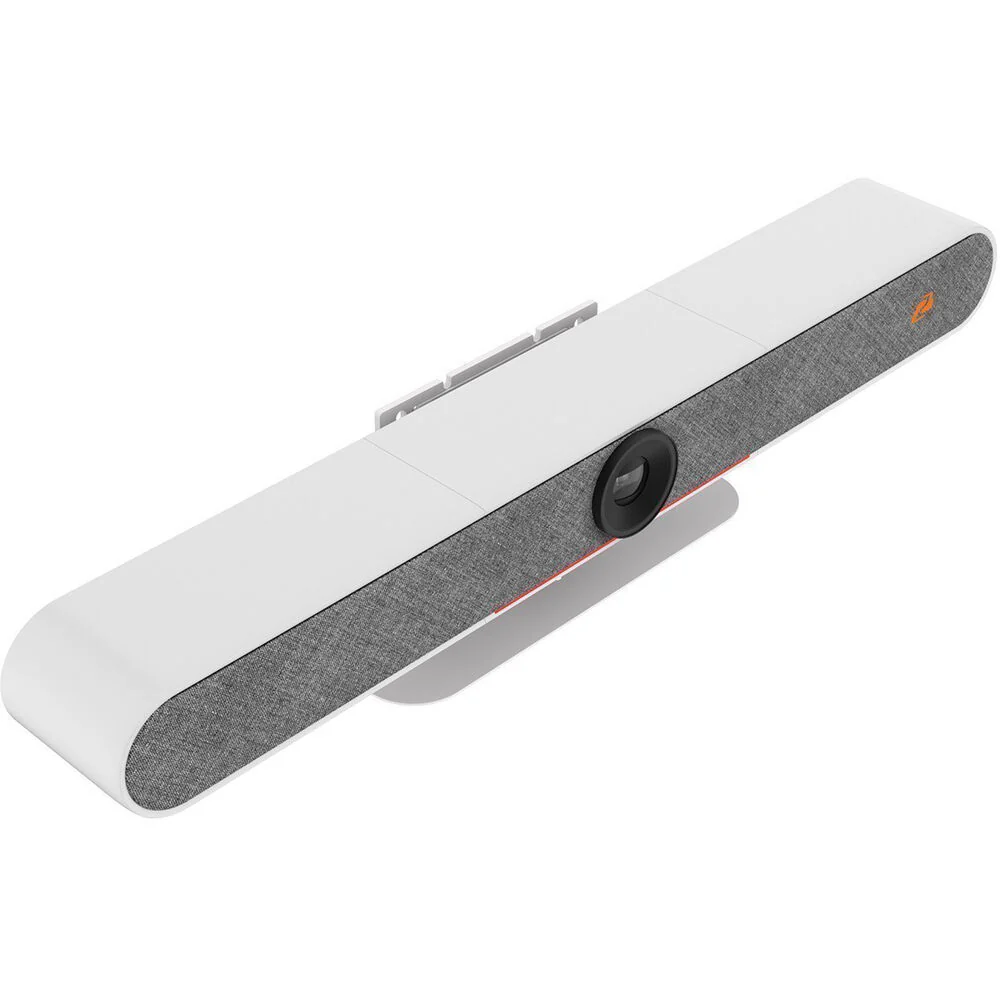

Simplify your video conferencing gear with this white all-in-one BG-CYCLOPS-4K Auto Tracking/Framing Video Bar from BZBGear. Consolidating several devices into one streamlined and user-friendly conferencing solution, the BG-CYCLOPS-4K has an integrated camera with a high-end CMOS sensor that is capable of capturing images at up to UHD 4K resolution. Boasting advanced auto tracking and auto framing technology, the distortion-free, 120° wide-angle lens adjusts itself automatically to adequately frame the number of participants in a meeting.
An HDMI port allows you to send video with resolutions up to UHD 4K30 to any compatible display or presentation switcher while a USB-C port provides plug-and-play connectivity for any conferencing application like Zoom, Skype, or Microsoft Teams, with identical resolution support. A dual 10W, high-fidelity speaker system and the built-in 6-MEMS microphone array provide enhanced audio functionality to ensure that every participant can hear and be heard clearly and at an adequate volume. The unit features a privacy cover that automatically shields the lens for privacy and security when no output device or software are detected.
- All-in-one design: 4K UHD camera, microphone array, high-fidelity speakers, and privacy cover
- Distortion-free 120° wide-angle lens ensures every participant is in frame with no need to adjust the camera
- Automatic privacy cover automatically closes when no output device/software is detected
- Complex microphone array enables presenters to be tracked in real time
- Dual 10W high quality studio speakers ensure every participant can hear clearly
- The audio processing algorithm adopts a high-fidelity 48K audio sampling rate with lossless audio transmission
- It supports AEC, AGC, and ANS signal processing, providing high-quality audio up to six meters away
- A face detection algorithm automatically detects participants and provides optimal framing
- Connect a mobile device through Bluetooth for the unit to be used as a Bluetooth speaker and microphone
- The low noise 0.8M CMOS sensor ensures a high signal to noise ratio (SNR) image
- The advanced 2D/3D noise reduction technology decreases noise ensuring image clarity
- Compatible with Windows 7, Windows10, Mac OS 10.10 or higher, and it is compatible with most major cloud-based video conferencing platforms such as Zoom, Skype, and Microsoft Teams
In the Box
- BZBGEAR BG-CYCLOPS-4K Auto Tracking/Framing Video Bar (White)
- USB Cable
- Remote Control
- Power Adapter
-
Limited 3-Year Manufacturer Warranty
Registration Extension: 2-Year
Guides & Manuals
BZBGEAR Cyclops Specs
| Resolution and Frame Rate |
UHD 4K at up to 30 fps
|
| Image Sensor |
Size-Unspecified CMOS
|
| Sensor Resolution |
8 MP
|
| System Connection |
USB-C 3.0 / 3.1/3.2 Gen 1
|
| Resolution and Frame Rate |
UHD 4K at up to 30 fps
|
| Number of Lenses |
1
|
| Image Sensor |
Size-Unspecified CMOS
|
| Sensor Resolution |
8 MP
|
| Aperture |
f/2.0
|
| Field of View |
Diagonal: 120°
Horizontal: 106° Vertical: 72° |
| Zoom |
10x (Digital)
|
| System Connection |
USB-C 3.0 / 3.1/3.2 Gen 1
|
| Additional I/O |
1 x HDMI Output
|
| Focus Type |
Auto
|
| Wireless |
Bluetooth
*Built-In |
| Bluetooth |
5.0
|
| Wi-Fi |
No
|
| Power Source |
AC Adapter
|
| Low-Light Correction |
No
|
| AC Input Power |
110 to 220 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC at 2.5 A
|
| OS Compatibility |
Windows 7 to 10
macOS 10 Android Linux *As of October, 2023: Check with manufacturer for the most up-to-date compatibility |
| Supported Formats/Protocols |
H.264, H.265, MJPEG, YUY2
|
| Microphone |
Yes
|
| Element Type |
6 x MEMS
|
| Pickup Range |
20' / 6.1 m
|
| Polar Pattern |
Omnidirectional
|
| Frequency Range |
120 Hz to 16 kHz
|
| Built-In Speakers |
2 x 10 W
|
| Frequency Response |
100 Hz to 20 kHz
|
| Operating Temperature |
14 to 122°F / -10 to 50°C
|
| Operating Humidity |
20 to 80%
|
| Storage Temperature |
14 to 158°F / -10 to 70°C
|
| Storage Humidity |
20 to 95%
|
| Privacy Shutter |
Yes
|
| Security |
No
|
| Built-In Light |
No
|
| Package Weight |
8.985 lb
|
| Box Dimensions (LxWxH) |
29.2 x 7.2 x 6.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
