BZBGear BG-AMPC40 Overview
Add audio amplification to your studio production facility with this 40W/70V 2-Channel Stereo/Mono Audio Amplifier from BZBGear. The digital stereo amplifier offers analog and digital audio inputs for amplification and simple operation, making it well suited for studio production applications. The amplifier features RS-232 input for remote control commands, or you can utilize an optional IR remote control.

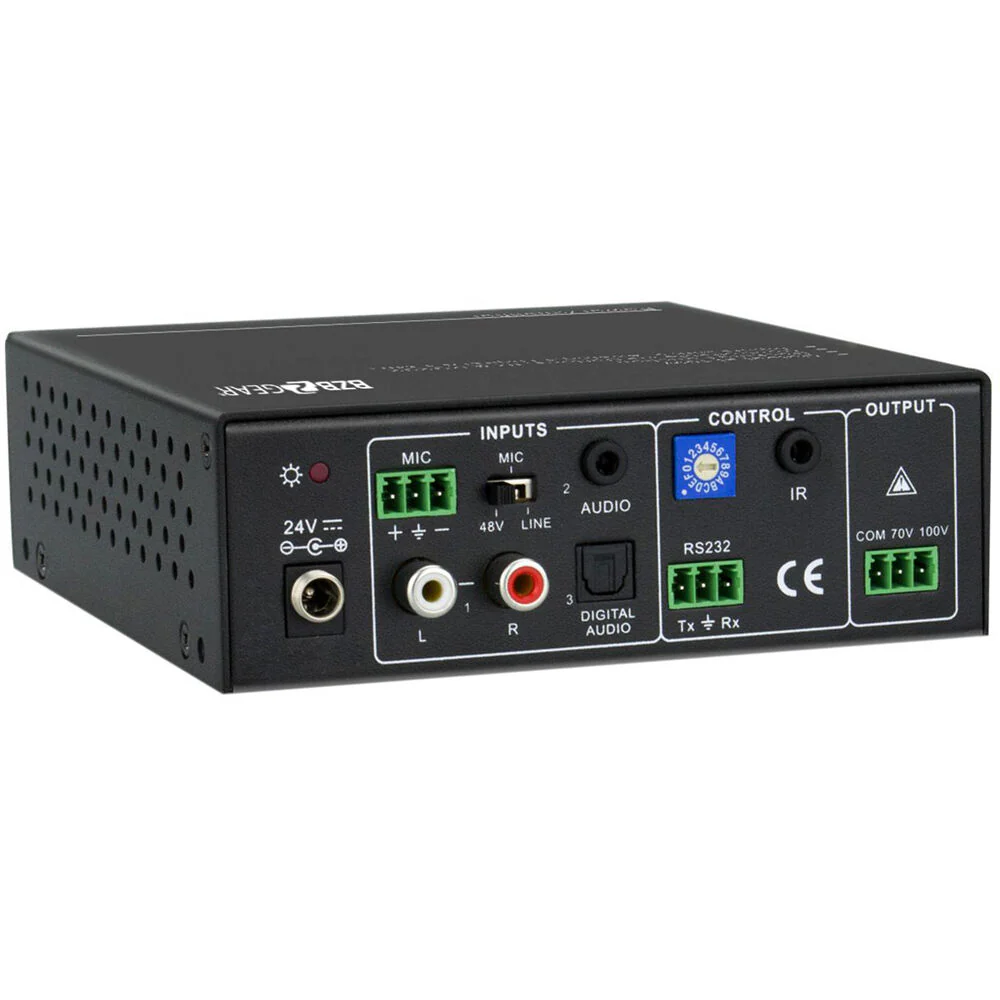

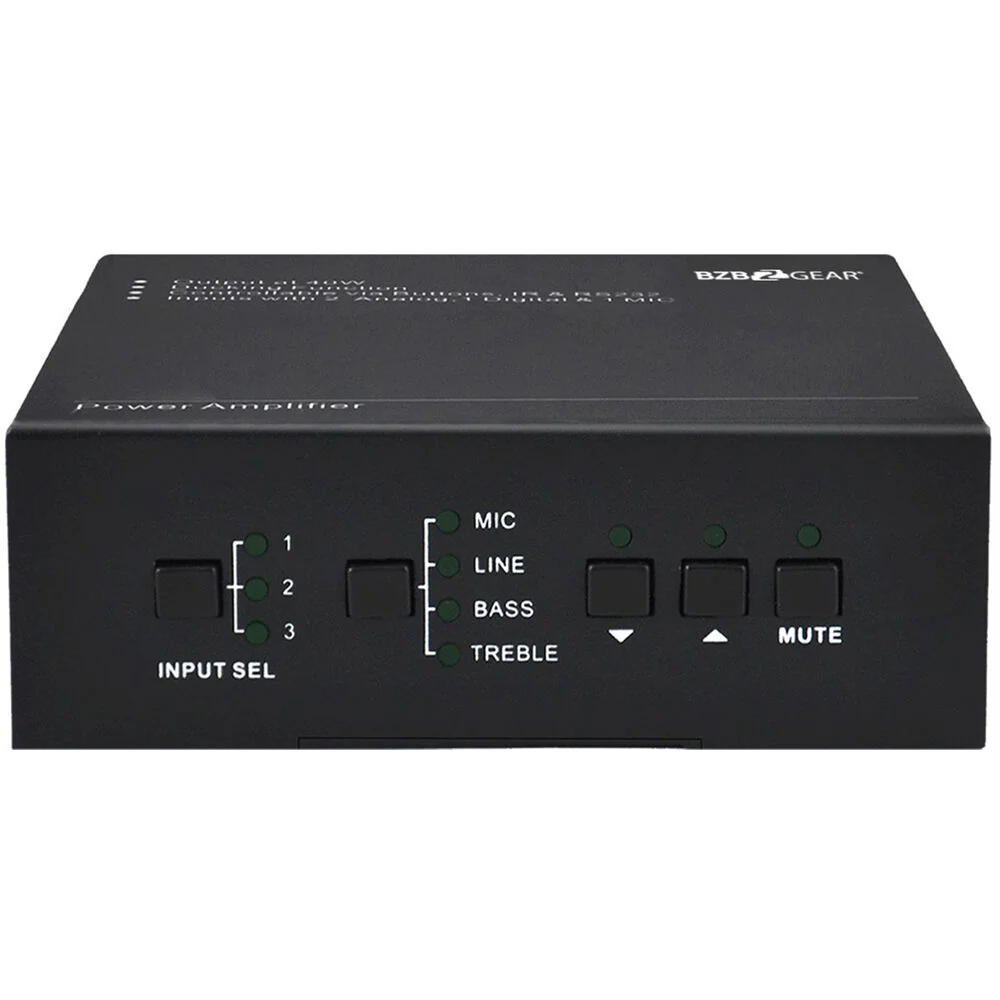

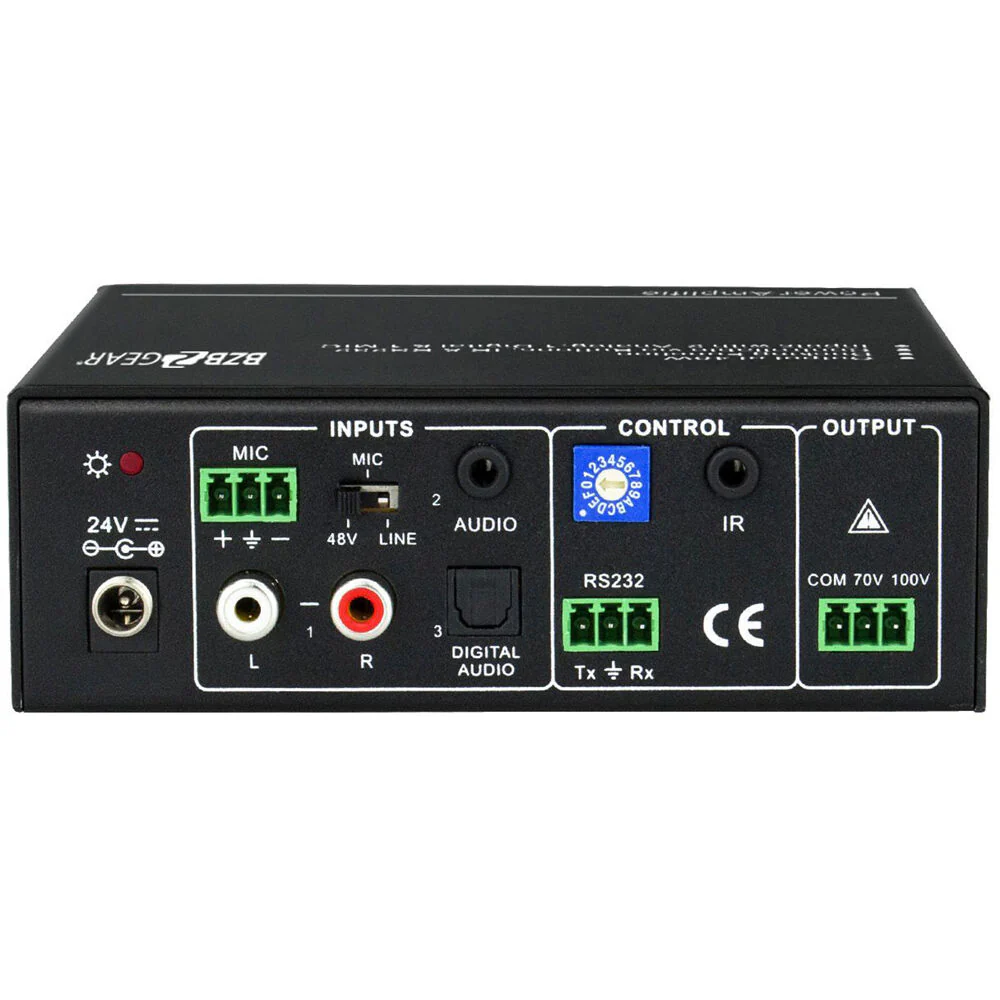

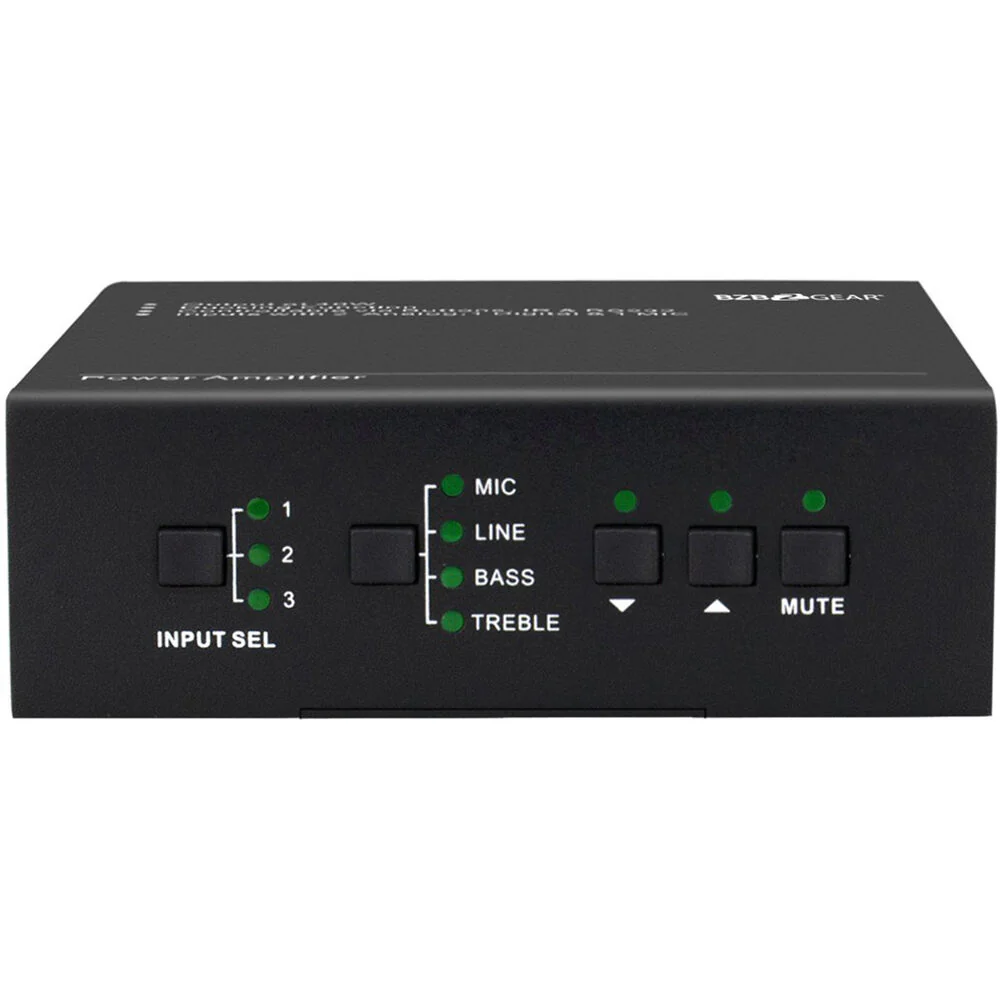

The unit features one 3.5mm stereo input, a 2RCA L/R stereo input, one 3-pin terminal block mic input with 48V phantom power, and one TOSLINK digital input. The source is selected via a front-panel button. Mic and line input volume is adjustable via convenient up and down buttons on the front panel, and you can also adjust bass and treble settings. Speaker outputs are available on a 3-pin terminal block connector, and it is selectable between 70 or 100V.
Key Features
In the Box
- BZBGear 40W/70V 2-Channel Stereo/Mono Audio Amplifier
- Power Adapter
- 2 x Mounting Ear
- 4 x Screw
- 4 x Plastic Cushion
- 2 x Terminal Block
- RS-232 Cable
- Limited 3-Year Warranty
BZBGear BG-AMPC40 Specs
| Number of Channels | 1 |
| Power Rating | 1 x 40 W |
| Amplifier Class | Class-D |
| Frequency Response | 120 Hz to 20 kHz |
| Input Impedance | 1/8" / 3.5 mm, Euroblock, 2RCA: >10 Kilohms |
| SNR | 80 dB |
| THD+N | 1% (1 kHz) 0.3% (20 kHz) |
| Crossover | None |
| Limiting | None |
| I/O | 1 x 2RCA TS Female Unbalanced Line Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Input 1 x Block 3-Pin Female Balanced/Unbalanced Mic Input 1 x Block 3-Pin Male 70/100 V Output |
| Digital I/O | 1 x TOSLINK S/PDIF Input |
| AC Input Power | 120 VAC, 50 / 60 Hz |
| Cooling | Convection |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Operating Humidity | 10 to 90% |
| Dimensions | 5.7 x 5.1 x 1.7" / 144.0 x 130.0 x 44.0Â mm |
| Weight | 2Â lb / 0.9Â kg |
BZBGear BG-AMPC40 Reviews
