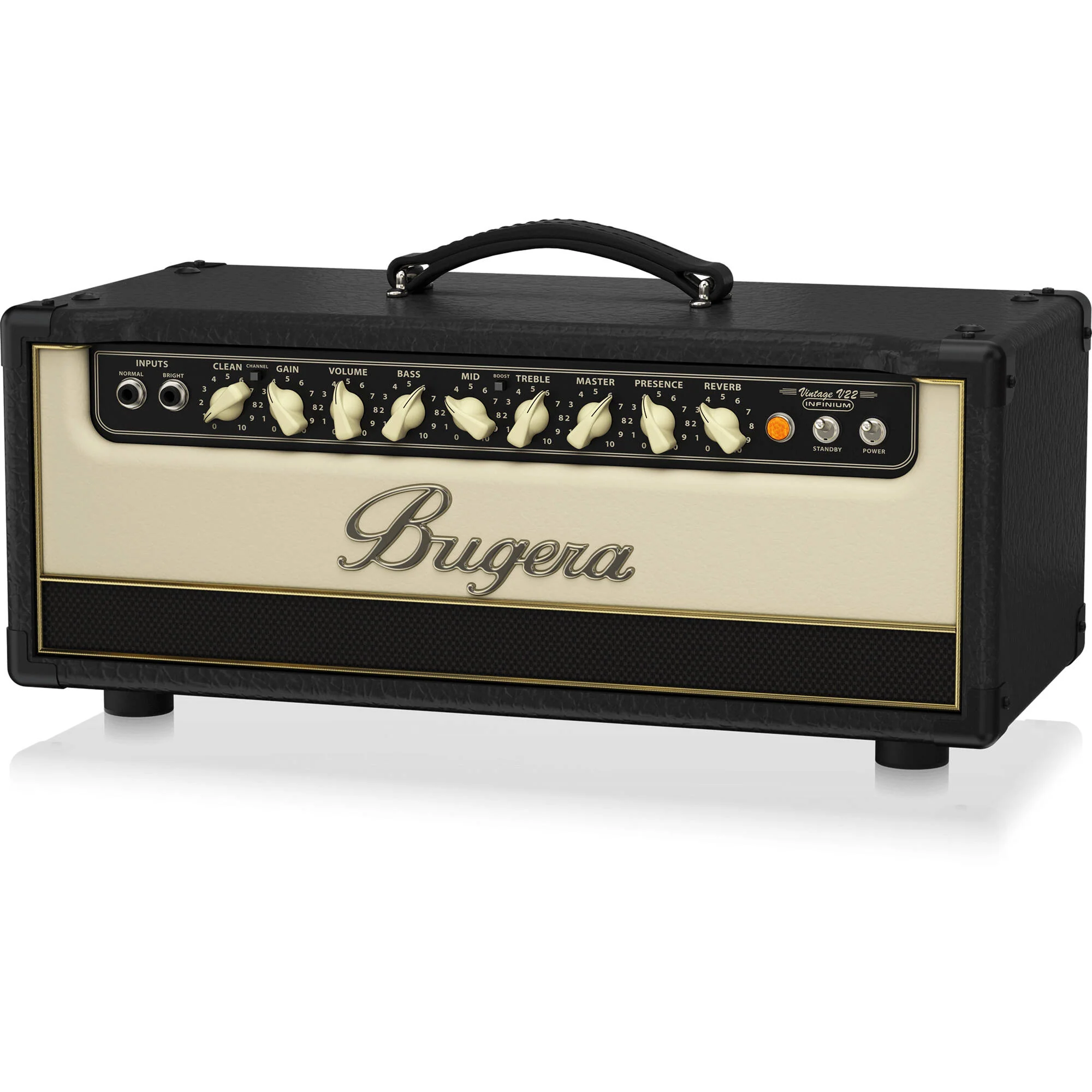

Bugera Vintage V22HD INFINIUM 22W 2-Channel Tube Amplifier Head

Classic All-Tube Design

The V22HD provides sweetly balanced harmonics and natural tube compression, resulting in the warm distortion and breakup you�ve come to appreciate from those vintage megaliths of yesteryear, only in a much more portable and attractive package.

• True Class-A technology
• Hand-selected 12AX7 preamp tubes for classic '60s-style sound
• Sweetly purring blues to biting crunch
• EL84 power tubes for crisp, chiming, British-style tones when pushed

High-Definition Reverb

The Vintage V22HD's reverb puts the finishing touch on your signature sound. Adjustable via the dedicated control on the front panel, you can achieve any reverb sound you desire�from a subtle touch to the cavernous, natural-sounding reverberation of a large arena.

Infinium Tube Life Multiplier Technology

Years in the making, Bugera INFINIUM Tube Life Multiplier Technology can extend the usable lifespan of your amplifier�s expensive power valves by up to 20 times, saving you money and ensuring the integrity of your tone. How? This revolutionary circuit automatically and continuously monitors the performance of each output tube, and dynamically drives it towards the target operating point, for an evenly distributed load.

INFINIUM also compensates for the effects of aging, automatically adjusting current levels to keep your tubes sounding as good as new, even when AC line voltages drop below nominal levels. Similar technology has been used for decades in all-wheel drive cars, where systems modulate the power going to each wheel to improve traction.

Monitor Your Tube Life in Real Time

INFINIUM Series amps take all the guesswork out of tube replacement by illuminating an LED next to a tube that is reaching the end of its usable lifespan. And thanks to INFINIUM's Auto-Bias design, you simply replace the indicated tube without a trip to the repair shop, saving you even more money.

Own the Tone

The Vintage V22HD INFINIUM's tonal palette begins with its footswitchable 2-channel (Clean and Lead) preamp. Tone-sculpting options abound, including an onboard 3-band EQ section (Bass, Mid, Treble) with Presence control. Classic-style Normal and Bright inputs provide superb matching to your instrument's tonal characteristics.

Expandable and Versatile

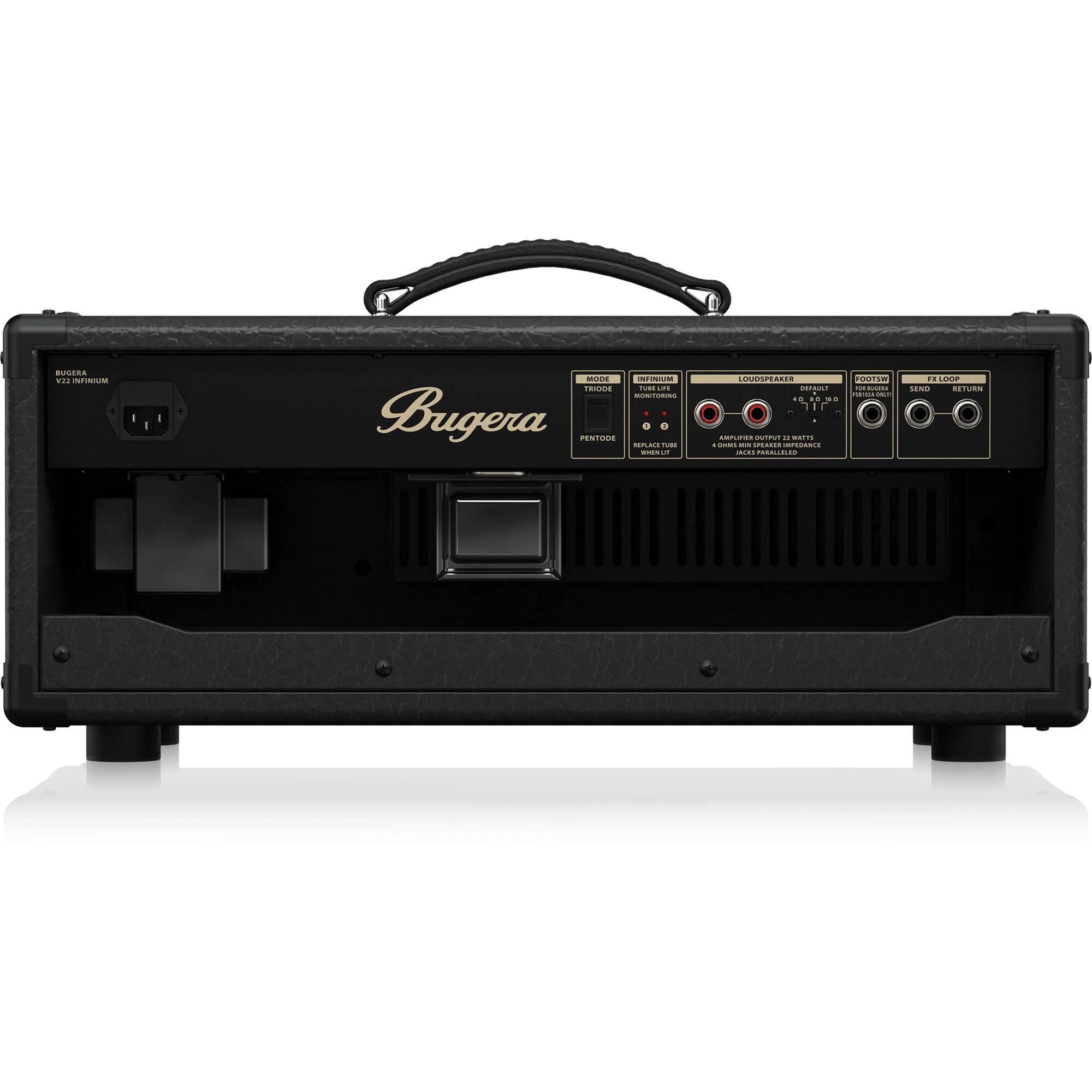

The output impedance selector allows you to match any external 4-, 8-, or 16-ohm speaker setup. Plus, thanks to the V22HD's Mode switch, which selects between Triode and Pentode tube operation, you can instantly jump from sweet and warm to massively raucous high-gain edge.

Bugera V22HD INFINIUM Specs

Amplifier Type	Tube
Output Power	22 W
Tube Types	3x Preamp 12AX7/ECC83 2x Power EL84/6BQ5
Channels	2
Master Volume	Yes
Tone Section	Bass, Channel Volume, Gain, Mid, Presence, Treble
EQ	3-Band Semi-Parametric
Built-In Effects	Digital Reverb
Effects Loop	Yes, Series
Inputs	2x 1/4" Mono Instrument 1x 1/4" Series Effects Return 1x 1/4" Footswitch
Outputs	2x 1/4" Mono External Speaker 1x 1/4" Series Effects Send
Output Impedance	4/8/16 Ohms Mono
USB I/O	No
Wireless	No
Mobile App Compatible	No

AC Input Power	Universal: 100 to 230 VAC, 50 / 60 Hz (T 1 A H 250 V)
Power Consumption	72 W

Covering	Tolex
Dimensions (W x H x D)	22.5 x 9.3 x 10.6" / 57.1 x 23.6 x 26.9 cm Combo
Weight	28 lb / 12.7 kg (Combo)

Package Weight	37.76 lb
Box Dimensions (LxWxH)	27 x 15 x 14.6"
