BrightSign BP900HI Overview

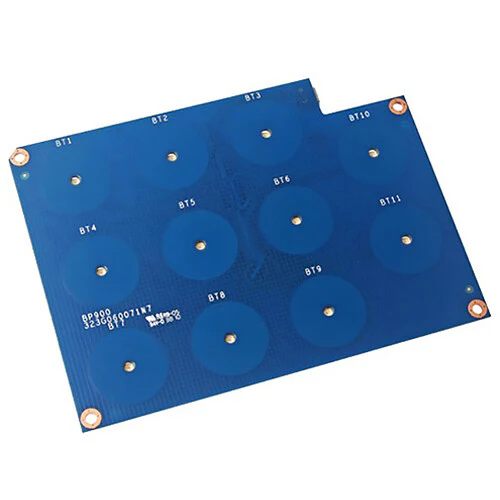

Add a capacitive touch button panel to your display with the BP900HI 11-Button USB Capacitive Touch Panel from BrightSign. The 11-button compact board provides you with programmable capacitive touch buttons that allow you to easily trigger content playback. The board integrates brightly colored LED lighting for intuitive user feedback and works with any BrightSign player that is equipped with a USB port.
- Plastic, acrylic, polycarbonate (PC), Lexan, wood, and acrylonitrile butadiene styrene (ABS) surfaces have all been verified to work
- Polyester (PET) and tempered glass materials are also acceptable
- Do not use materials that retain a static charge
- The overlay material must be 1/4? or thinner
- If the material is too thick, the buttons will not trigger
- Programmable button operations and lighting controls using BrightAuthor and BrightAuthor:connected
- Connects to BrightSign players via USB-B
- Integrates easily into displays with a thin, compact board design
- Supports overlays with custom materials and graphics that match BrightSign guidelines
- Compatible with any BrightSign player that has a USB port
Items Included
- BrightSign BP900HI 11-Button USB Capacitive Touch Button Panel (Blue LEDs)
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
BrightSign BP900HI Specs
| Compatibility |
BrightSign All Players with USB Port
|
| Connectivity |
Mini-USB
|
| Power Source |
USB
|
| Color |
Blue
|
| Dimensions |
5.5 x 4 x 0.4" / 139.7 x 101.6 x 11.1Â mm
|
| Weight |
1.6Â oz / 46Â g
|
