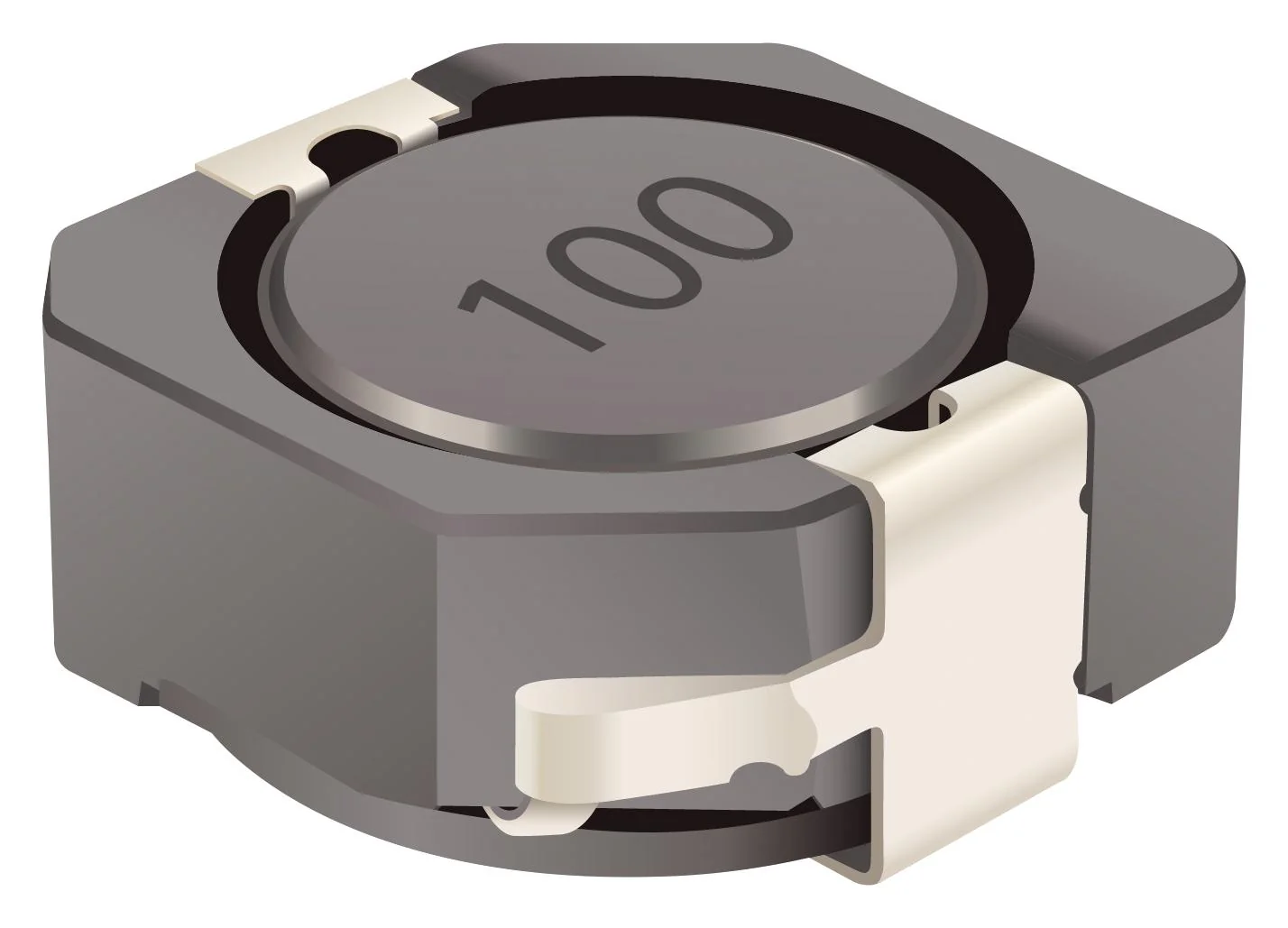

-70%Bourns SRR1050A-470Y Power Inductor (SMD) AEC-Q200 47 µH 2 A Shielded SRR1050A—
$1.42
$0.43The Story
The SRR1050A-470Y from Bourns is a SRR1050A series SMD shielded power inductor. It is typically used in applications such as driver assistant, infotainment, lighting, DC to DC converters, power supplies.
- Automotive grade AEC-Q200 qualified
- Inductance is 47µH at 1MHz/1V
- Tolerance is ±30%
- DCR (DC resistance of inductor) is 0.094mohm (±20%)
- Maximum RMS current (Irms) is 2A
- Maximum saturation current (Isat) is 2A
- Ferrite core, enamelled copper wire and Sn terminal finish
- Operating temperature range from -40°C to 125°C
- Dimension is 10.2mm x 10mm x 4.8mm
Other details
| Brand | BOURNS |
| Part Number | SRR1050A-470Y |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Enhanced Product Overview EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The SRR1050A-470Y from Bourns is a SRR1050A series SMD shielded power inductor. It is typically used in applications such as driver assistant, infotainment, lighting, DC to DC converters, power supplies.
- Automotive grade AEC-Q200 qualified
- Inductance is 47µH at 1MHz/1V
- Tolerance is ±30%
- DCR (DC resistance of inductor) is 0.094mohm (±20%)
- Maximum RMS current (Irms) is 2A
- Maximum saturation current (Isat) is 2A
- Ferrite core, enamelled copper wire and Sn terminal finish
- Operating temperature range from -40°C to 125°C
- Dimension is 10.2mm x 10mm x 4.8mm
Other details
| Brand | BOURNS |
| Part Number | SRR1050A-470Y |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| Enhanced Product Overview EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
