$0.55
Original: $1.83

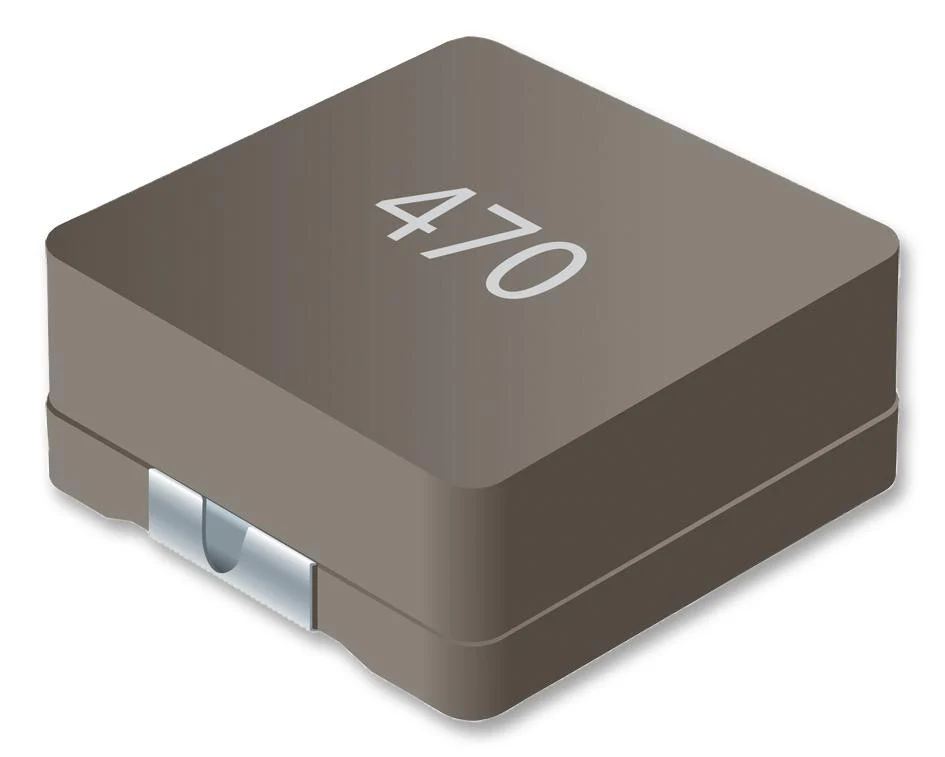

-70%BOURNS SRP6540-1R5M Surface Mount Power Inductor, SRP6540 Series, 1.5 µH, 11 A, 11 A, Shielded, 0.01 ohm—
$1.83
$0.55The Story
This is a Surface Mount Power Inductor, SRP6540 Series, 1.5 µH, 11 A, 11 A, Shielded, 0.01 ohm product from BOURNS with the model number SRP6540-1R5M
Product details
| Inductance Tolerance | ± 20% |
| RMS Current (Irms) | 11A |
| Saturation Current (Isat) | 11A |
| Power Inductor Case | 7.2mm x 6.5mm x 4mm |
| Inductance | 1.5µH |
| Inductor Construction | Shielded |
| Product Range | SRP6540 Series |
| DC Resistance Max | 0.01ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRP6540-1R5M |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
This is a Surface Mount Power Inductor, SRP6540 Series, 1.5 µH, 11 A, 11 A, Shielded, 0.01 ohm product from BOURNS with the model number SRP6540-1R5M
Product details
| Inductance Tolerance | ± 20% |
| RMS Current (Irms) | 11A |
| Saturation Current (Isat) | 11A |
| Power Inductor Case | 7.2mm x 6.5mm x 4mm |
| Inductance | 1.5µH |
| Inductor Construction | Shielded |
| Product Range | SRP6540 Series |
| DC Resistance Max | 0.01ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRP6540-1R5M |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
