$0.33
Original: $1.09

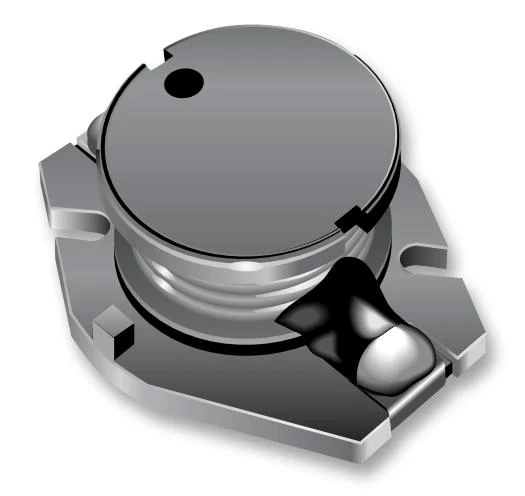

-70%Bourns SDR1005-151KL Power Inductor (SMD) 150 µH 800 mA Unshielded 1 A SDR1005 Series 12.7mm x 10mm 5mm—
$1.09
$0.33The Story
This is a Power Inductor (SMD), 150 µH, 800 mA, Unshielded, 1 A, SDR1005 Series, 12.7mm x 10mm x 5mm product from BOURNS with the model number SDR1005-151KL
Product details
| Inductance | 150µH |
| RMS Current (Irms) | 800mA |
| Inductor Construction | Unshielded |
| Saturation Current (Isat) | 1A |
| Product Range | SDR1005 Series |
| Power Inductor Case | 12.7mm x 10mm x 5mm |
| DC Resistance Max | 0.59ohm |
| Inductance Tolerance | ± 10% |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | BOURNS |
| Part Number | SDR1005-151KL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
This is a Power Inductor (SMD), 150 µH, 800 mA, Unshielded, 1 A, SDR1005 Series, 12.7mm x 10mm x 5mm product from BOURNS with the model number SDR1005-151KL
Product details
| Inductance | 150µH |
| RMS Current (Irms) | 800mA |
| Inductor Construction | Unshielded |
| Saturation Current (Isat) | 1A |
| Product Range | SDR1005 Series |
| Power Inductor Case | 12.7mm x 10mm x 5mm |
| DC Resistance Max | 0.59ohm |
| Inductance Tolerance | ± 10% |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | BOURNS |
| Part Number | SDR1005-151KL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
