-70%Bourns MOV-10D201KTR TVS Varistor 130 V 170 MOV-10DxxxK Series 340 Disc 10mm Metal Oxide (MOV)—
$0.33
$0.10The Story

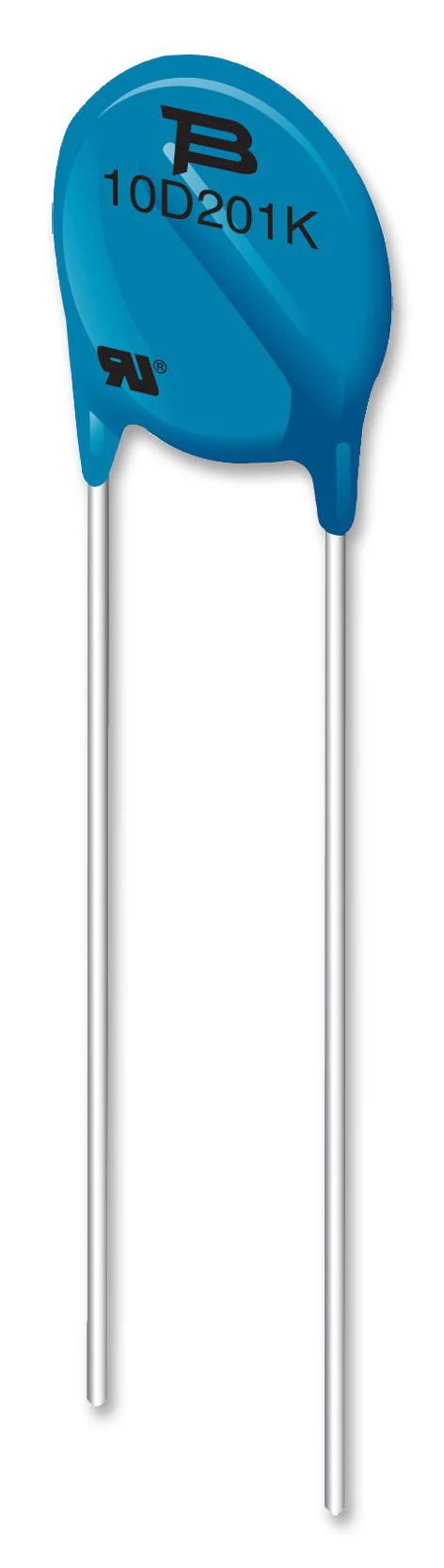

This is a TVS Varistor, 130 V, 170 V, MOV-10DxxxK Series, 340 V, Disc 10mm, Metal Oxide Varistor (MOV) product from BOURNS with the model number MOV-10D201KTR
Product details
| Voltage Rating VAC | 130V |
| Voltage Rating V DC | 170V |
| Product Range | MOV-10DxxxK Series |
| Clamping Voltage Vc Max | 340V |
| Varistor Case Style | Disc 10mm |
| Varistor Type | Metal Oxide Varistor (MOV) |
| Peak Surge Current @ 8/20µs | 2.5kA |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Peak Energy (10/1000uS) | - |
| Automotive Qualification Standard | - |
Other details
| Brand | BOURNS |
| Part Number | MOV-10D201KTR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
