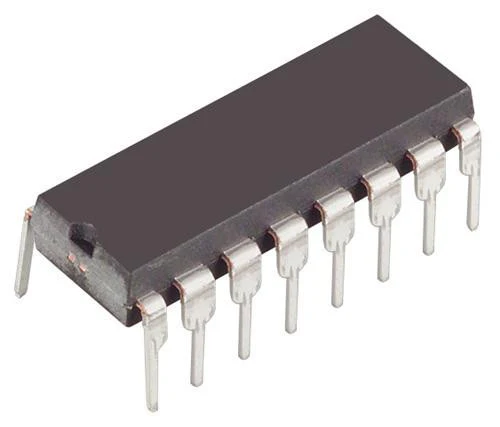

-70%BOURNS 4116R-1-102LF Fixed Network Resistor, 1 kohm, 100 V, 8 Elements, Isolated, DIP, 250 mW—
$4.63
$1.39The Story
The 4116R-1-102LF is a Bussed Resistor Network compatible with automatic insertion equipment. This 4100R series thick film low profile molded DIP comes with a Novolac epoxy body and solder coated copper lead-frame.
- Isolated electrical version
- 10000MR Minimum insulation resistance
- 200VRMS Dielectric withstanding voltage
- UL94V-0 Flammability rating
- -55 to 125�C Operating temperature range
Applications
Aerospace, Defence, Military, Signal Processing
Product details
| Resistance | 1kohm |
| Resistor Case Style | DIP |
| Voltage Rating | 100V |
| No. of Pins | 16Pins |
| Resistance Tolerance | � 2% |
| Product Range | 4116R Series |
| Automotive Qualification Standard | - |
| Power Rating per Element | 250mW |
| Temperature Coefficient | � 100ppm/�C |
| Network Circuit Type | Isolated |
| No. of Elements | 8Elements |
Other details
| Brand | BOURNS |
| Part Number | 4116R-1-102LF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
