$0.66
Original: $2.19

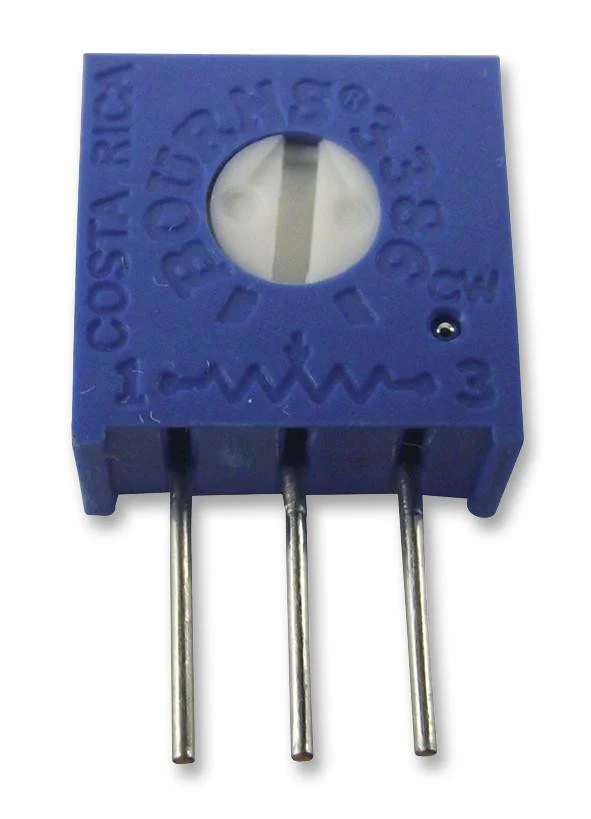

-70%BOURNS 3386W-1-103LF Trimmer Potentiometer, 10 kohm, 500 mW, � 10%, Trimpot 3386 Series, 1 Turns, Through Hole—
$2.19
$0.66The Story
The Bourns Trimpot 3386 series are cermet, through hole trimming potentiometers. These potentiometers are single turn which performs a variety of circuit adjustments in all types of electronic equipment.
- 3/8inch square potentiometer
- Top adjust type (F,G,K,P,R,U,V,Y) or side adjust type (B,C,J,X,H,S,W)
- Resistance value ranges from 10 ohm to 2Mohm
- �10% tolerance
- Temperature coefficient TCR of �100ppm/�C
- Operating temperature range -55�C to +125�C
- Power rating is 0.5W
- Rotational life of 200 cycles
- Available with a knob for finger adjust
- Available with extended shaft and cross slot rotor
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Temperature Coefficient | � 100ppm/�C |
| Power Rating | 500mW |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Through Hole |
| Automotive Qualification Standard | - |
| Resistance Tolerance | � 10% |
| Product Range | Trimpot 3386 Series |
| Track Resistance | 10kohm |
| MSL | - |
Other details
| Brand | BOURNS |
| Part Number | 3386W-1-103LF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
