$3,933.71
Original: $13,112.37

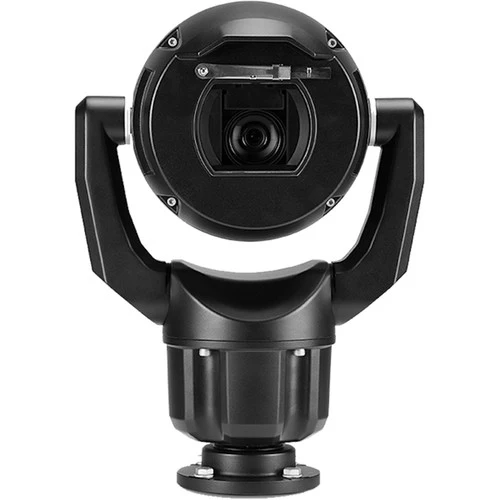

-70%Bosch MIC IP starlight 7100i 2MP Outdoor PTZ Network Camera with 6.6-198mm Lens (Black)—
$13,112.37
$3,933.71The Story
Bosch MIC-7522-Z30 Overview
See more in mission-critical surveillance applications with the black MIC IP starlight 7100i 2MP Outdoor PTZ Network Camera from Bosch. Featuring a 1/2" 2MP CMOS sensor and a 6.6-198mm motorized zoom lens, the camera captures video at resolutions up to 1920 x 1080 at 60 fps in a 58.3 to 2.1° field of view. The camera delivers color video in lighting conditions as low as 0.0047 lux and uses an automatic IR cut filter to switch from color to B&W for day/night functionality.
An integrated high-speed pan/tilt system provides 360° continuous panning and 290° tilting at up to 120° and 90° per second, respectively. Housed in an IP68- and IK10-rated enclosure , the camera is suitable for use in vandal-prone outdoor locations. Audio input and output ports allow for two-way talk . ONVIF compliance ensures compatibility with a wide range of surveillance devices.
Starlight technology for color video down to 0.0047 lux
Automatic IR cut filter for day/night functionality
120 dB wide dynamic range for clear images in scenes with even sharp lighting contrasts
Automatic gain control
Horizontal and vertical aperture correction
Backlight compensation
Auto/manual white balance
Defog functionality
322 individually configurable privacy masks
Ruggedized, direct-drive pan & tilt system
360° continuous pan and 290° tilt at up to 120° per second and 90° per second respectively
256 PTZ presets with up to 20 characters per title
Up to two custom tours, each up to 30 minutes
Snap to zoom�drawing a box in the image triggers the camera to zoom to the correct position
Closed-loop positioning system allows the camera to maintain its position under even continuous vibration or after extreme shock without need for homing or pre-position calibration
Built-in Camera Trainer enables "training" the camera to recognize user-specified target objects, moving and non-moving, to alert operators of unusual scene activity (free-of-charge license is required to activate Camera Trainer program)
Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
24 individually configurable virtual masks for preventing false alarms
Dynamic image stabilization
AE Region Mode allows camera to compute the lighting conditions a scene and determine the optimum level of iris, gain, and shutter speed
Focus Region Mode allows focusing on a specified area of the scene
H.265 and H.264 video compression for efficient storage and bandwidth use
Quad streaming allows camera to deliver independent, configurable streams for live viewing, recording, or remote monitoring
Intelligent dynamic noise reduction technology
Bosch Video Recording Manager application
Intelligent video analytics including multiple-line crossing, loitering, idle/removed object detection, crowd density estimation, and occupancy/people counting�object filters based on size, speed, direction, aspect ratio, and color can be defined
Simplified calibration mode reduces installation time
Video analytics software simplifies setup by preset default values for various applications
Three-level password protection
Data security features include 802.1x network authentication, HTTPS, TLS 1.2, and EAP/TLS protocols, Embedded Login Firewall, and onboard Trusted Platform Module (TPM) and Public Key Infrastructure support
AES encryption with 256-bit keys
System administrators can seal the camera configuration
ONVIF Profiles S and G compliant
For H.265, the camera also supports Media Service 2, which is part of ONVIF Profile T
Camera can be mounted in upright, inverted, or canted orientation
On-site canting functionality lets installers tilt down the upper section of the camera at a 35° angle to see the scene directly below the camera
Built-in sensors for advanced diagnostics detect events such as low voltage, high/low temperature, high humidity, and high vibration� warnings are displayed on the camera's OSD
Meets HALT (highly accelerated life testing) standards
Anodized metal body engineered to withstand high-impact, low-frequency vibration
IP68 rated for outdoor operation in even harsh weather conditions
O-ring seals protect the internal components from the external environment
IK10-rated vandal and impact resistance
Complies with IEC 60068 standard for resistance to vibration and shock
Tested for 2000 hours for salt spray per ISO 12944-6: C5-M (high)
Corrosion resistant
Suitable for traffic monitoring (bridges, tunnels, highways), perimeter protection, city surveillance, and mining security
DORI Distance
- Detect: 226' to 6873'
- Observe: 89' to 2726'
- Recognize: 46' to 1375'
- Identify: 23' to 689'
UPC: 800549896832
In the Box
- Bosch MIC IP starlight 7100i 2MP Outdoor PTZ Network Camera with 6.6-198mm Lens (Black)
- Limited 3-Year Warranty
Bosch MIC-7522-Z30 Specs
Camera
| Sensor | 2 MP 1/2" CMOS |
| Focal Length | 6.6 to 198mm |
| Maximum Aperture | f/1.5 - f/4.8 |
| Zoom | Optical: 30x Digital: 12x |
| Lens Field of View | Horizontal: 58.3 to 2.1° |
| IR Cut Filter | Mechanical |
| Day/Night | True |
| Minimum Illumination | Color: 0.0047 Lux B&W: 0.0013 Lux |
| Shutter Speed | 1/10,000 to 1 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 310° |
Video
| Streaming Resolution | 1920 x 1080 at 60 fps (4.5 Mb/s H.264) 1920 x 1080 at 60 fps (3.4 Mb/s H.265) |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 4 Streams |
| Automatic Gain Control | Yes |
Audio
| Streaming | Two-Way |
| Audio Formats | AAC, G.711, L16 |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, Password Protection |
| Supported Protocols | 3DES, APIPA, ARP, CHAP, DDNS, DES, DHCP, DNS, DiffServ, DynDNS, FTP, GB28181, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SNTP, SOAP, SSL/TLS, TCP, UDP, UPnP, iSCSI |
System Integration
| Application Programming Interface (API) | ONVIF Profiles S and G ONVIF Profile T: GB/T 2818 APIPA |
| Analytics | Crossing Line, Entering Field, Leaving Field, Loitering, Following Route, Idle Object, Removed Object, Counter, Occupancy, Crowd Detection, Condition Change, Similarity Search, Tampering, Crowd Density, People Counting, Traffic Monitoring (Wrong Way Detection, Pedestrian Detection, Slow Vehicles, Stopped Vehicles, Dropped Objects) |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
Environmental
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Startup Temperature | -40°F / -40°C |
| Storage Temperature | -49 to 158°F / -45 to 70°C |
| Operating Humidity | 0 to 100% |
| IP Rating | IP68 |
| IK Rating | IK10 |
General
| Pan/Tilt | None |
| I/O Connections | 1 x RJ45 1 x Power |
| Supported Languages | Czech Dutch English French German Italian Japanese Polish Portuguese Russian Spanish Traditional Chinese |
| Certifications | EAC, RCM, RoHS, UL, WEEE, as per Manufacturer |
| Internal Storage | None |
| Power Source | AC |
| Power Consumption | 40 W |
| Material of Construction | Aluminum |
| Dimensions | H: 15.8 x W: 11.3 x L: 8.3" / H: 400.3 x W: 287.9 x L: 210.6 mm |
| Weight | 19.18 lb / 8.7 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
