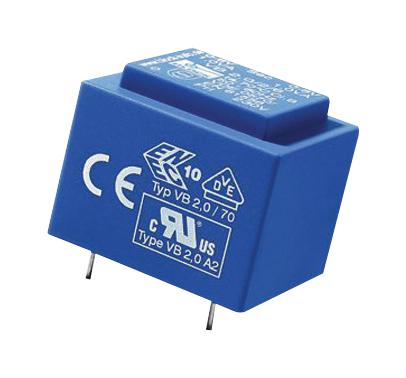

BLOCK VB 2,0/2/6 PCB Transformer, Encapsulated Safety Isolating, 230V, 2 x 6V, 2 VA, 50Hz to 60Hz—
$13.58
The Story
VB 2,0/2/6 is a VB series short-circuit proof PCB, safety isolating transformer designed for the safe electrical separation of the input and output circuits according to EN (IEC) 61558-2-6. It features permanent corrosion protection, high insulation value, and maximum electrical reliability thanks to XtraDenseFill resin encapsulation. Suitable applications are as a mains transformer for adjustment of the voltage and simple electrical isolation. As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
- Rated input voltage is 230VACÂ
- Rated output voltage is 2 X 6VAC
- Rated power is 2VA
- Minimum size at high output
- Inherently short circuit proof transformer
- With double or single output voltage
- Self-extinguishing potting material
- For high ambient temperatures
- Rated frequency range from 50 to 60Hz
- cURus, VDE approved
Product details
| PCB Transformer Type: Encapsulated Safety Isolating |
| Primary Voltages: 230V |
| Secondary Voltages: 2 x 6V |
| Power Rating: 2VA |
| Frequency Range: 50Hz to 60Hz |
| Winding Type: Single Primary, Dual Secondary |
| Current Rating: - |
| Isolation Voltage: - |
| Transformer Mounting: Through Hole |
| Product Range: VB Series |
Other details
| Brand | BLOCK |
| Part Number | VB 2,0/2/6 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
